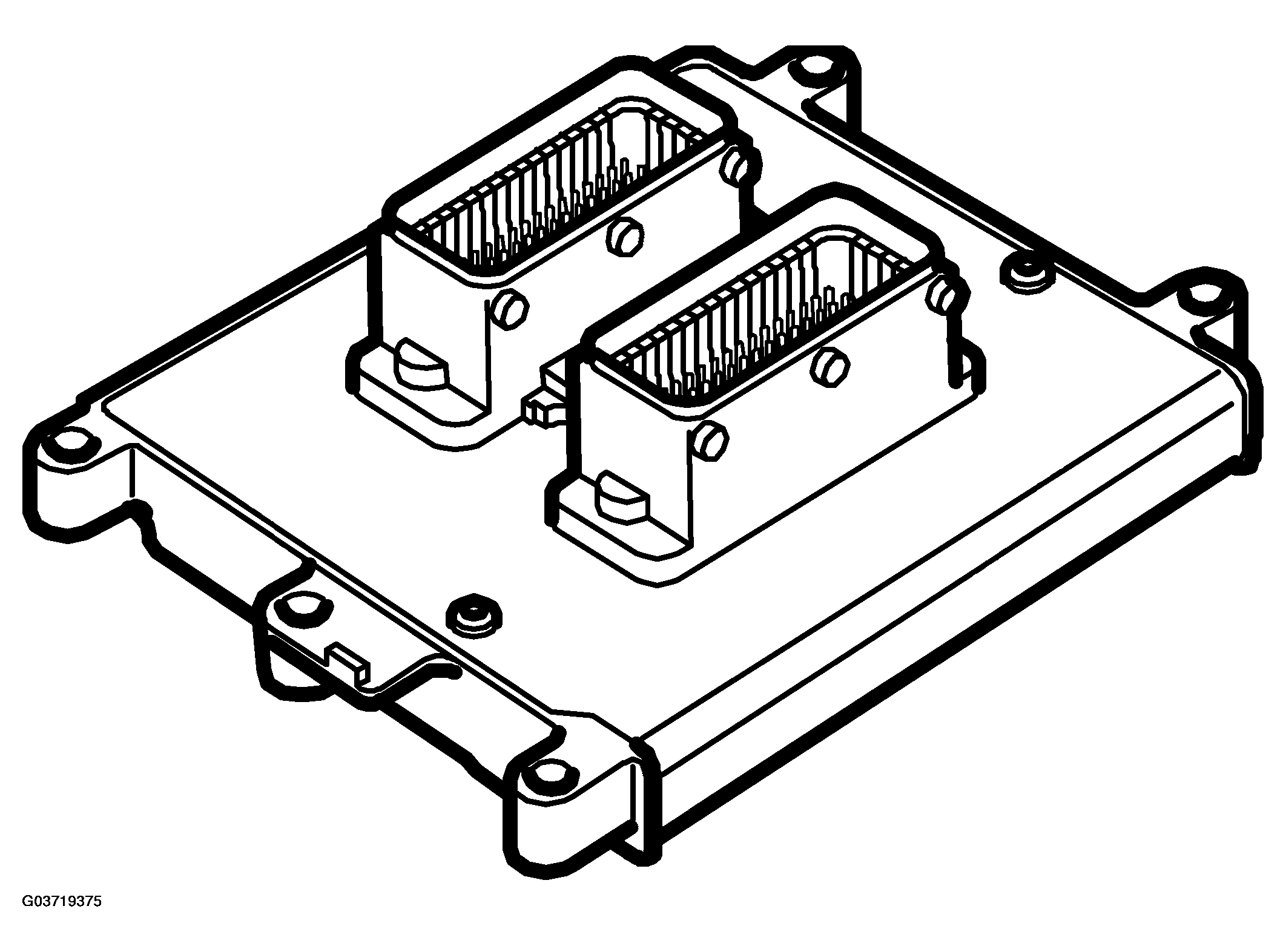

Control module, Trionic T8 (589)
Courtesy of SAAB-SCANIA OF AMERICA, INC. TRIONIC CONTROL MODULE SPEECHIFICATION
| No. of pins |
|
A=64
B=64 |
| Power supply, (+30 circuit) |
Pin no. |
3(A), 20(A)0 |
| Power supply (+15 circuit) |
Pin no. |
2(A), 19(A) |
| Power supply from main relay |
Pin no. |
48(A), 64(A) |
| Power ground |
Pin no. |
47(A), 57(A), 60(A) and 63(A) |
| P-bus + |
Pin no. |
5(A) |
| P-bus - |
Pin no. |
6(A) |
