ESP control module (671)

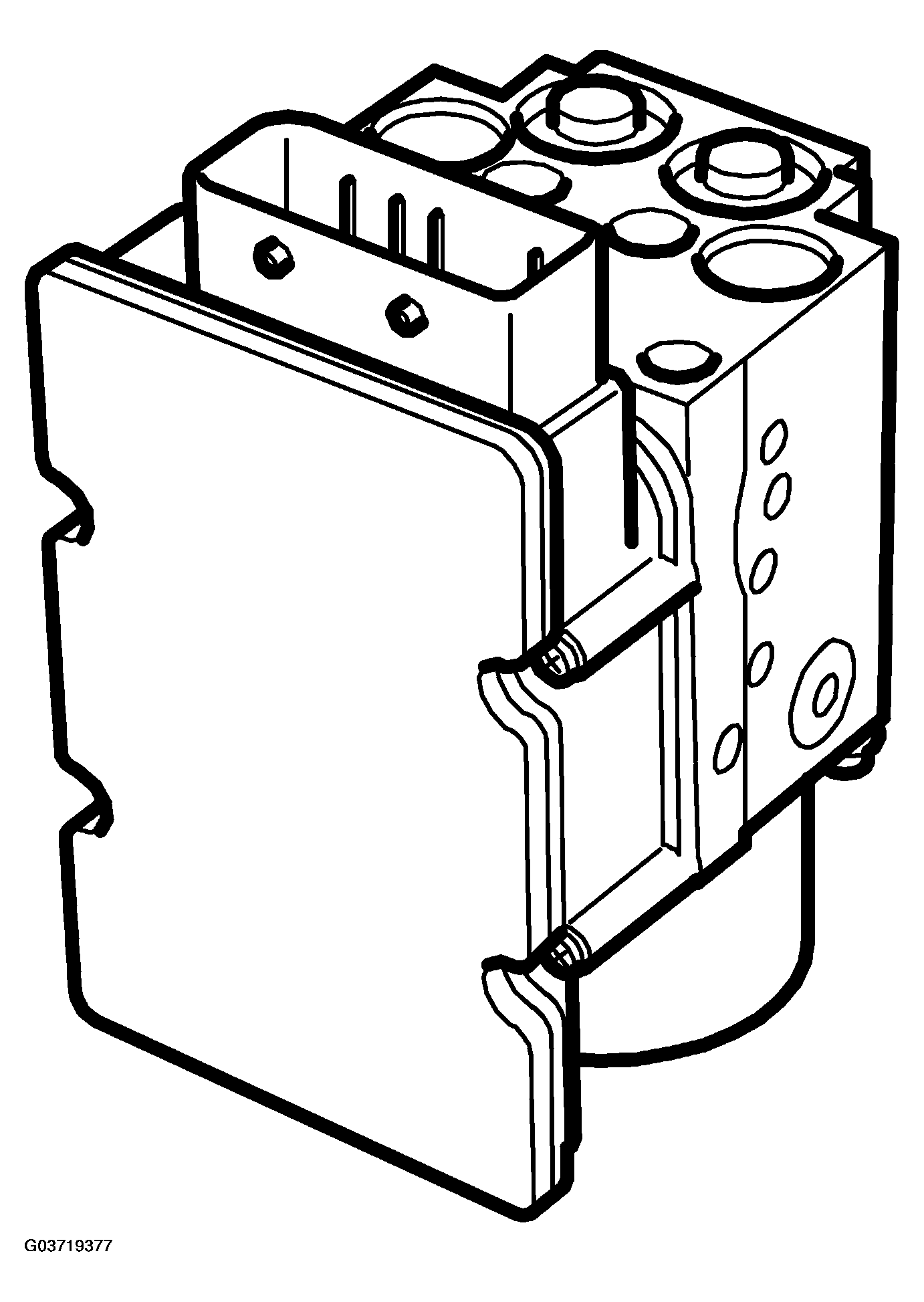

Fig 1: ESP Control Module
G03719377Courtesy of SAAB-SCANIA OF AMERICA, INC.
ESP CONTROL MODULE SPECIFICATION

Control valves inlet 4
  outlet 4
  pressure increase 2
  pressure relief 2
Brake pressure sensor   1
Pump Type Eccentric-plunger pump
  Max pressure 160 bar
