Radiator fan relay unit (706b), Z18XE: Notes

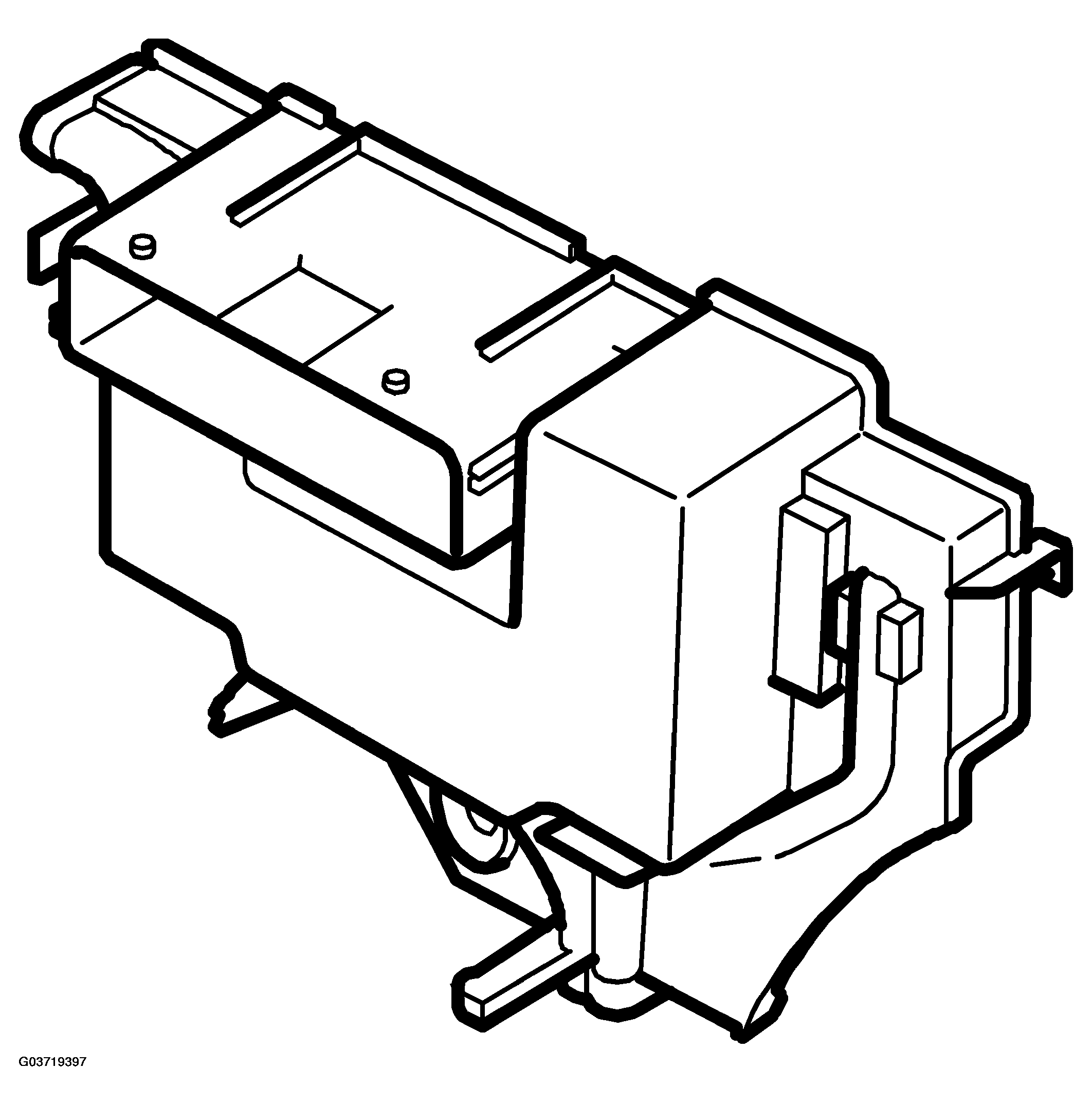

Fig 1: Identifying Radiator Fan Relay Unit
G03719397Courtesy of SAAB-SCANIA OF AMERICA, INC.
SUPPLY VOLTAGE SPECIFICATION

Supply voltage 12V
Maximum current take-off 30 A
