Test readings, driver door module, (702D): J2

NOTE: All units on the I and P-buses send signals.

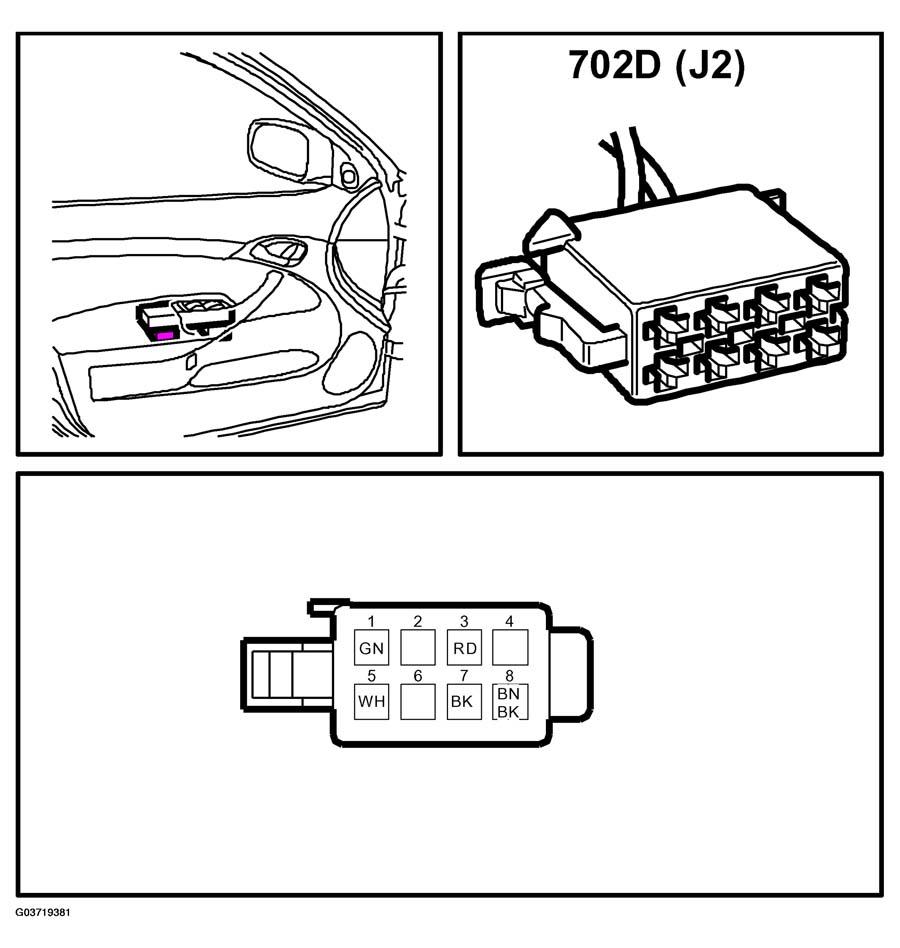

Fig 1: Identifying Control Module Pin Connector Pinouts (J2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

CONTROL MODULE PIN SPECIFICATION

Control module pin	Component/ function	IN/OUT	Test criteria		Measure across	Test reading
1	Window lift, up	IN	Ignition ON	Close window	1-7	B+
2	Not connected
3	+30 voltage	IN	Ignition ON		3-7	B+
4	Not connected
5	Window lift, down	IN	Ignition ON	Open window	5-7	B+
6	Not connected
7	Ground	OUT	Ignition ON		7-3	B+
8	Activation of power mirror heating	OUT	Ignition ON	Mirror heating activated	8-7 8-7	0V B+
