Automatic Climate Control (216): Connection

PIN CONNECTION SPECIFICATION

Pin Signal type Description
15 (K32) Power ground Power supply
16 (K32) +30 Power supply
28(K32) Instrument bus Signal to/from other control modules
29 (K32) Instrument bus Signal to/from other control modules

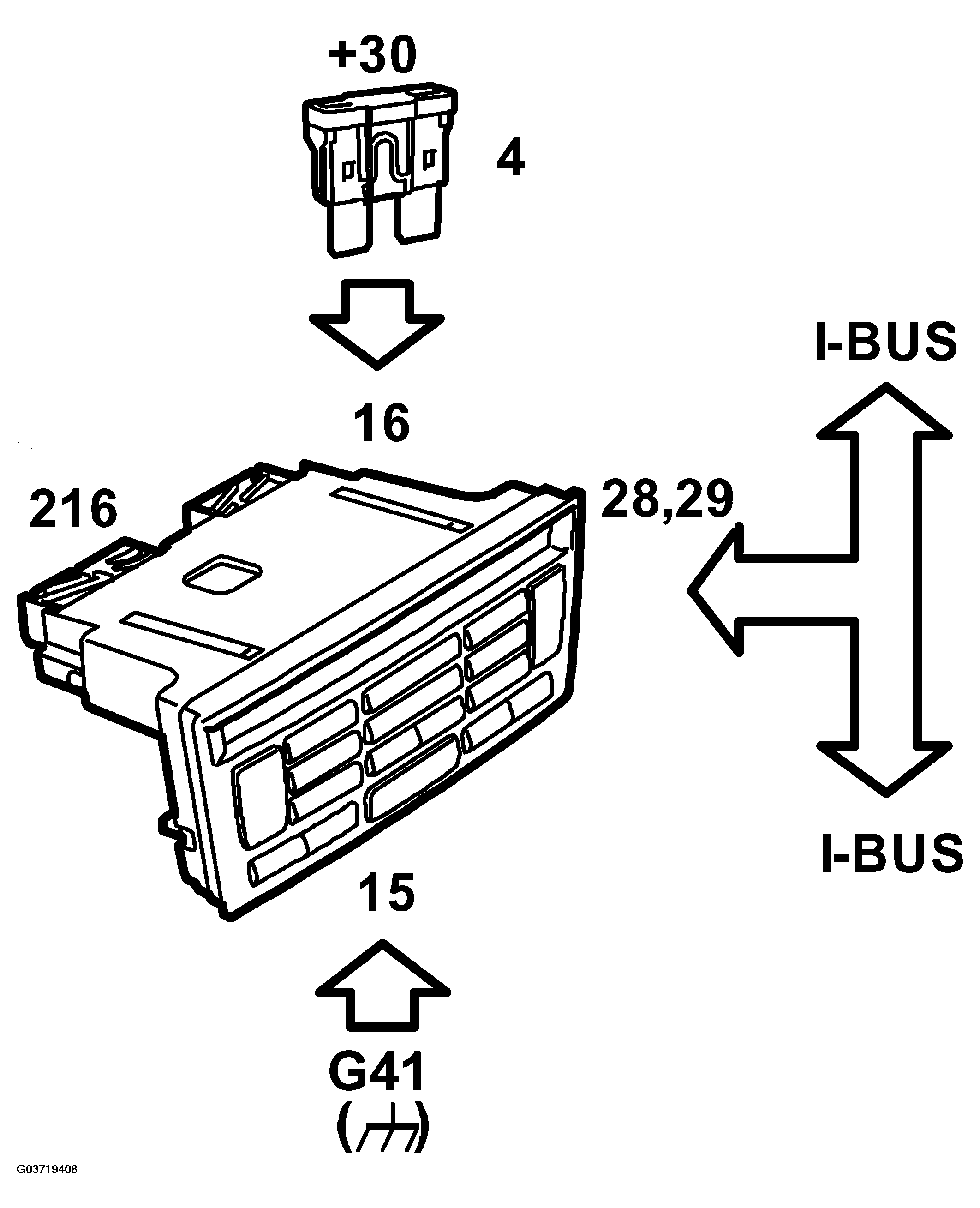

Fig 1: Identifying Automatic Climate Control Communication
G03719408Courtesy of SAAB-SCANIA OF AMERICA, INC.

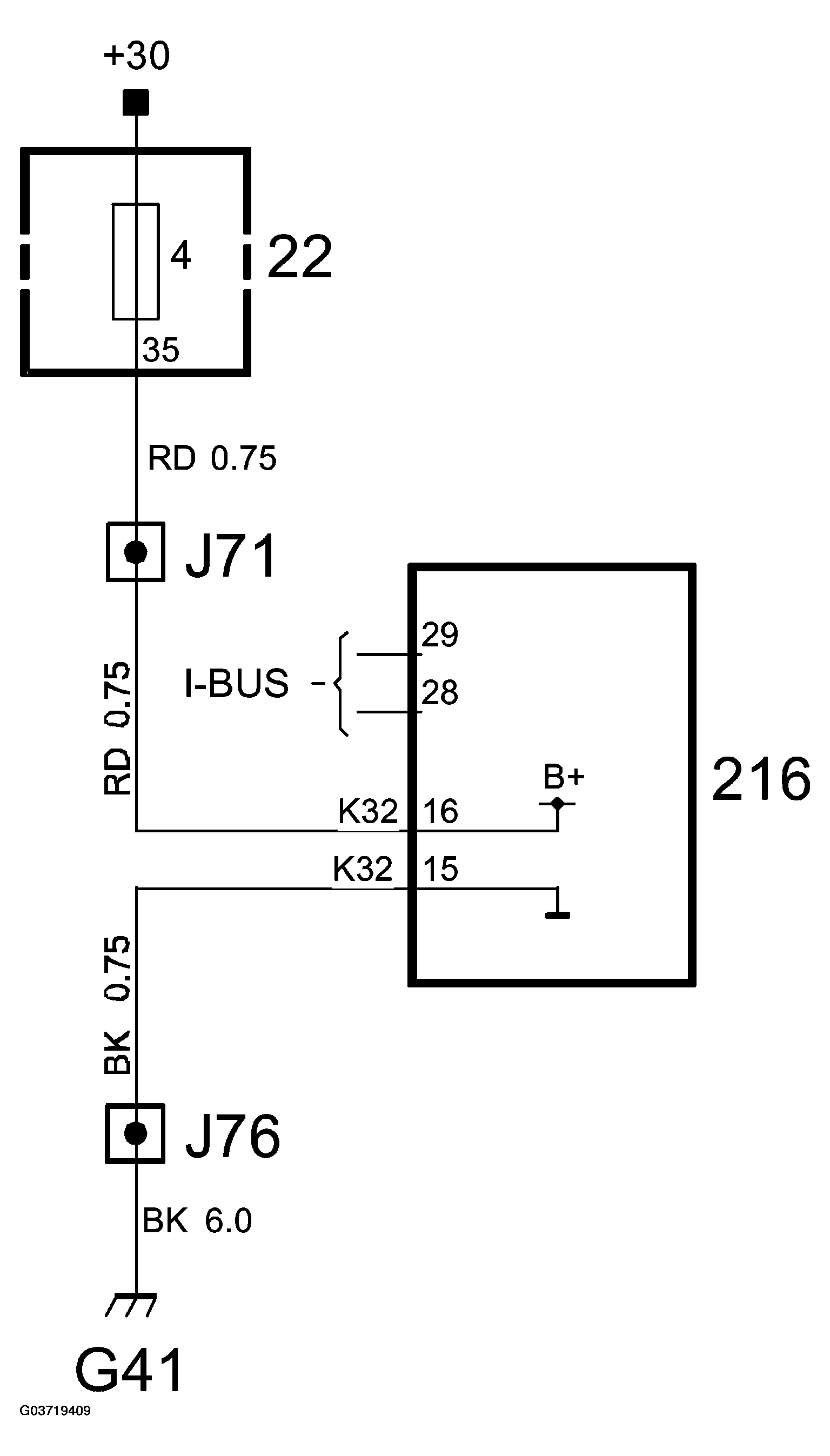

Fig 2: Identifying Automatic Climate Control Wiring Diagram
G03719409Courtesy of SAAB-SCANIA OF AMERICA, INC.
