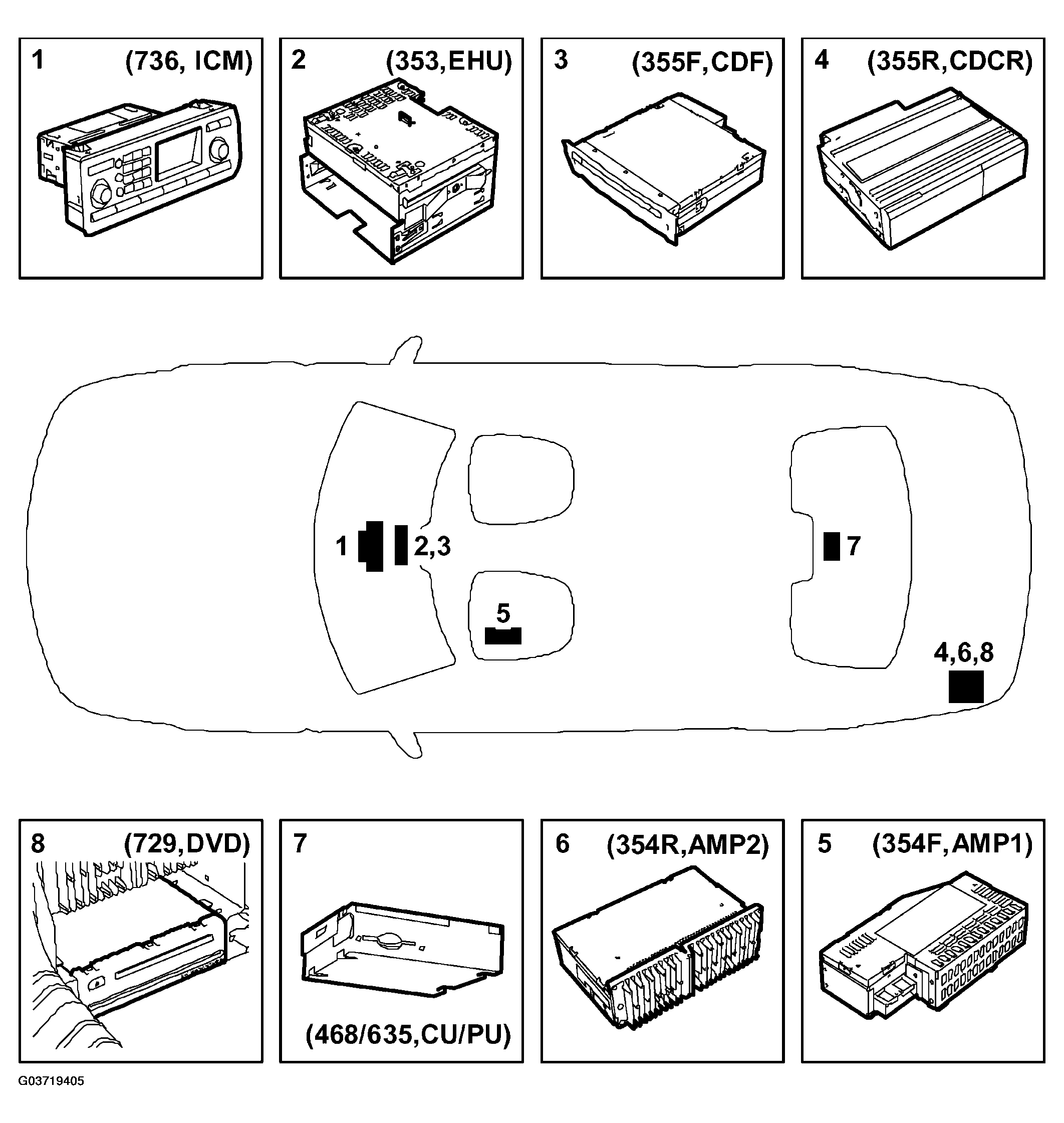

Bus-connected control modules: O-bus
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Infotainment control panel, ICM (736) is located under SID.
- Entertainment Head Unit, EHU (353) is located in the center console.
- Front CD player/changer (355F) is located at the bottom center of the dashboard.
- Front speaker amplifier (354F) is located under the left-hand seat.
- Rear speaker amplifier (354R) is located at the main fuse box in the luggage compartment.
- Telematic unit (468) is located under the parcel shelf.
