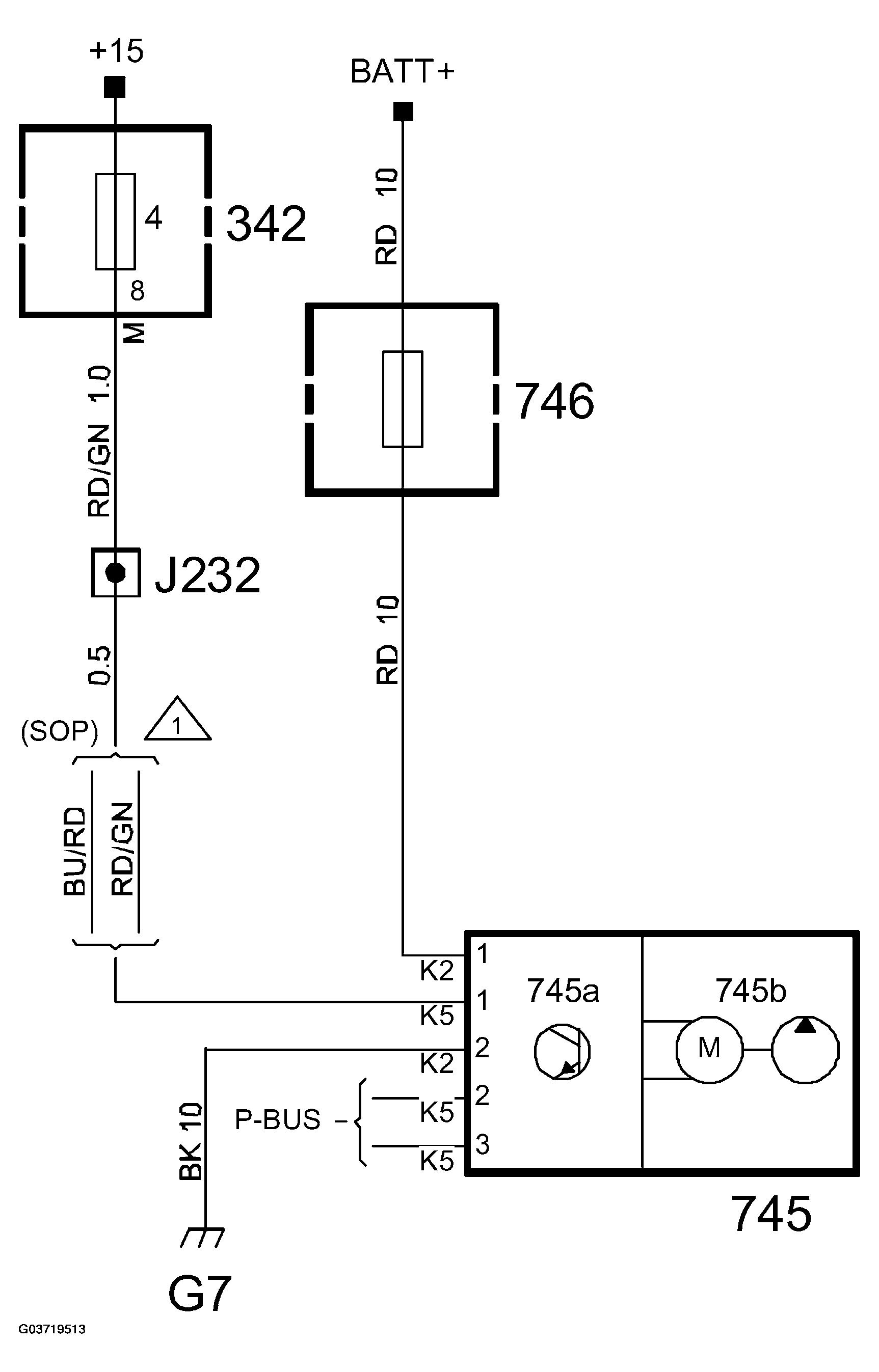

Power steering system unit (745): Connection
PIN SIGNAL TYPE DESCRIPTION
| Pin |
Signal type |
Description |
| 2 (K2) |
Power ground |
Power supply |
| 1(K2) |
+30 |
Power supply |
| 1(K5) |
+15 |
Power supply |
| 2(K5) |
P-bus |
Signal to/from other control modules |
| 3 (K5) |
P-bus |
Signal to/from other control modules |
Courtesy of SAAB-SCANIA OF AMERICA, INC.
