To fit

  1. Fit the spark plugs.

    Tightening torque 20 Nm (15 lbf ft)  .

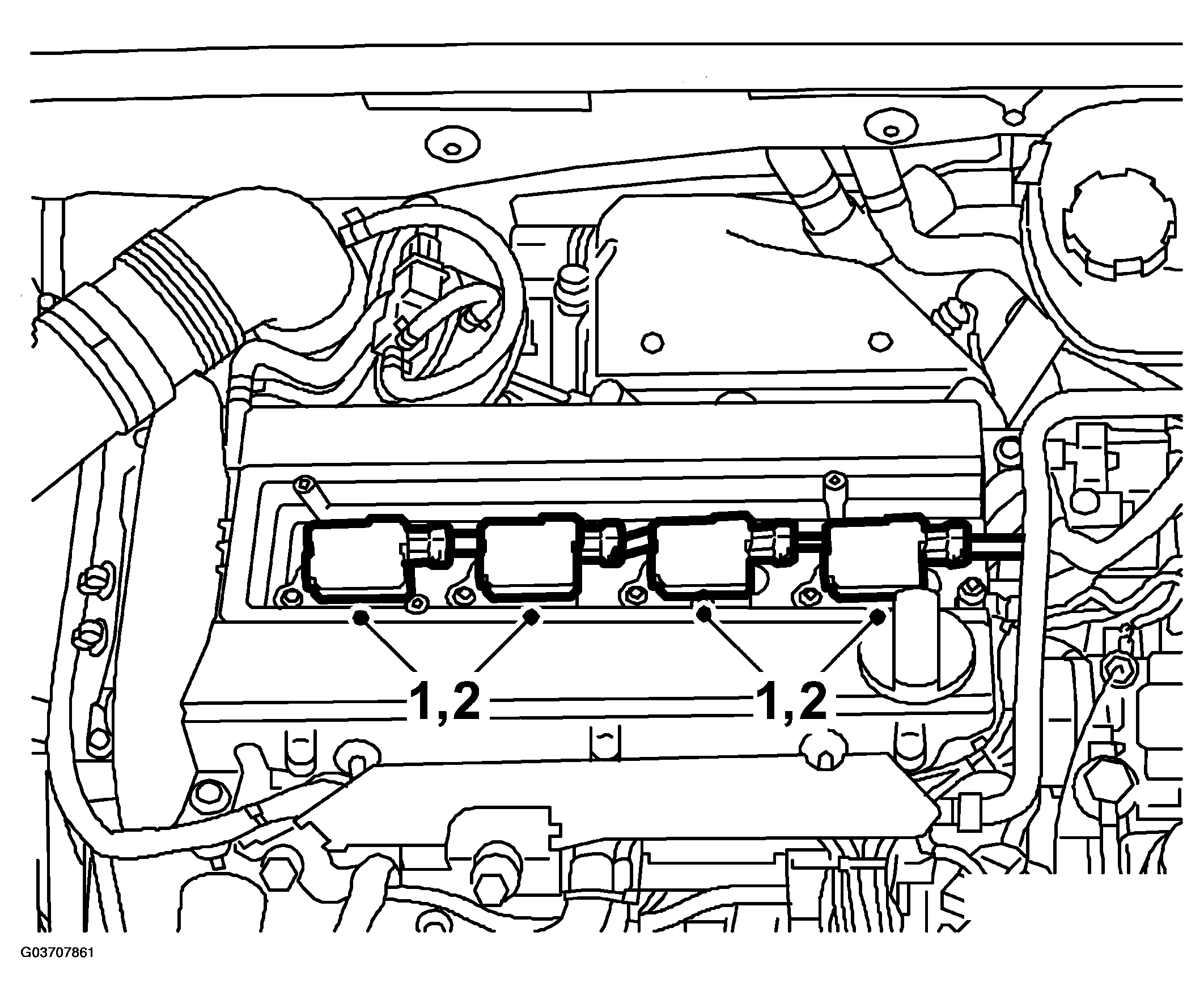

    Fig 1: Illustration For Steps 1, 2
    G03707861Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the ignition coils.

    Tightening torque 8 Nm (6 lbf ft)  .

  3. Fit the cover over the ignition coils.
    Fig 2: Illustration For Steps 3
    G03707862Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the test cable and put back relay no. 8.
