Oil pressure
OIL PRESSURE SPECIFICATIONS

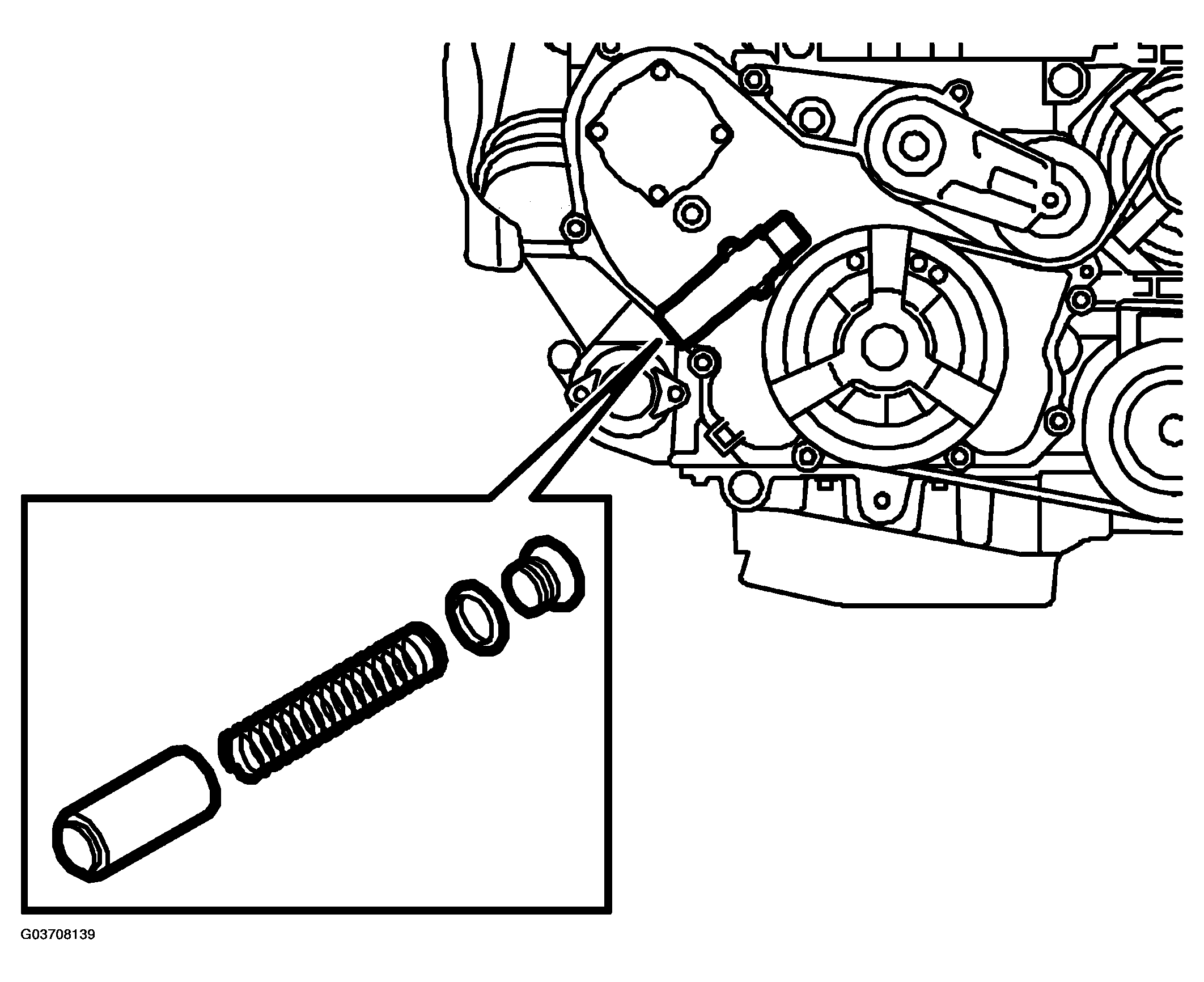

| Oil pump pressure-reducing valve opens at | bar | 5.0 +/-1 |
| Indicator lamp comes on when oil pressure drops below | 0.3 | |
| Oil pressure at 1000 RPM and 5W30 oil, crankcase | 2 (min) | |
| Oil pressure at 1000 RPM and 5W30 oil, cylinder head | 0.8 | |
| Engine oil cooler thermostat opens at | 107 +/-2 | |
| Engine oil cooler thermostat fully open at | 120 |
