Fuel pump module (689): Trionic

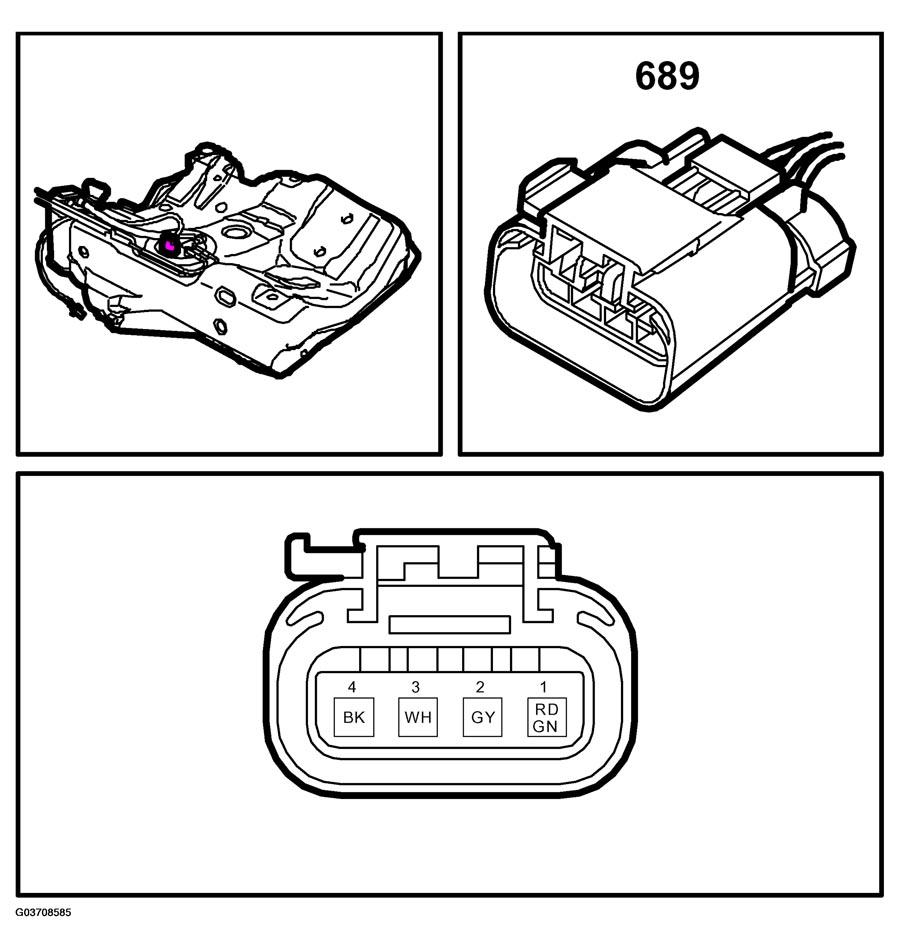

Fig 1: Identifying Fuel Pump Module (689) Connector Pinout (Trionic)
G03708585Courtesy of SAAB-SCANIA OF AMERICA, INC.
