Saab
>>
2004
>>
9-3 Linear, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
TRIONIC T8 Fuel Control System
>>
Component Location
>>
Fuse 2, main fuse box 727
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Fuse 2, main fuse box 727: Notes

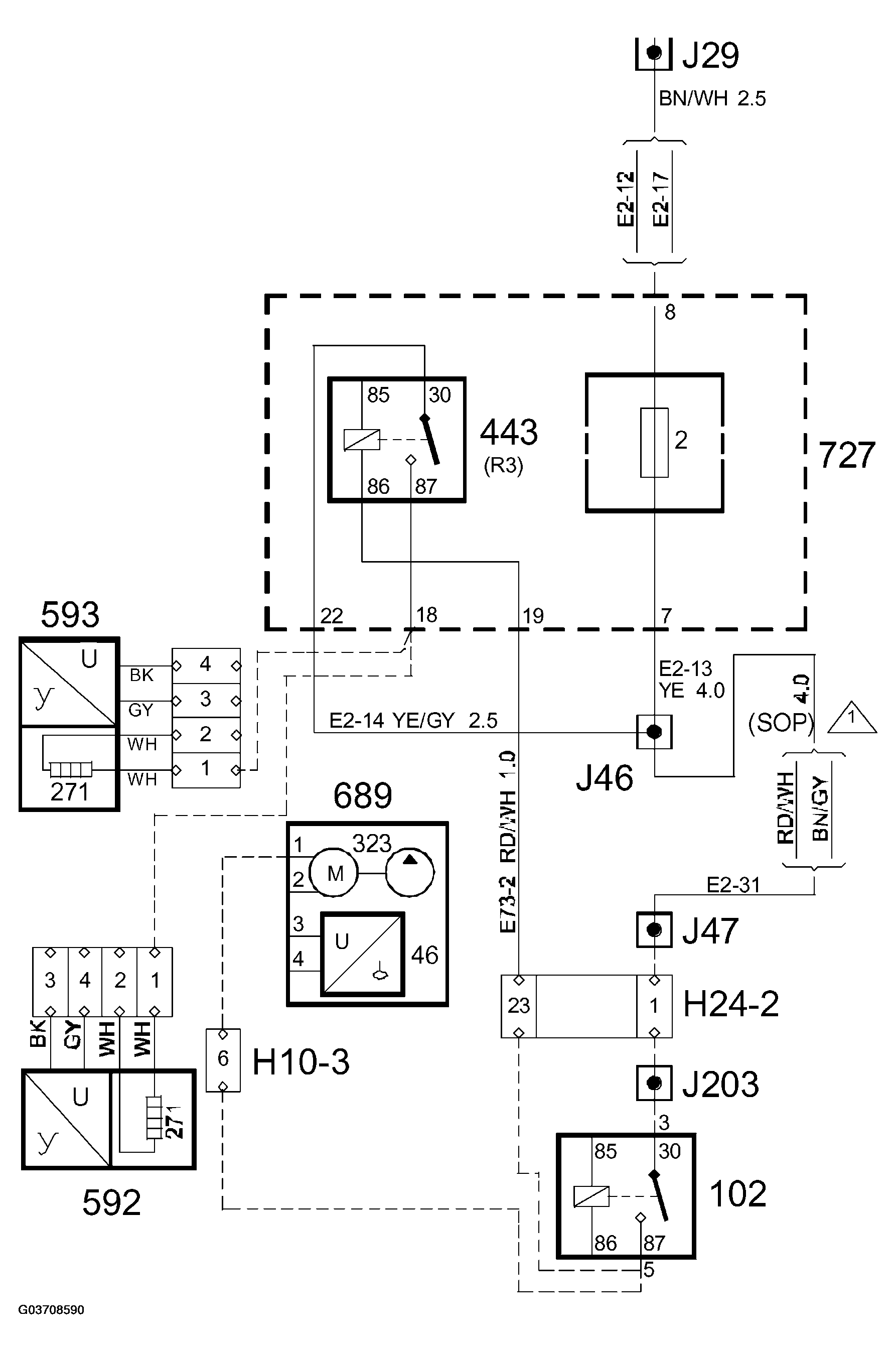

Fig 1: Main Fuse Box 727 Wiring Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
