Connected components

COMPONENT SPECIFICATION

  VIA CRIMP J40, ENGINE HARNESS T8
31 Reversing light switch
170 Compressor, A/C
205 Mass air flow sensor
243 Engine oil level switch
320a Ignition coil with ignition power module, cyl. 1
320b Ignition coil with ignition power module, cyl. 2
320c Ignition coil with ignition power module, cyl. 3
320d Ignition coil with ignition power module, cyl. 4
443 Heated oxygen sensor relay
589A Control module, Trionic, 4-cyl petrol, contact A
740 Ionization Detection Module
  Via  CRIMP CONNECTION J39, ENGINE HARNESS T8   which is connected with crimp connection J40
  Cable screens for cables to 320b and 320d
  Via  CRIMP CONNECTION J44, ENGINE HARNESS T8   which is connected with crimp connection J40
  Cable screens for cables to 320a and 320c

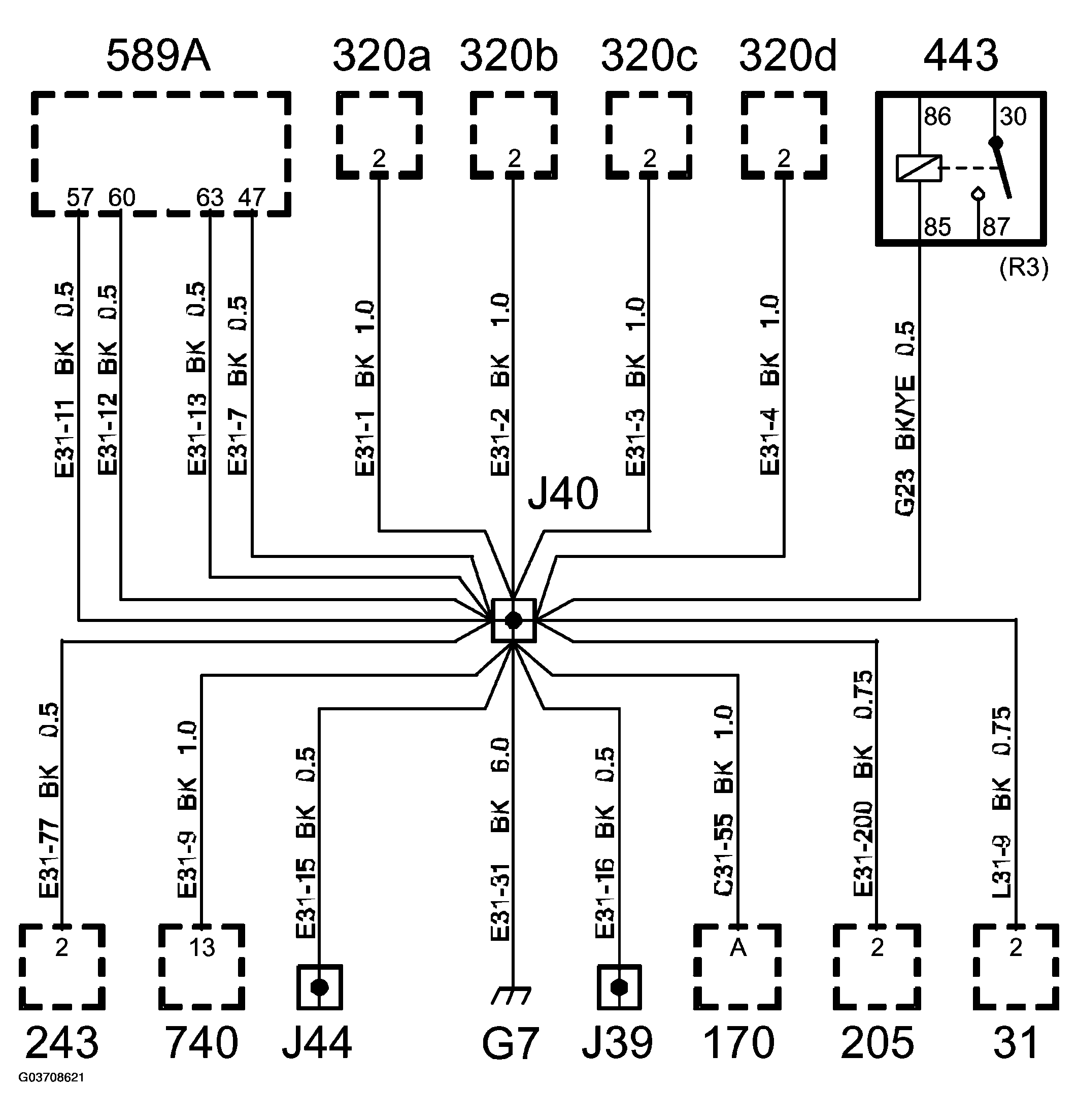

Fig 1: Grounding Point G7 Wiring Diagram
G03708621Courtesy of SAAB-SCANIA OF AMERICA, INC.


COMPONENT SPECIFICATION

1 Battery
705 Control module, Simtec (from attachment lug on control module)
745 Unit, power steering unit
Fig 1: Grounding Point G7 Wiring Diagram
G03708623Courtesy of SAAB-SCANIA OF AMERICA, INC.
