Ignition Switch Module (20): Location:

in the floor console between the front seats

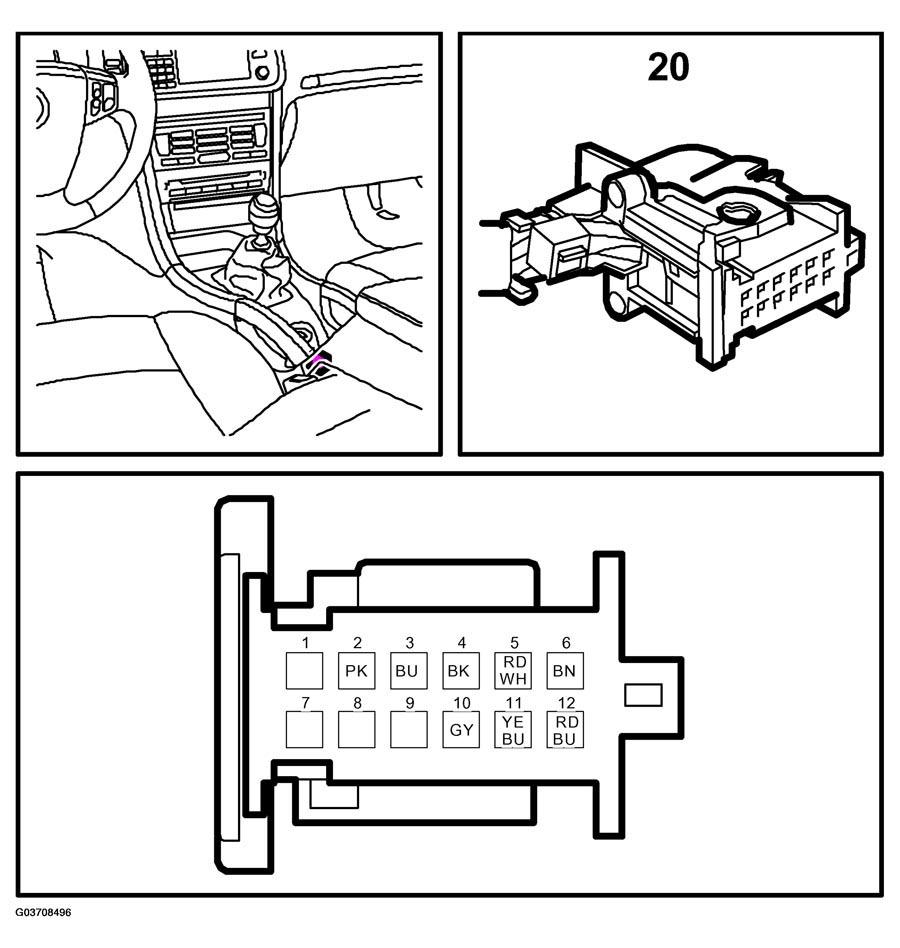

Fig 1: Identifying Ignition Switch Module Connector Pinout
G03708496Courtesy of SAAB-SCANIA OF AMERICA, INC.
