Ionization Detection Module (740): Location:

on the engine's short left side by the vacuum pump

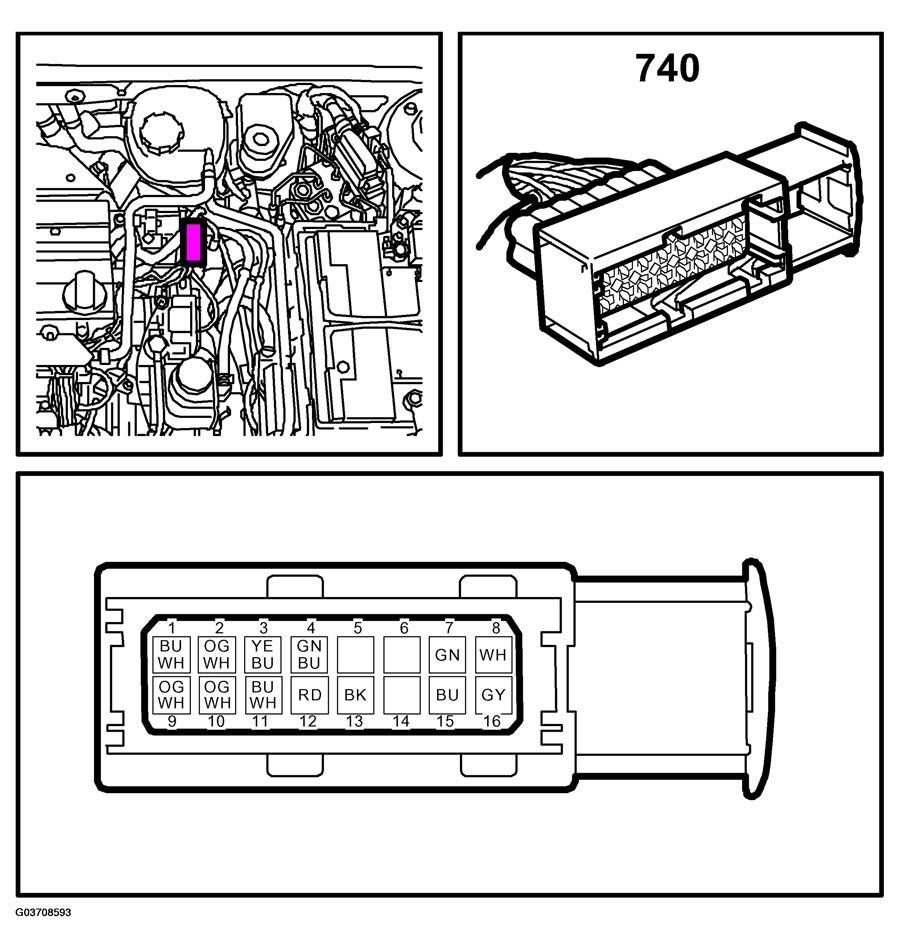

Fig 1: Identifying Ionization Detection Module Connector Pinout (740)
G03708593Courtesy of SAAB-SCANIA OF AMERICA, INC.
