Main relay, engine control system (229): Location:: Simtec

in underhood electrical center 342

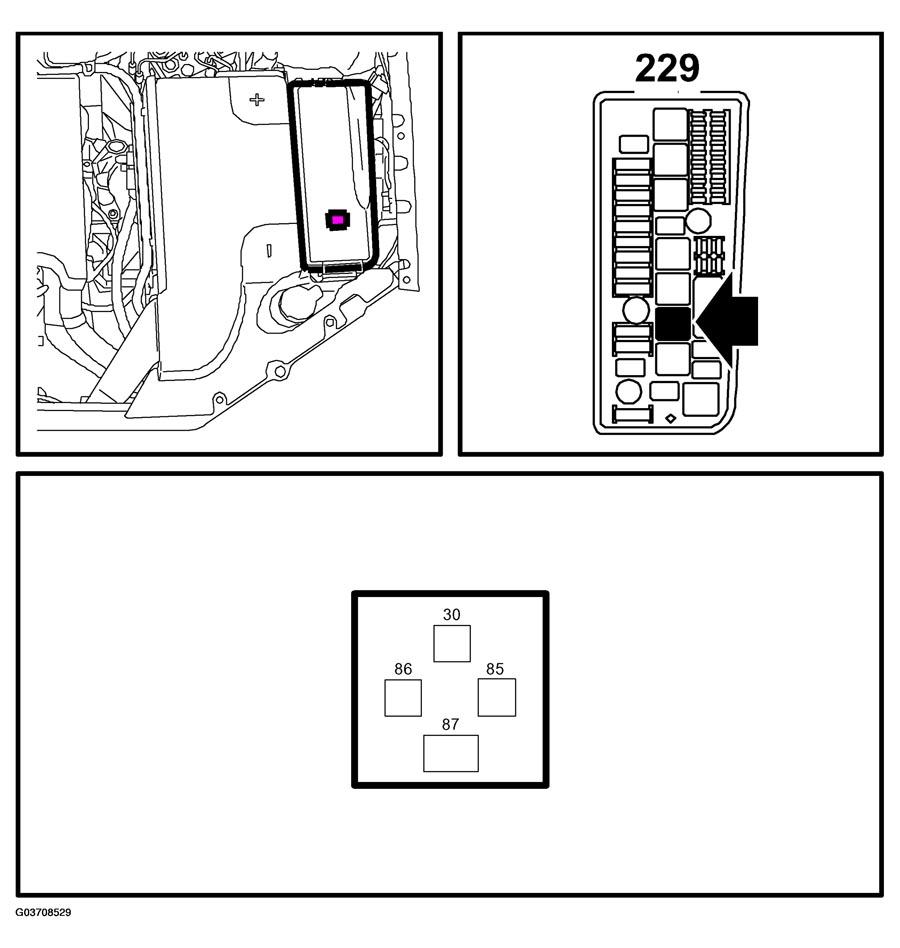

Fig 1: Identifying Engine Control System Main Relay (Simtec)
G03708529Courtesy of SAAB-SCANIA OF AMERICA, INC.
