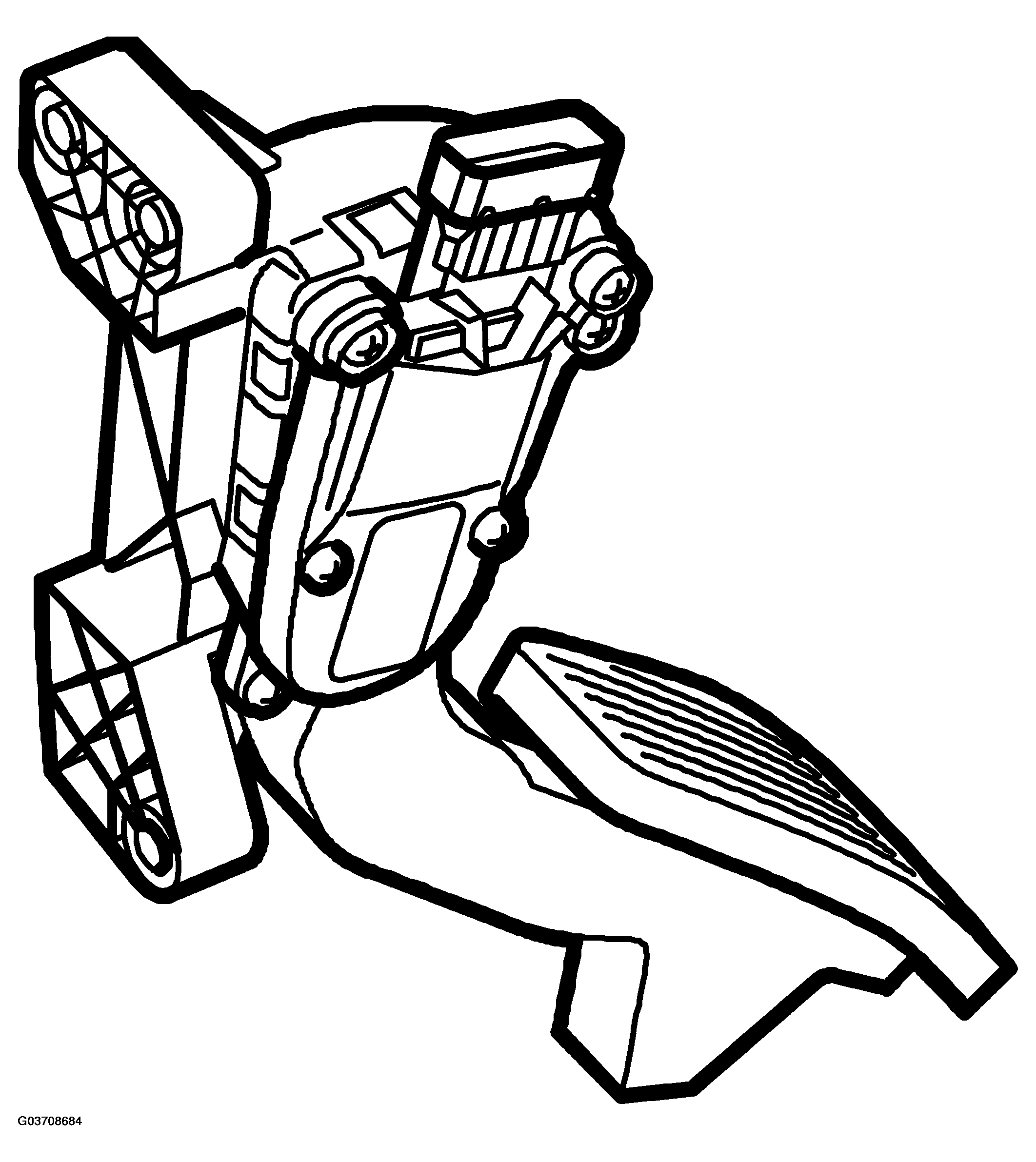

Accelerator position sensor (379)
Courtesy of SAAB-SCANIA OF AMERICA, INC. ACCELERATOR POSITION SENSOR TECHNICAL DATA
| Sensor resistance |
kohm |
P1: 1.2 +/-0.4
P2: 1.7 +/-0.8 |
Power supply
(P1 pin 2, P2 pin 1) |
V |
5,0 |
Signal voltage
(P1 pin 3, P2 pin 6) |
V |
P1: 0--5.0
P2: 0--2.5 |
Ground
(P1 pin 4, P2 pin 5) |
|
|
