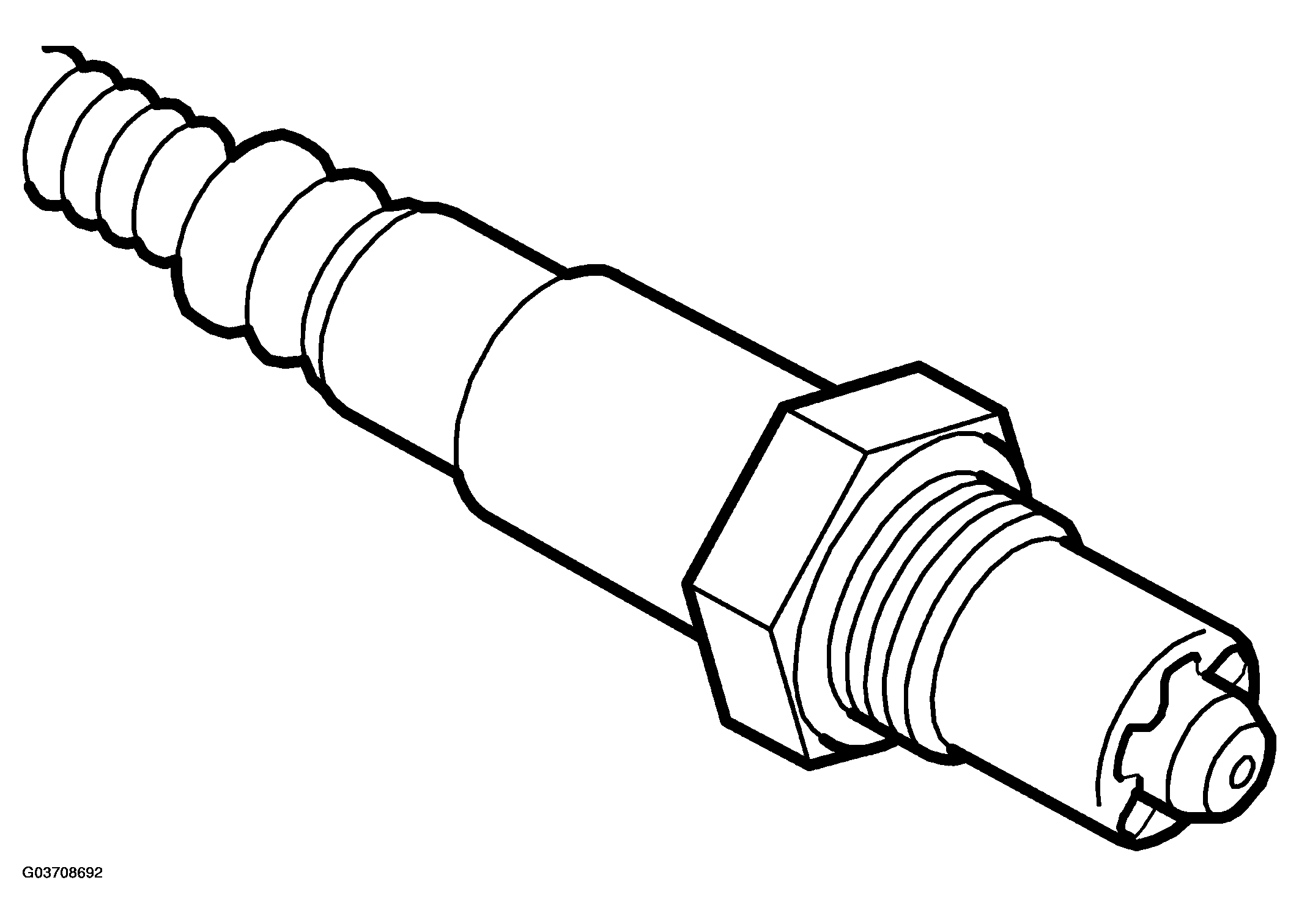

Pre-heated oxygen-sensor, front (592)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC. FRONT PRE-HEATED OXYGEN-SENSOR TECHNICAL DATA
| Type |
|
Bosch LSF 4.7
With electrical preheating |
| Power, preheating |
W |
approx. 7 |

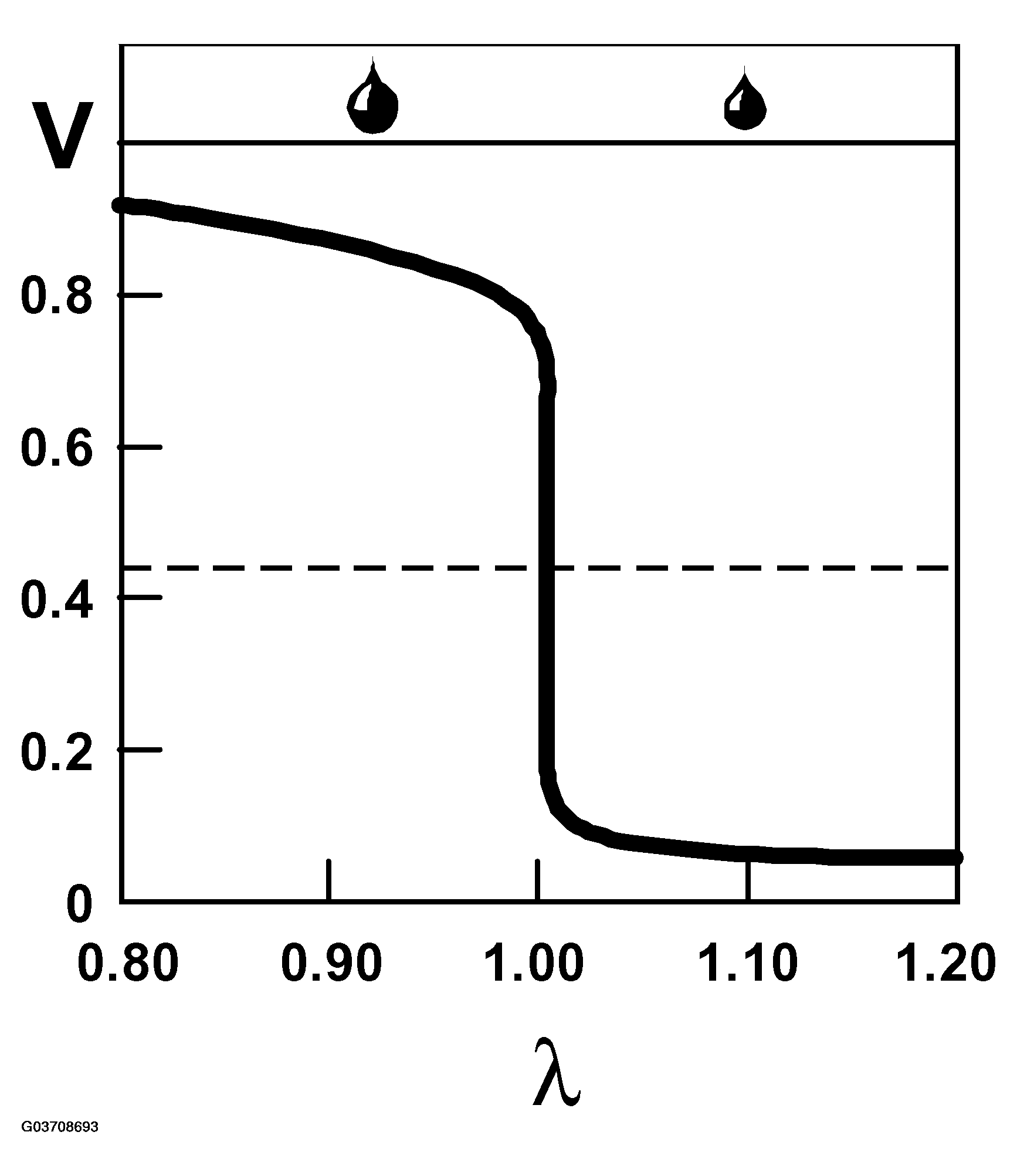

| Control range |
V |
0-1 |
| Resistance at 20°C (68°F) pins 1--2 |
Ohm |
ca 9 (PTC) |
Pins 3 and 4 are gold plated.
NOTE:
The connector must not be treated with any sort of contact cleaner.
