Relay, A/C compressor (156)

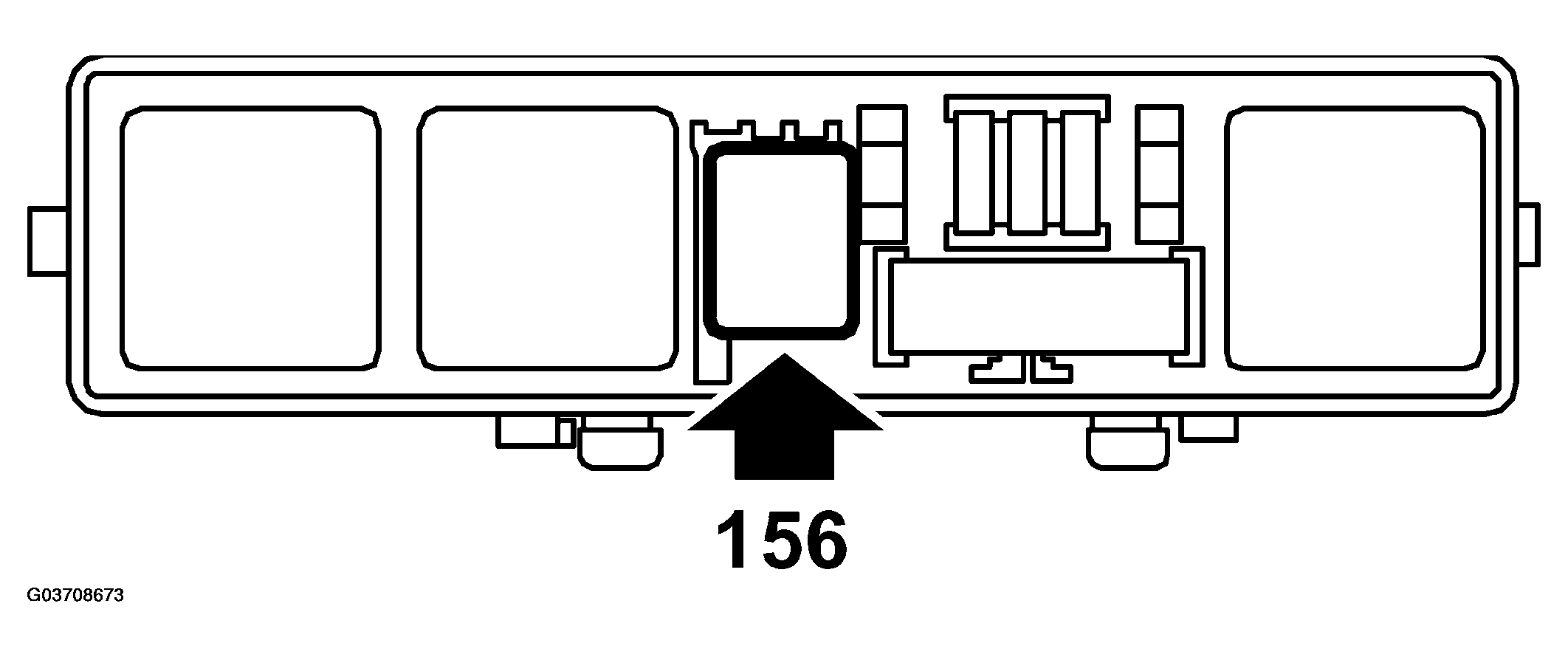

Fig 1: Identifying A/C Compressor Relay
Courtesy of SAAB-SCANIA OF AMERICA, INC.
A/C COMPRESSOR RELAY TECHNICAL DATA
Resistance, winding at 20°C (68°F)
Ohm
85+/-5
Nominal control voltage
V
12
Nominal current
A
30
