Brake light switch (29), T8: Connection
PIN DESCRIPTION
Pin No.
Signal type
Description
1
+30
Power supply from fuse 6.
2
Signal
The pin receives B+ when the brake pedal is depressed. Connected to ECM pin 14(A).

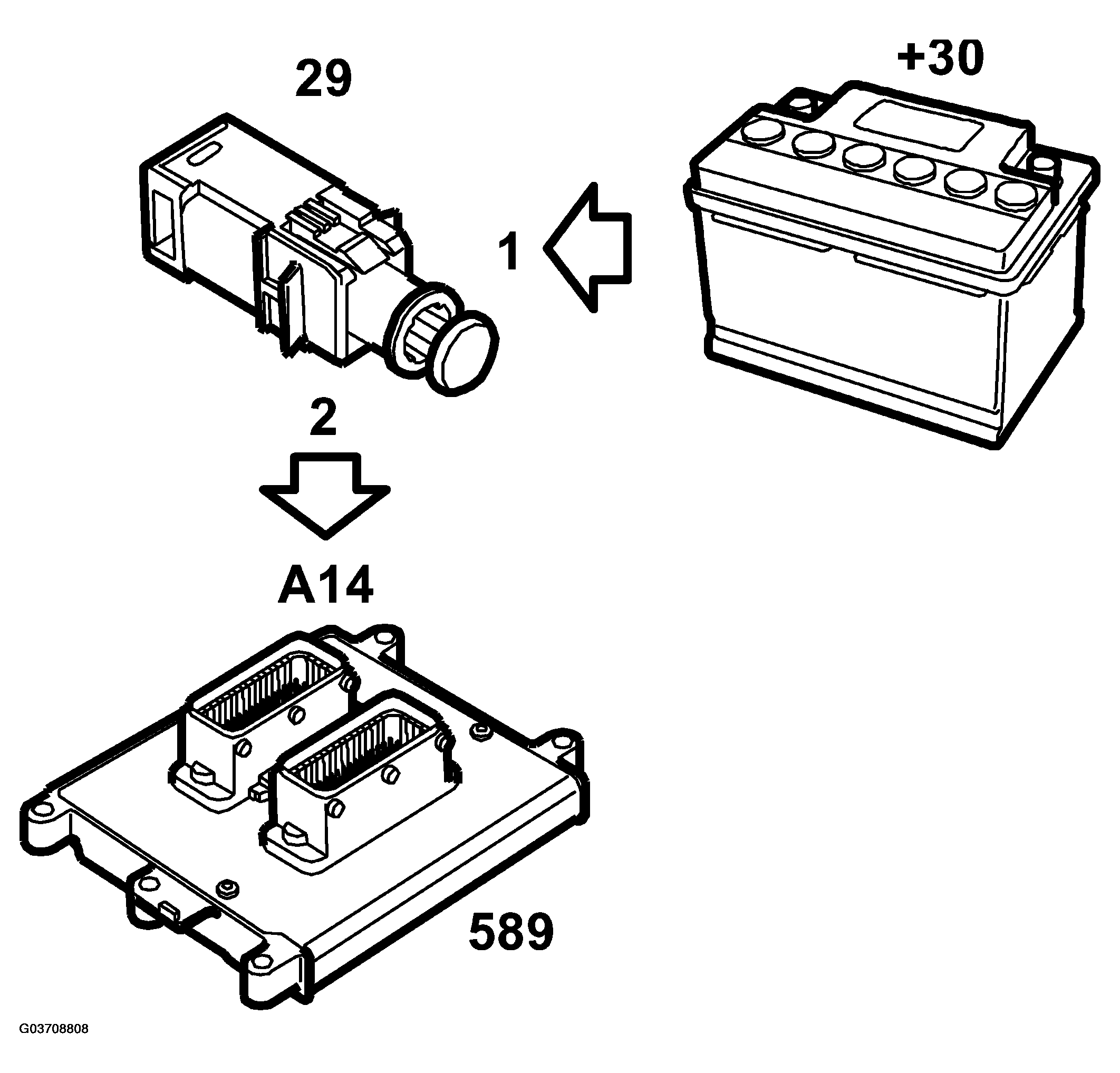

Fig 1: Identifying Ionization Detection Module Functional Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.

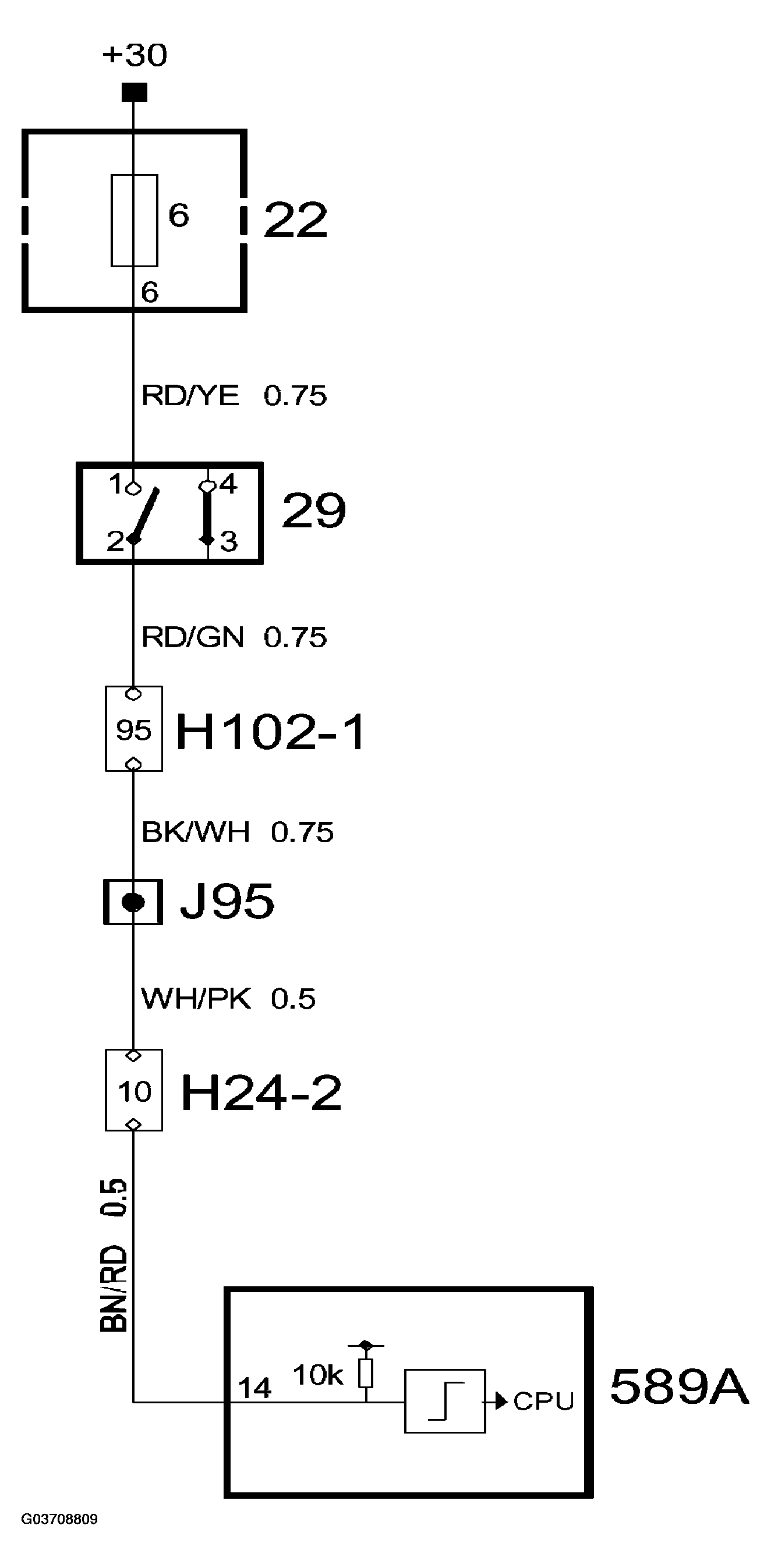

Fig 2: Identifying Ionization Detection Module Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
