Full load enrichment

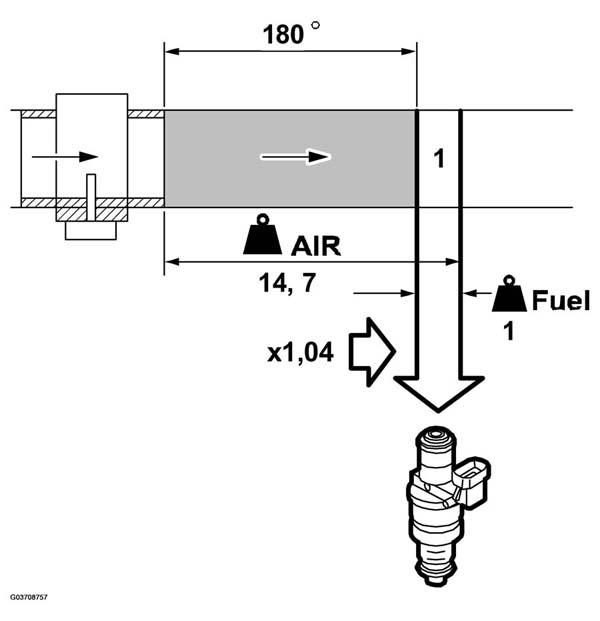

Fig 1: Identifying Basic Fuel Quantity - Full Load Enrichment

Courtesy of SAAB-SCANIA OF AMERICA, INC.

When the engine load and speed has reached a certain limit, the correction factor will gradually increase as the load or engine speed increases further. At the same time, the closed loop will be de-activated (if it was active) as it would otherwise counter-compensate. This is to ensure that all the air is consumed during combustion and to keep the combustion temperature under control. The result is increased engine torque and decreased thermal load.

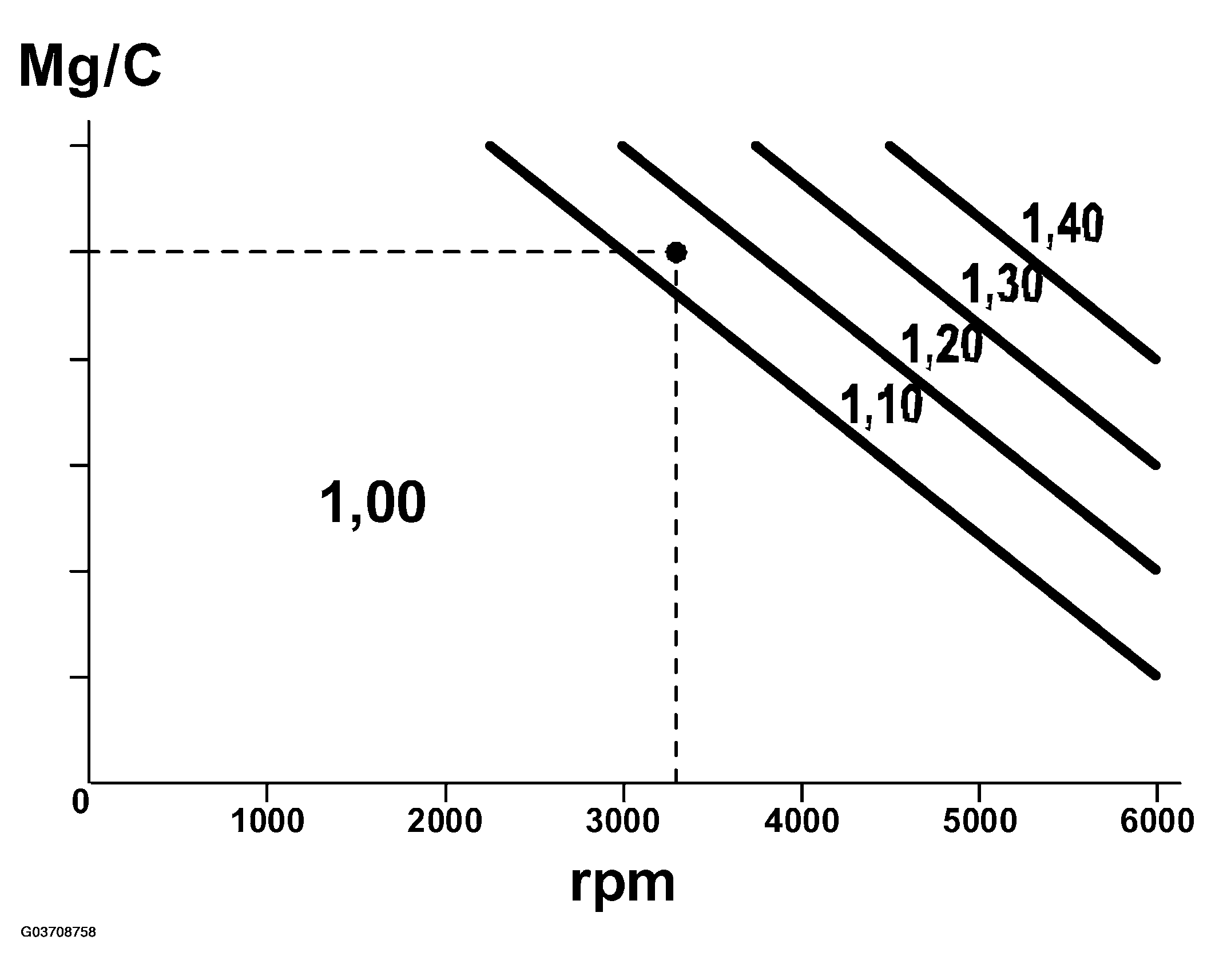

Fig 2: Identifying Basic Fuel Quantity Graph - Full Load Enrichment

Courtesy of SAAB-SCANIA OF AMERICA, INC.
