Technical Description: Injectors: Notes

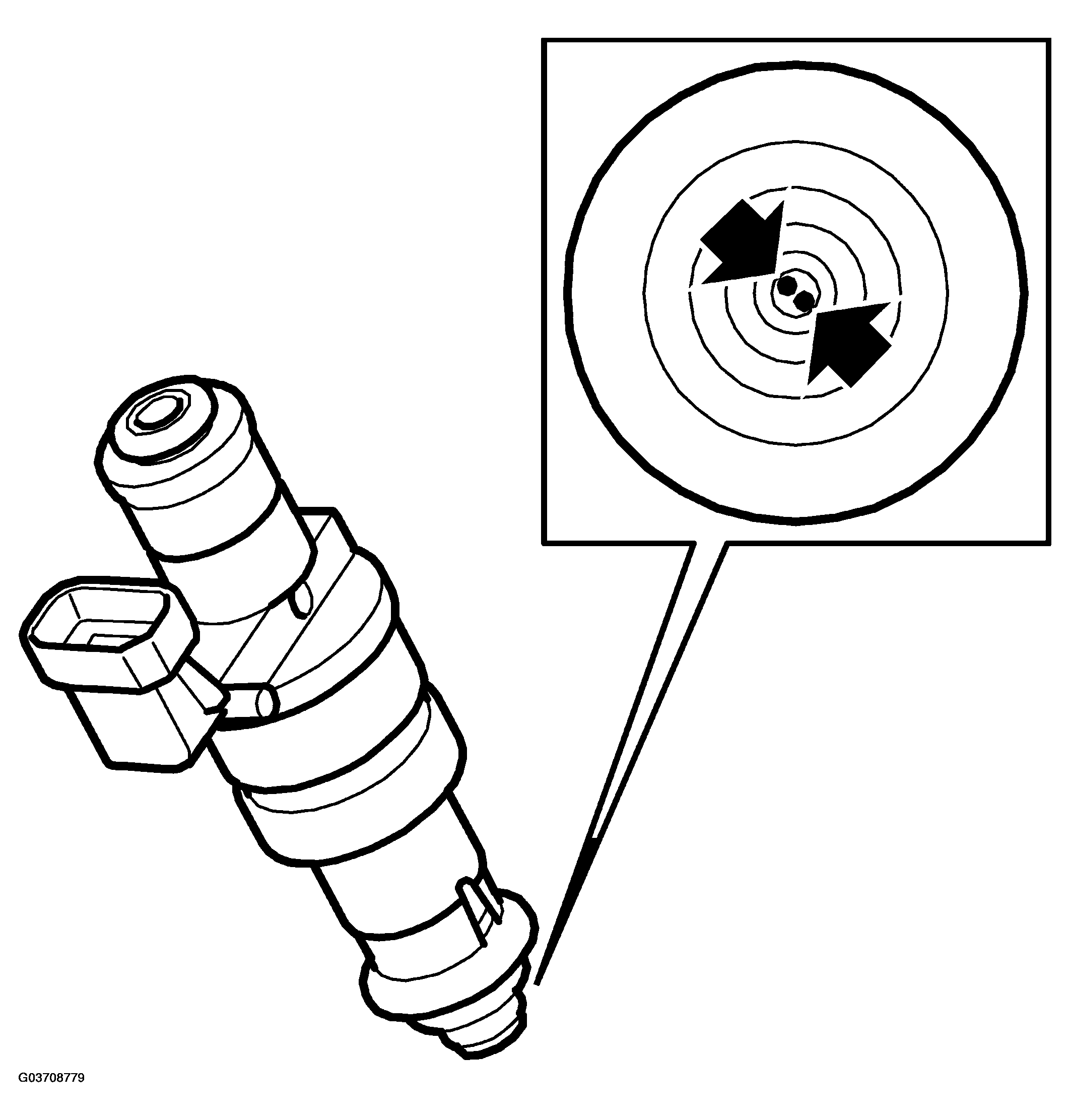

Fig 1: Identifying Injectors

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The injectors are of solenoid type with needle and seat. They open when current flows through the coil and a powerful spring closes them when the current is cut off.

To achieve optimum combustion and thereby cleaner exhaust gases, the injectors have air-flushed jets to give a good distribution of the fuel.

Air is fed to the injectors from a passage in the intake manifold. Air from in front of the throttle is led to the passage via a bypass in the throttle body.

The injectors must not be rotated; the connectors must point straight up. Otherwise, the fuel will hit the walls of the inlet ports and affect emissions and driveability.

The injectors are identical on all 4-cyl engines.

The injectors are supplied with current from the main relay and are grounded by the control module as follows:

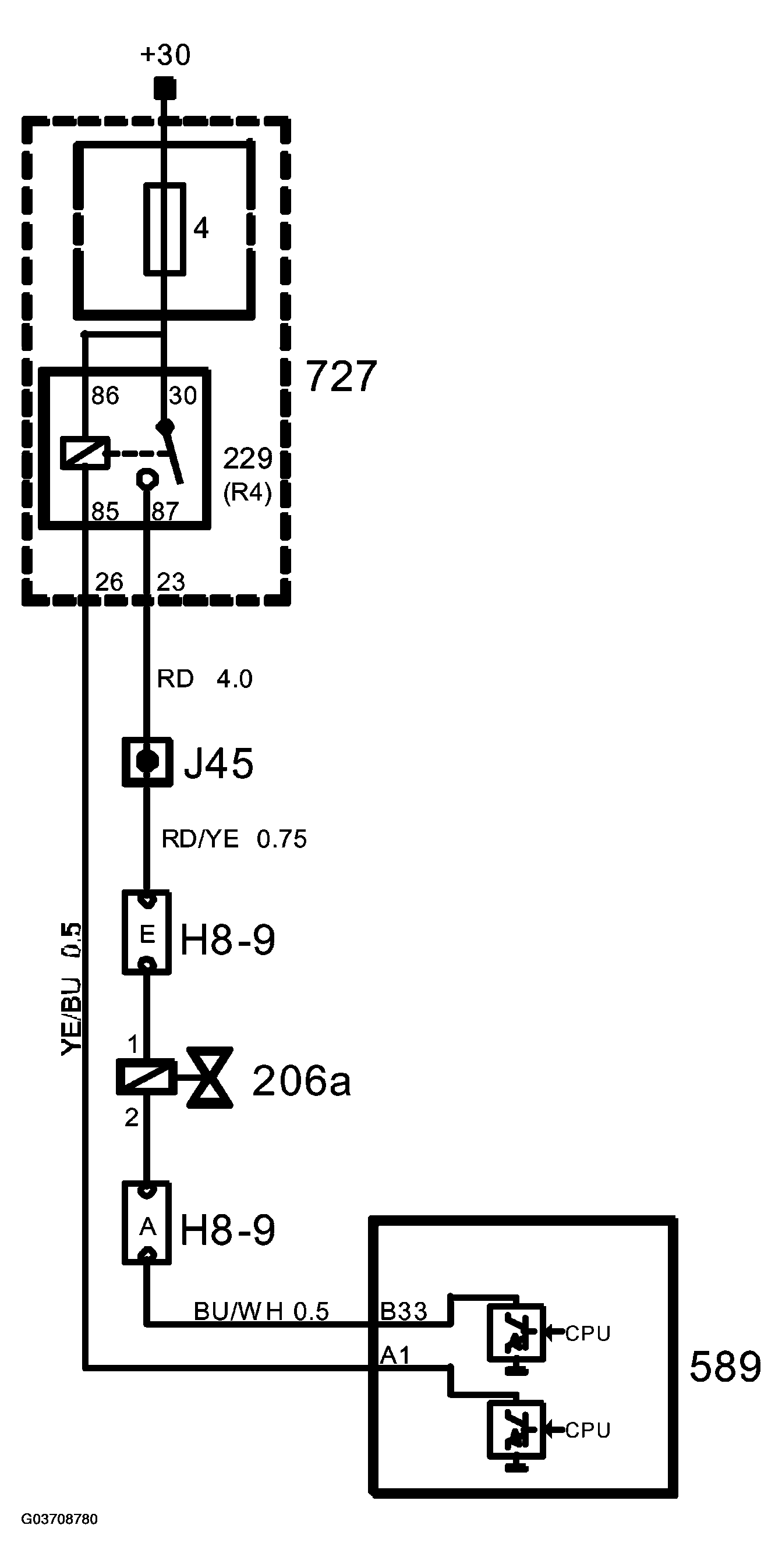

• Injector 1 is controlled by pin 33(B).
  Fig 2: Identifying Injectors Wiring Diagram - Injector 1 Is Controlled By Pin 33(B)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.

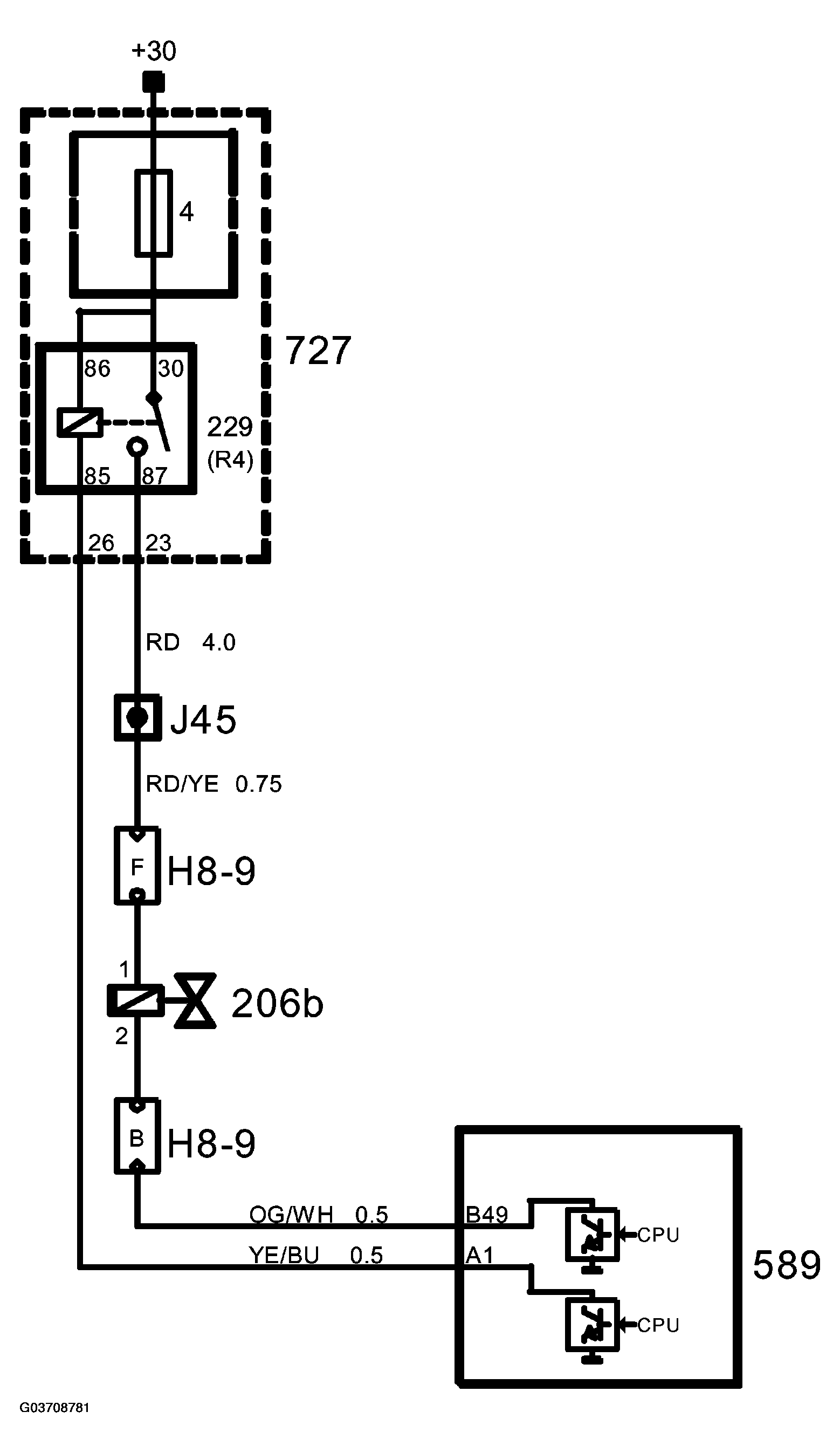

• Injector 2 is controlled by pin 49(B).
  Fig 3: Identifying Injectors Wiring Diagram - Injector 2 Is Controlled By Pin 49(B)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.

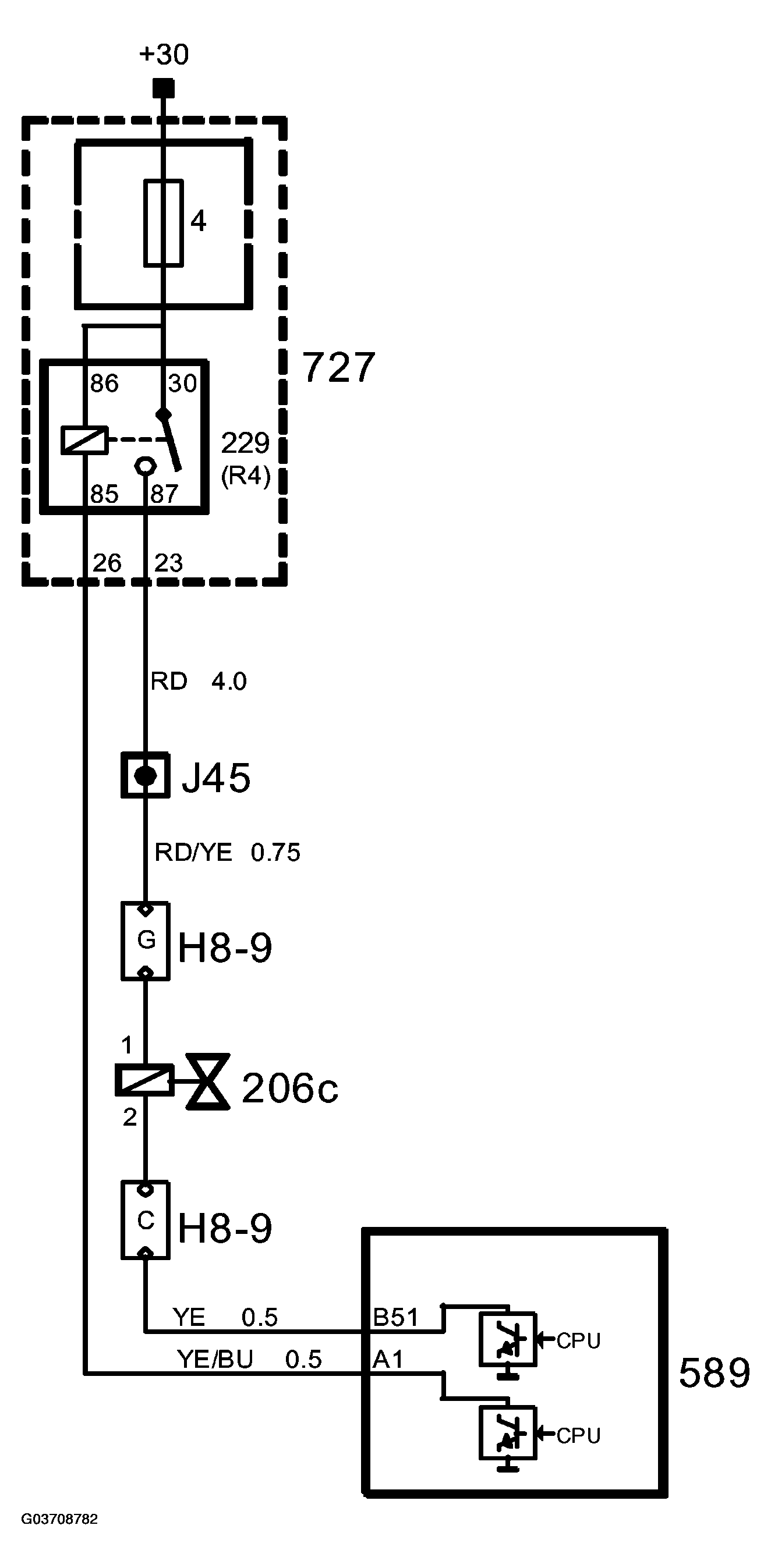

• Injector 3 is controlled by pin 51(B).
  Fig 4: Identifying Injectors Wiring Diagram - Injector 3 Is Controlled By Pin 51(B)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.

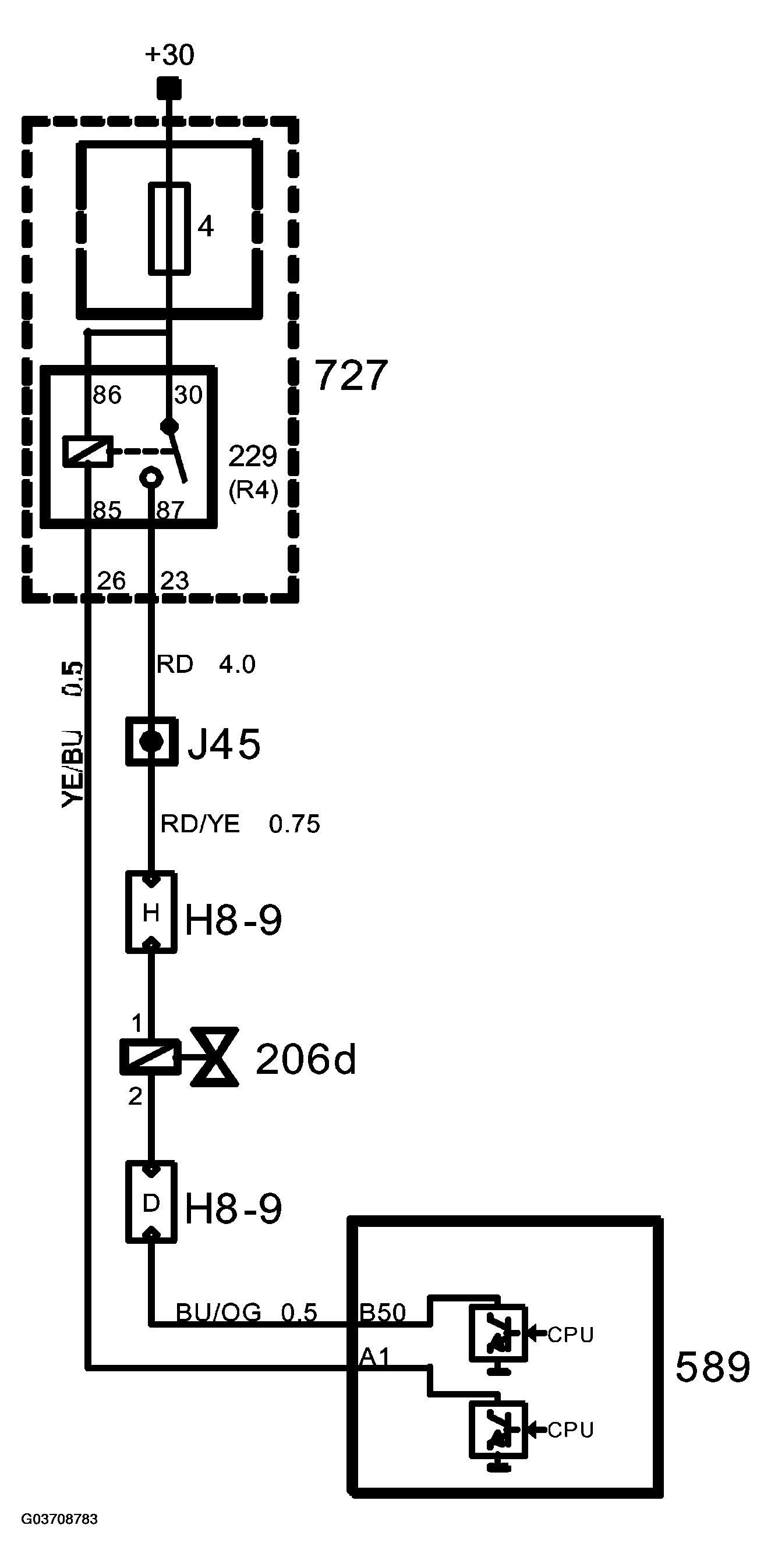

• Injector 4 is controlled by pin 50(B).
  Fig 5: Identifying Injectors Wiring Diagram - Injector 4 Is Controlled By Pin 50(B)

  Courtesy of SAAB-SCANIA OF AMERICA, INC.

The microprocessor controls the transistor concerned according to the firing order so that injection is finished roughly when the inlet valve opens for the cylinder concerned.

The crankshaft angle when injection takes place depends on the current operating point.
