Combustion signals, synchronization
Trionic T8 does not have a camshaft position sensor, which is normally needed for sequential knock control and fuel injection.
When starting, ECM is not aware of whether it is cylinder 1 or 4 that is in compression stroke, i.e. the cylinder containing the air/fuel mixture.
Consequently, ignition will take place in both cylinders and in the same way, ignition will take place in cylinders 2 and 3 at the same time.
In order to synchronize the firing order, ECM must detect the result (combustion or not) after the simultaneous spark in cylinders 1/4 and 2/3 respectively.
This is achieved in the following way:

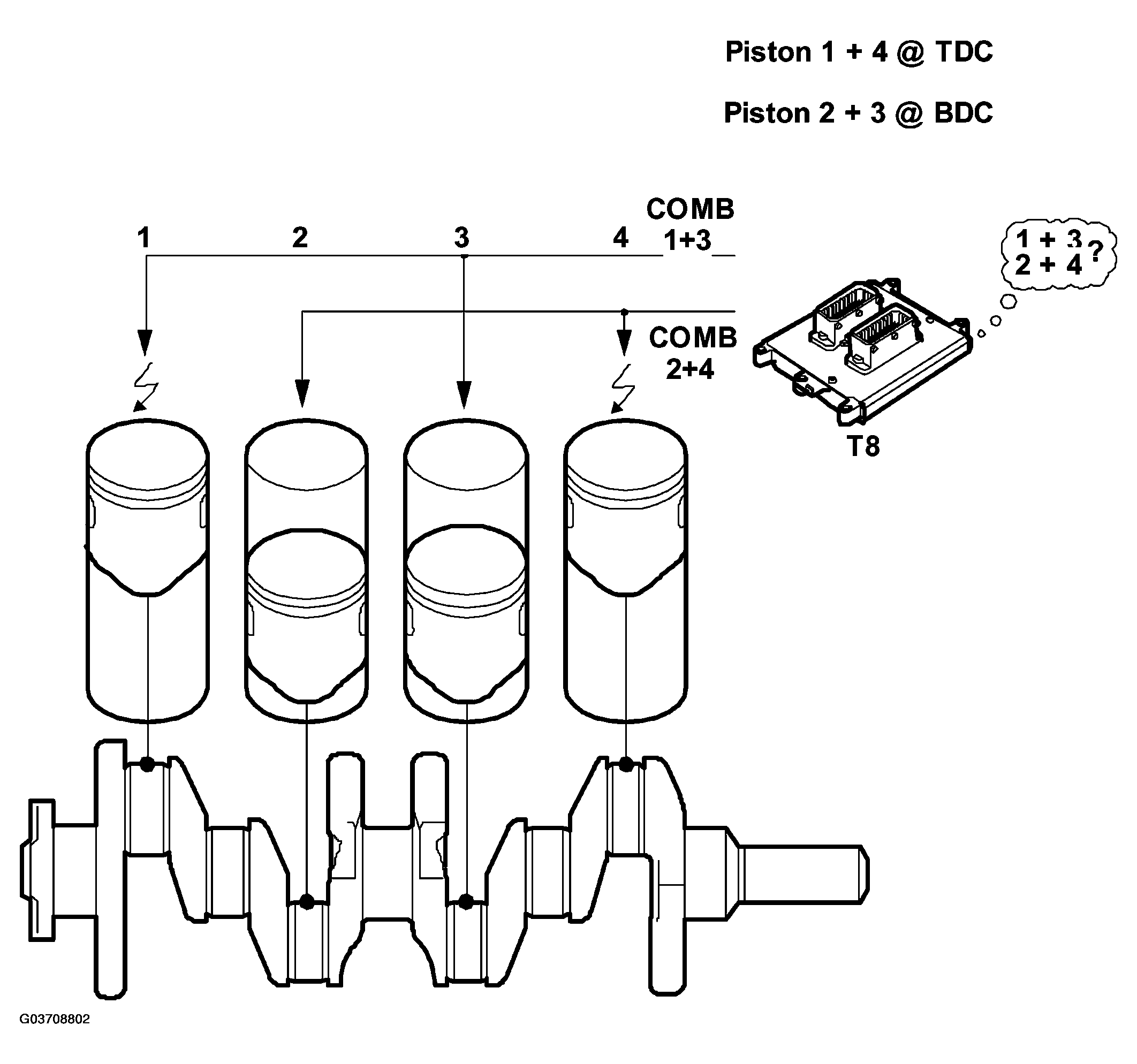

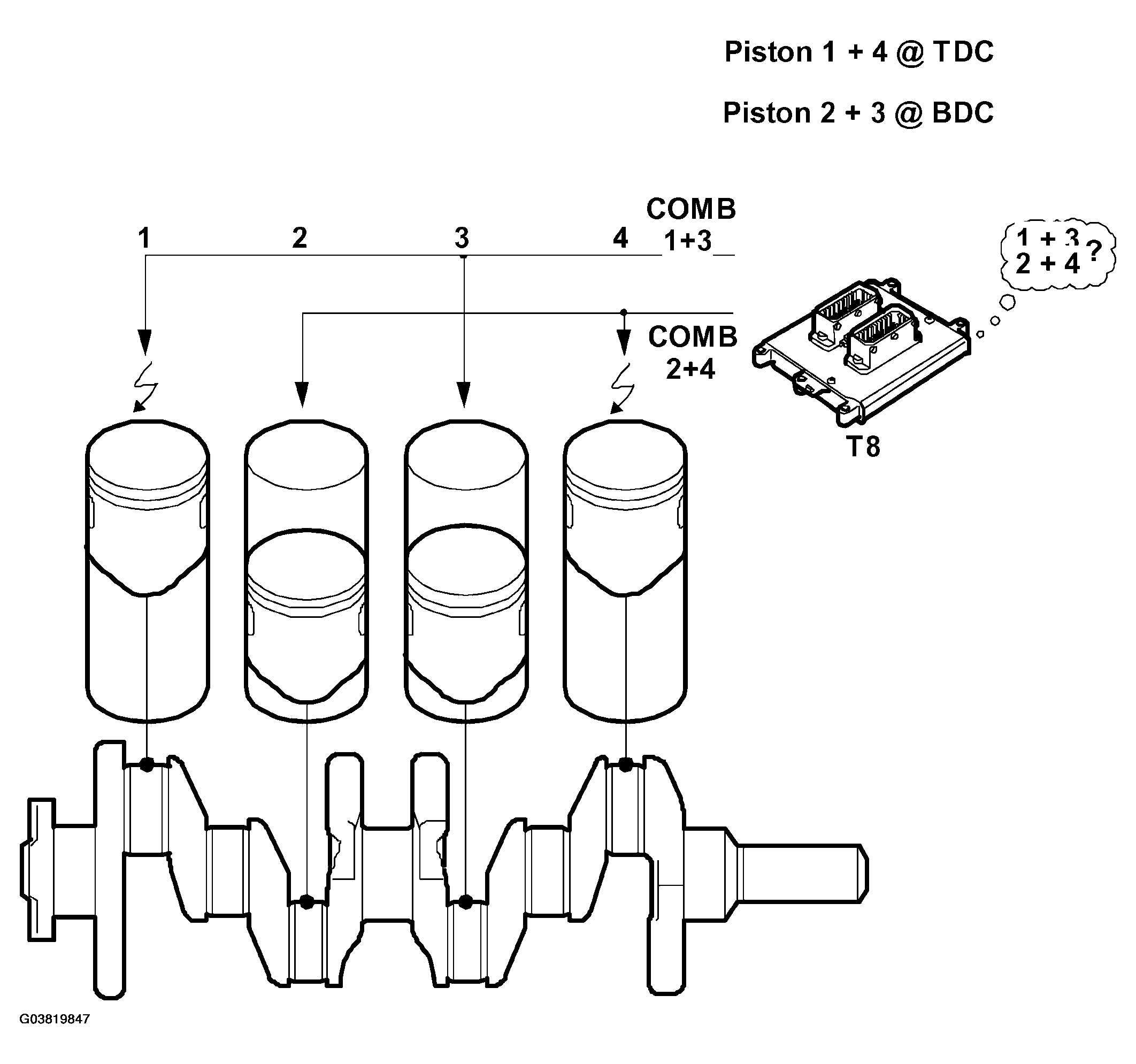

Suppose a spark has been generated in cylinder 1 and 4. CDM will detect this because it is connected to the ignition trigger line of the respective ignition coils. CDM analyses the ionization signal from ignition coil pin 4 for cylinder 1 pin 16 and cylinder 4 pin 15 on CDM.
The cylinder in which combustion has taken place will produce a powerful ionization signal.

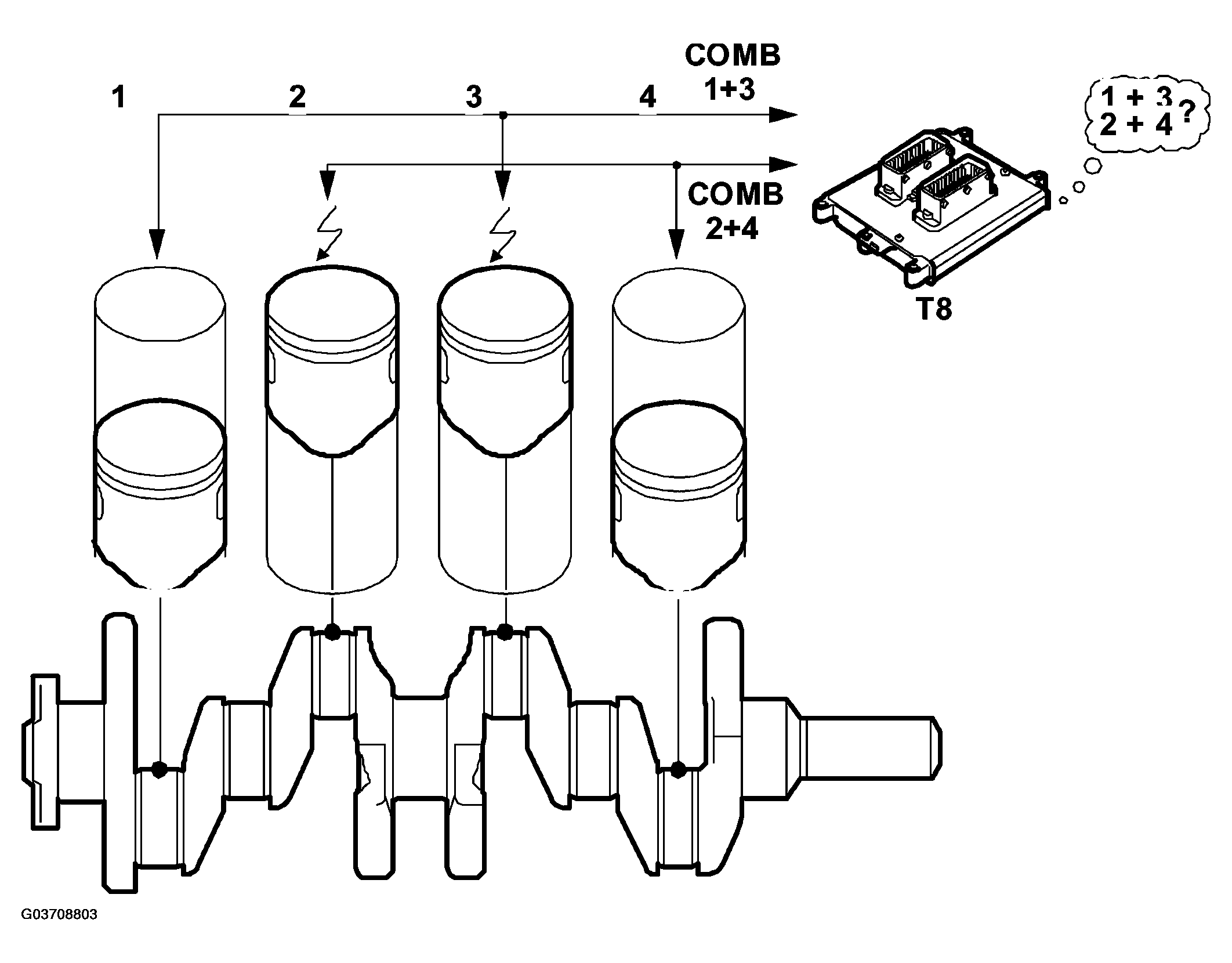

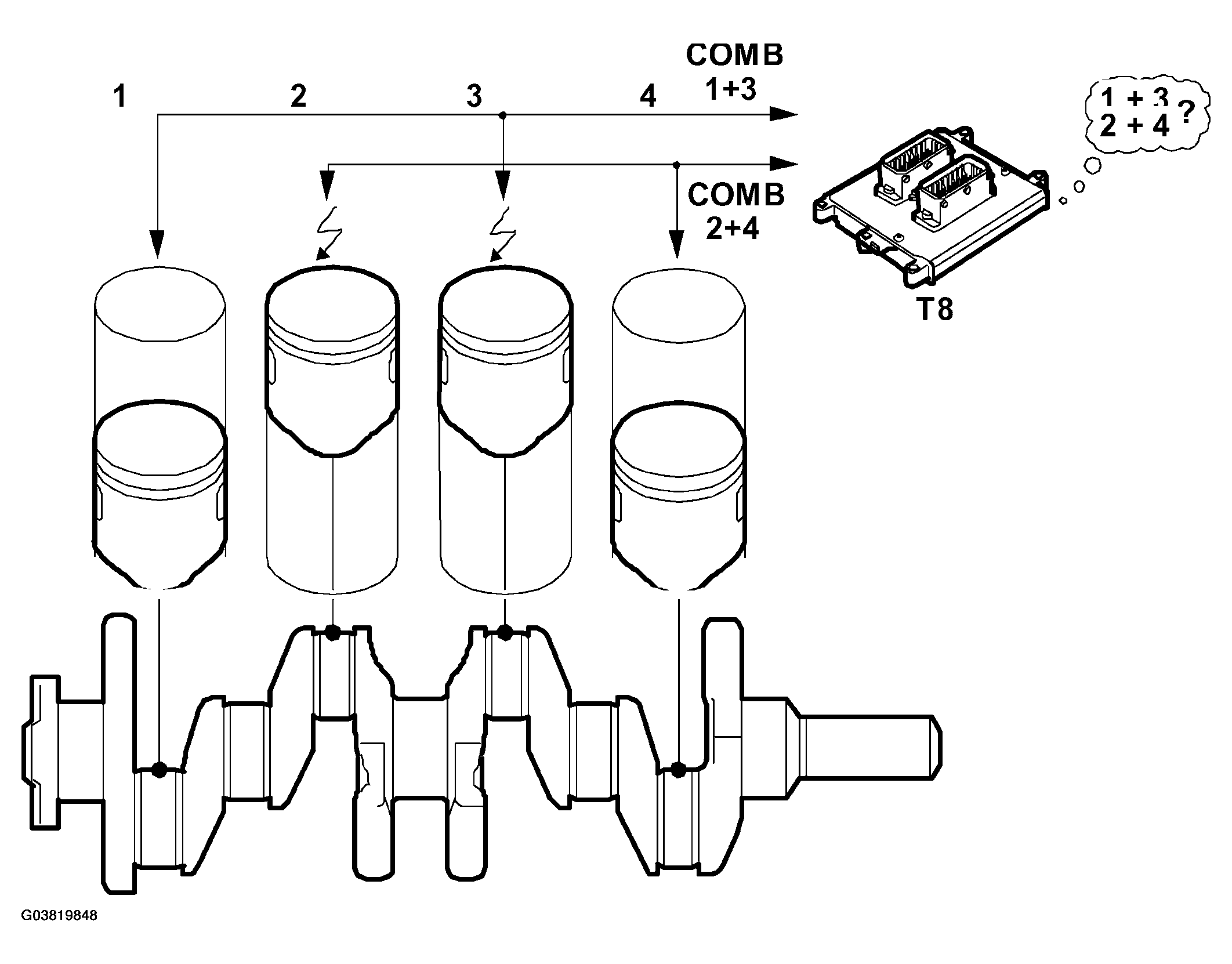

If combustion takes place in cylinder 1 then CDM will send a pulse from pin 4 to ECM pin 20(B) and from CDM pin 11 to ECM pin 21(B) if in cylinder 4. With regard to cylinders 2 and 3, if combustion takes place in cylinder 2, a pulse will be sent from CDM pin 11 to ECM pin 21(B) and cylinder 3 a pulse from CDM pin 4 to pin 20(B) on ECM.

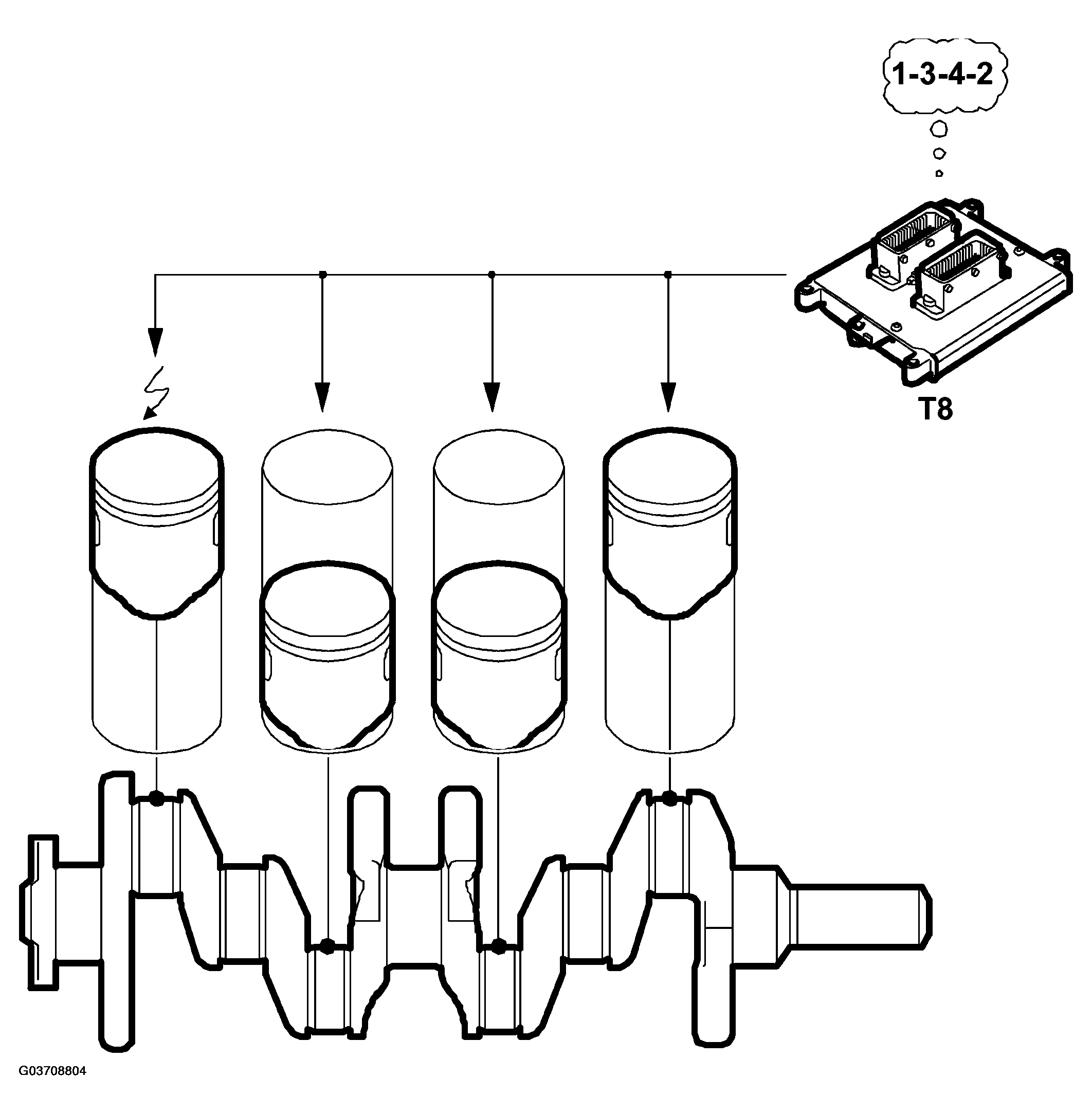

When combustion signals arrive on ECM pins 20(B) and 21(B), the firing order and fuel injection will be synchronized.
