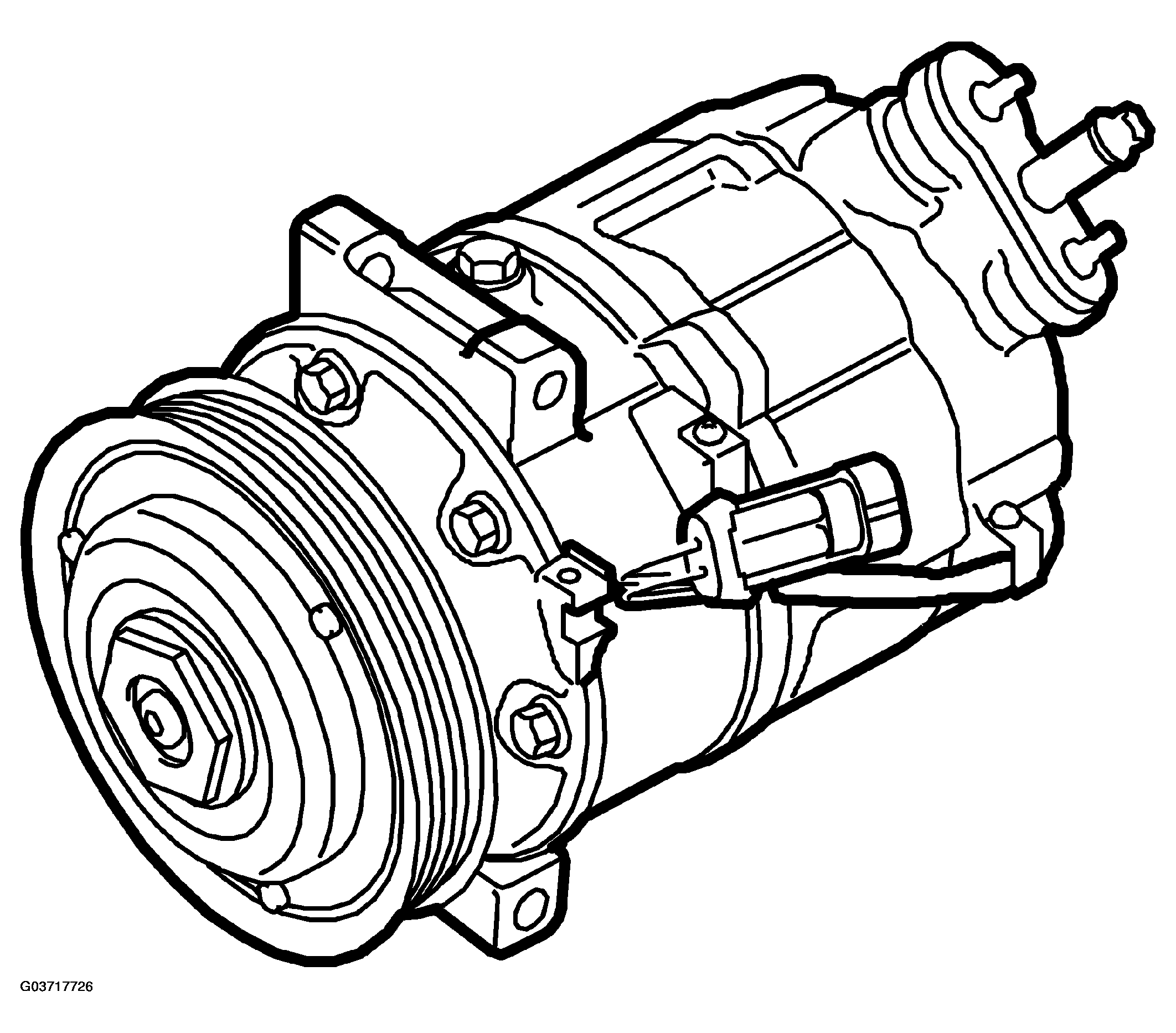

Compressor (170): Notes
COMPRESSOR (170) TECHNICAL DATA
| Type designation | Sanden PXV16 | |
| Compressor type | Reciprocating compressor with variable displacement | |
| Cylinder volume | cm3 | 163/5,5 |
| Oil quantity, new compressor | ml | 120 +/-15 cc |
| Speed range | r/min | 575-8000 |
| Weight with clutch | kg | 6,2 |
| Overheating protection in electromagnetic clutch (cannot be reset) | °C | 182+/-5 |
| Play, electromagnetic clutch | mm | 0,45+/-0,15 |
