Intake air sensor (688), T8: Notes

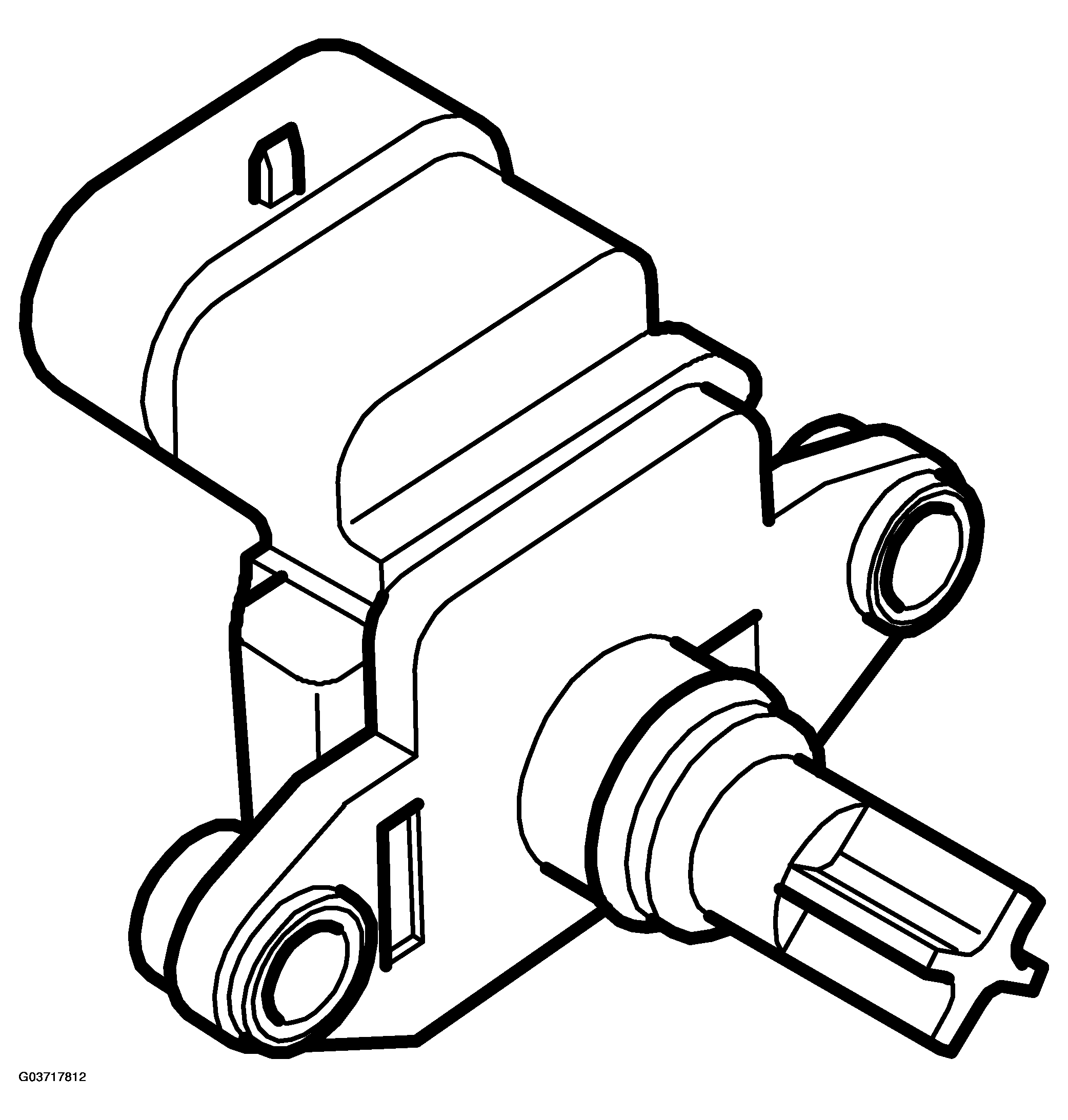

Fig 1: Identifying Intake Air Sensor (T8)
G03717812Courtesy of SAAB-SCANIA OF AMERICA, INC.

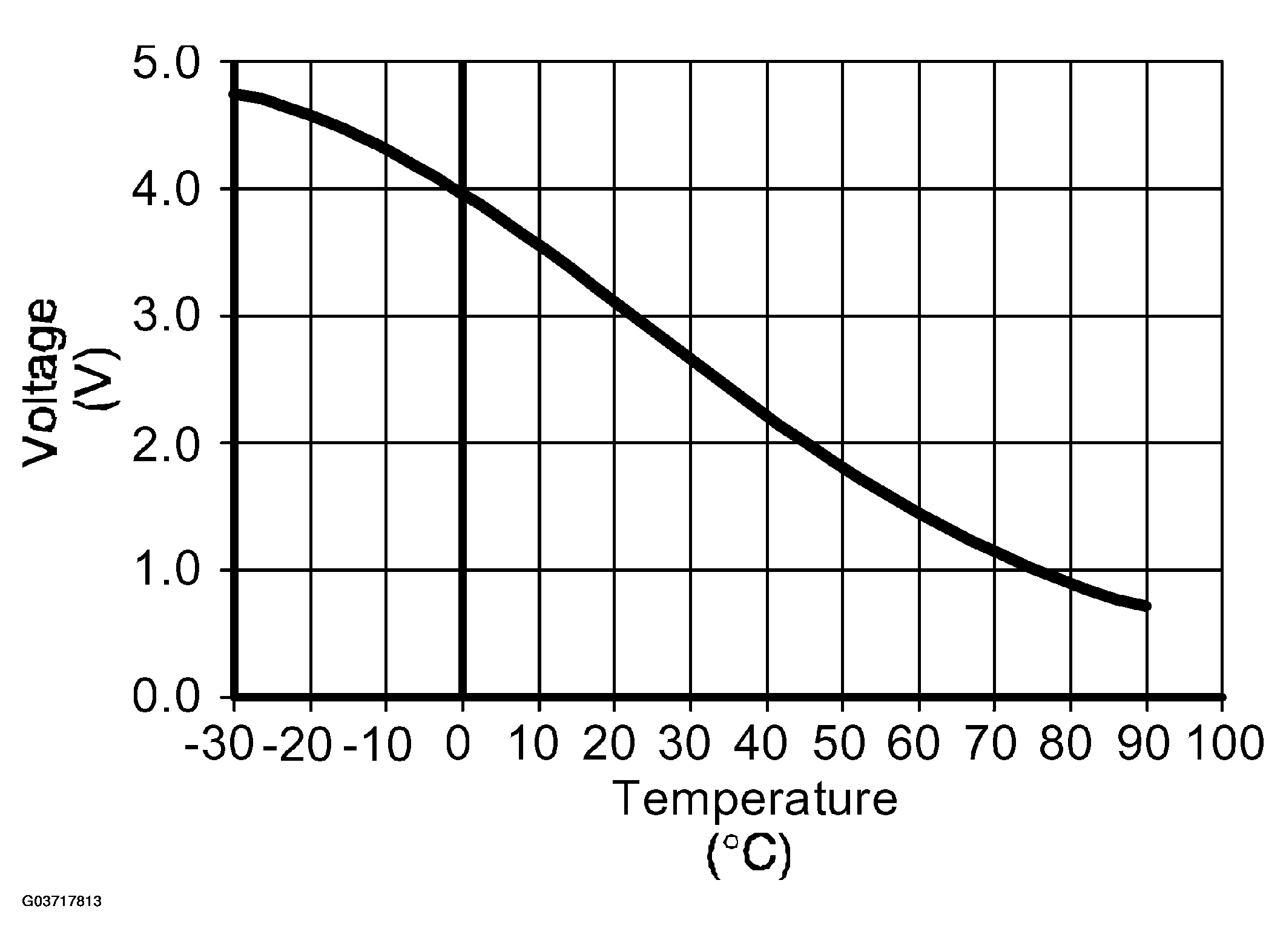

Fig 2: Identifying Graph (Intake Air Sensor, T8)
G03717813Courtesy of SAAB-SCANIA OF AMERICA, INC.

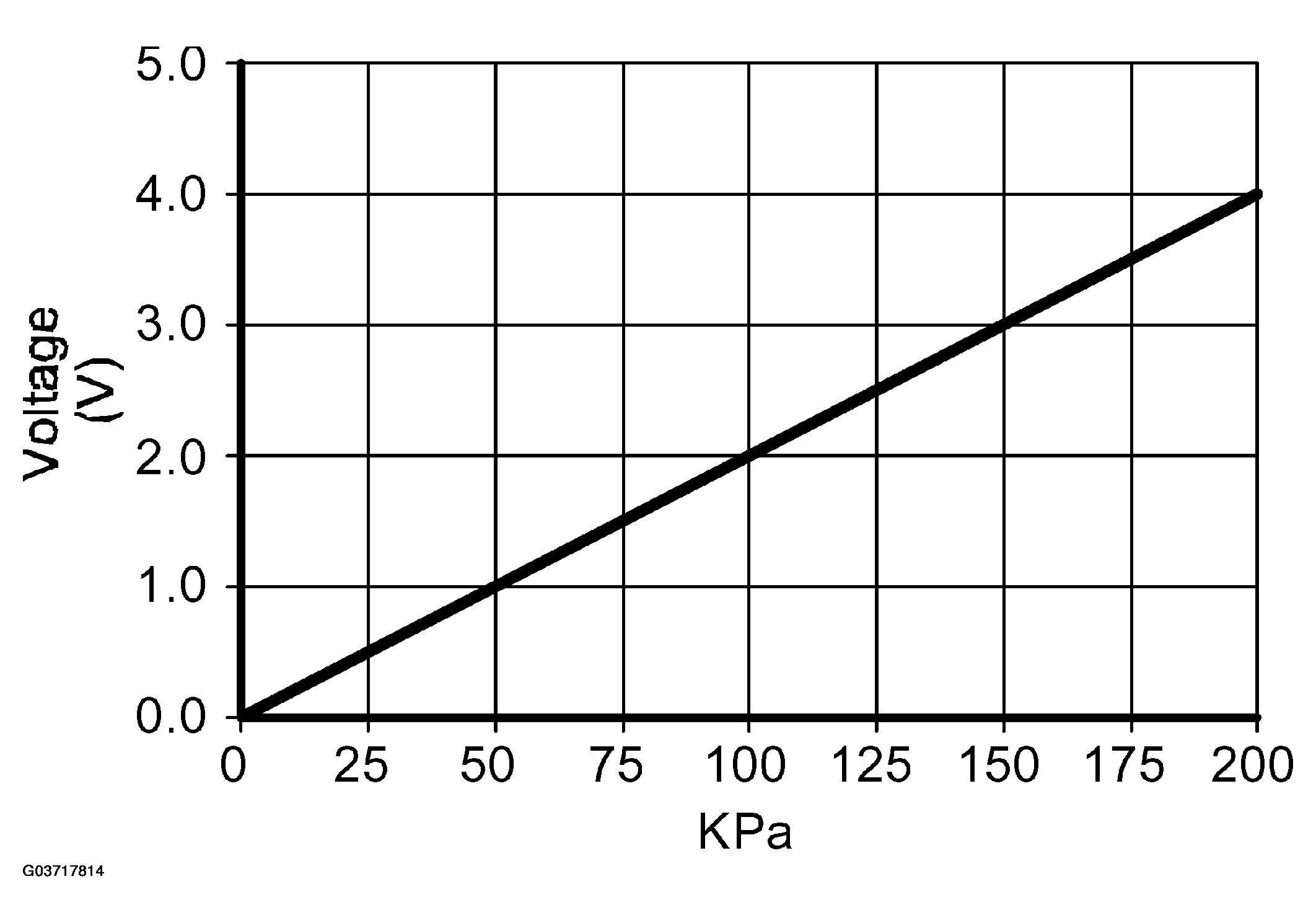

Fig 3: Identifying Graph (Intake Air Sensor, T8)
G03717814Courtesy of SAAB-SCANIA OF AMERICA, INC.
