Relay, A/C compressor (156)

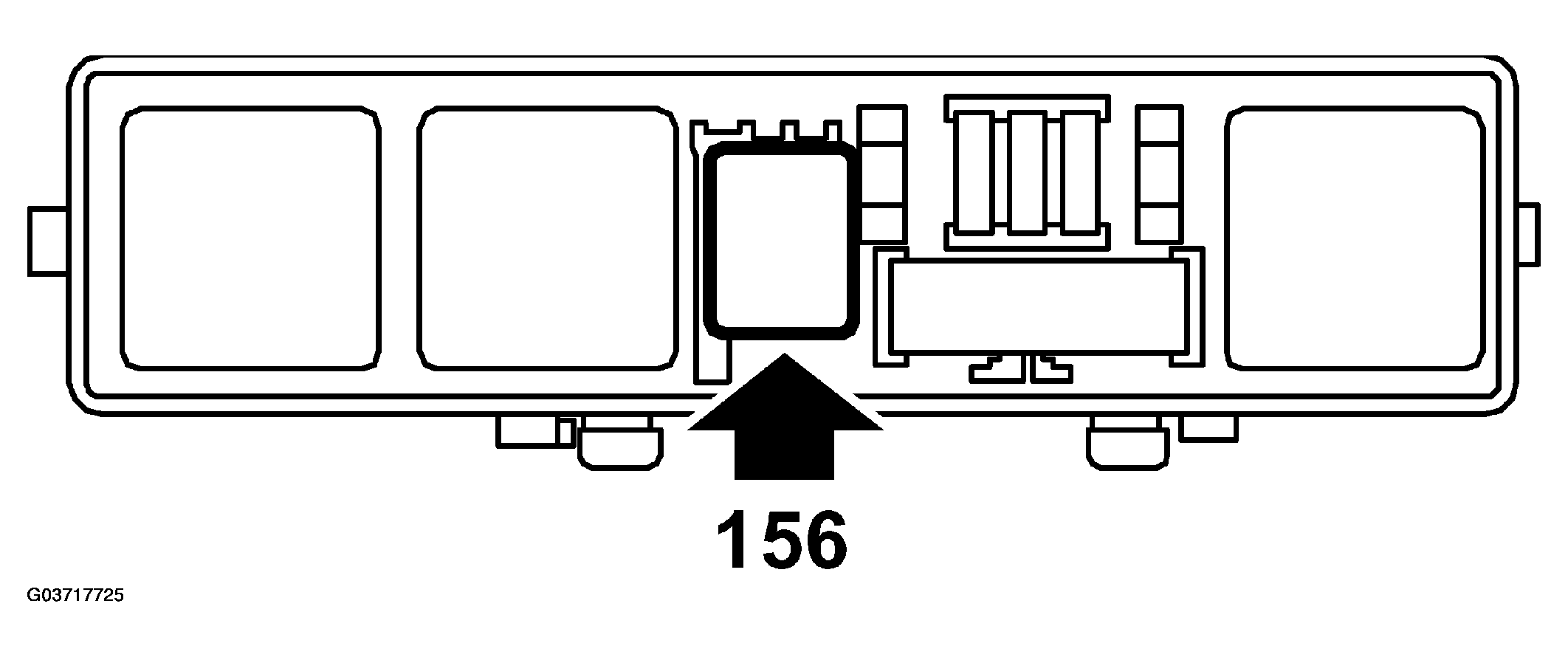

Fig 1: View Of Relay, A/C Compressor (156)
G03717725Courtesy of SAAB-SCANIA OF AMERICA, INC.
RELAY, A/C COMPRESSOR (156) TECHNICAL DATA

Resistance, winding at 20°C (68°F) 85+/-5 Ohm
Nominal control voltage 12V
Nominal current 30A
