Brake light switch (29), TCS/ESP: Connection

CONNECTOR PINOUTS REFERENCE

Pin no. Type of signal Description
1 +30 Power supply from fuse 6 instrument panel electrical center.
2 Signal The pin receives B+ when the brake pedal is depressed. Connected to TCS/ESP control module pin 17.

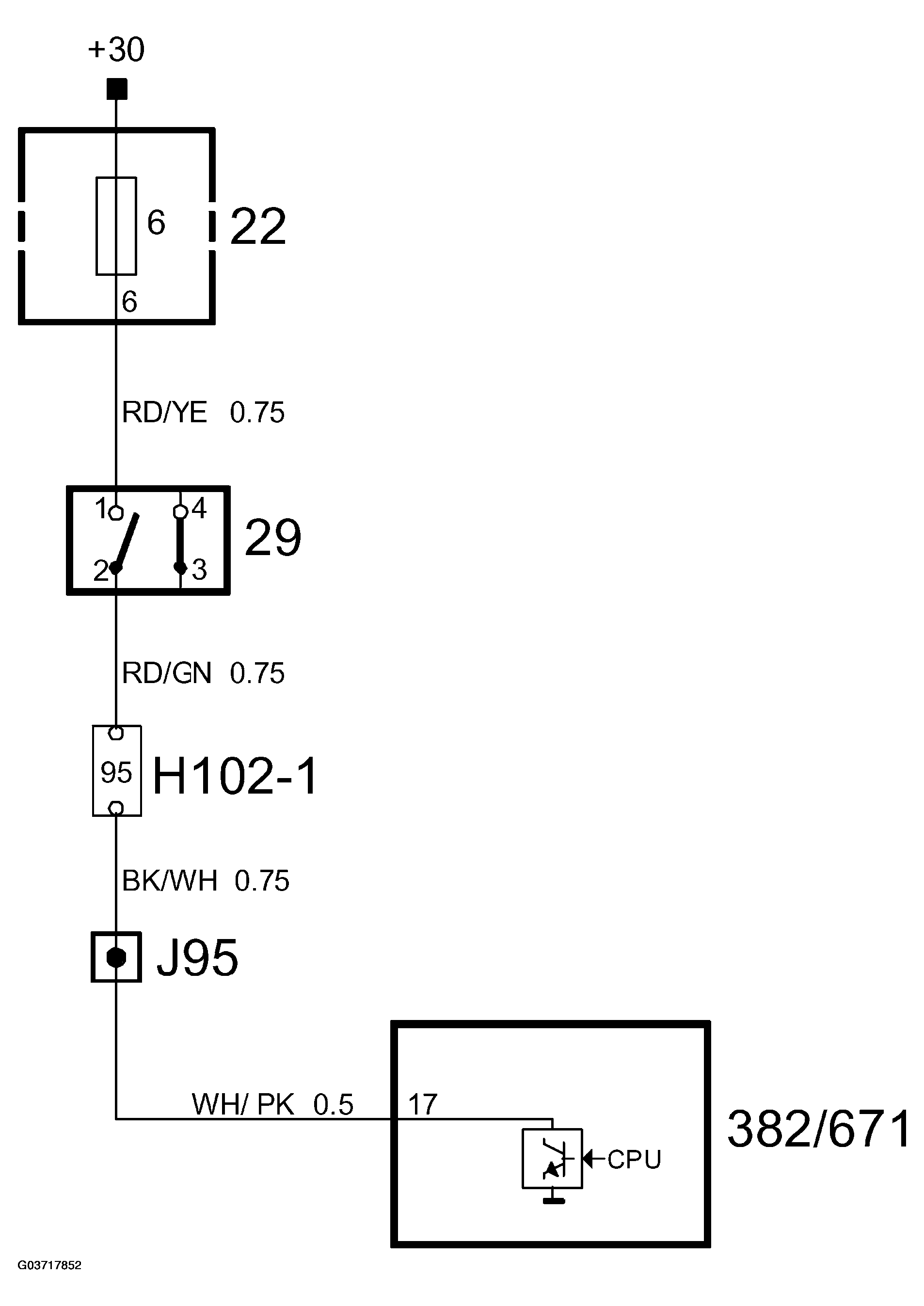

Fig 1: Brake Light Switch (TCS/ESP) - Circuit Diagram
G03717852Courtesy of SAAB-SCANIA OF AMERICA, INC.
