Pressure sensor, A/C (620) Simtec: Connection: Simtec

CONNECTOR PINOUTS REFERENCE

Pin No.	Signal type	Description
A	Ground	Connected to ECM pin 1(A).
B	Power supply, 5 V	Connected to ECM pin 32(A).
C	Signal	Connected to ECM pin 7(B).

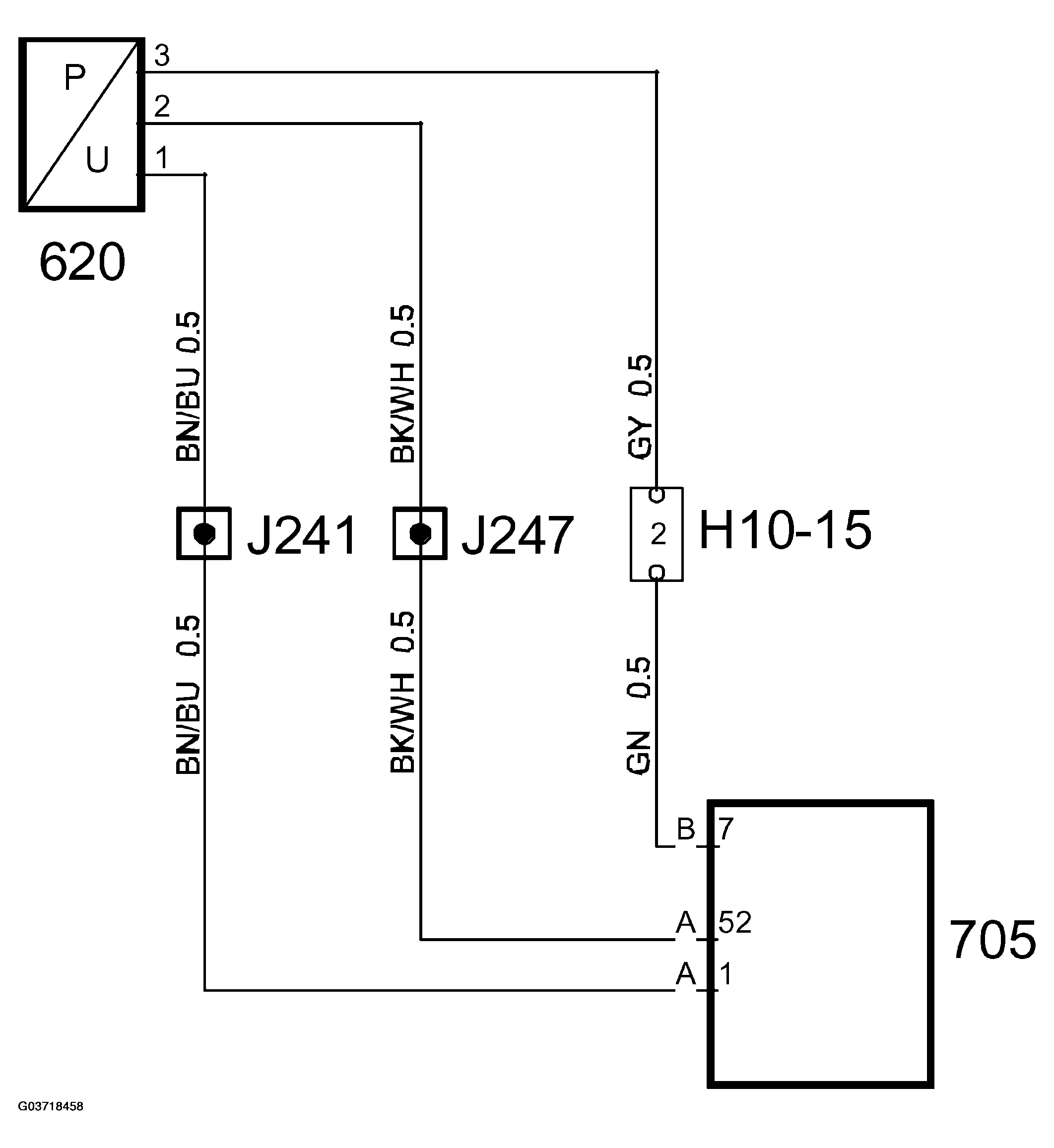

Fig 1: Circuit Diagram - A/C Pressure Sensor (Simtec)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
