To fit

  1. Fit the amplifier into the bracket.
  2. Fit the amplifier retaining screw.

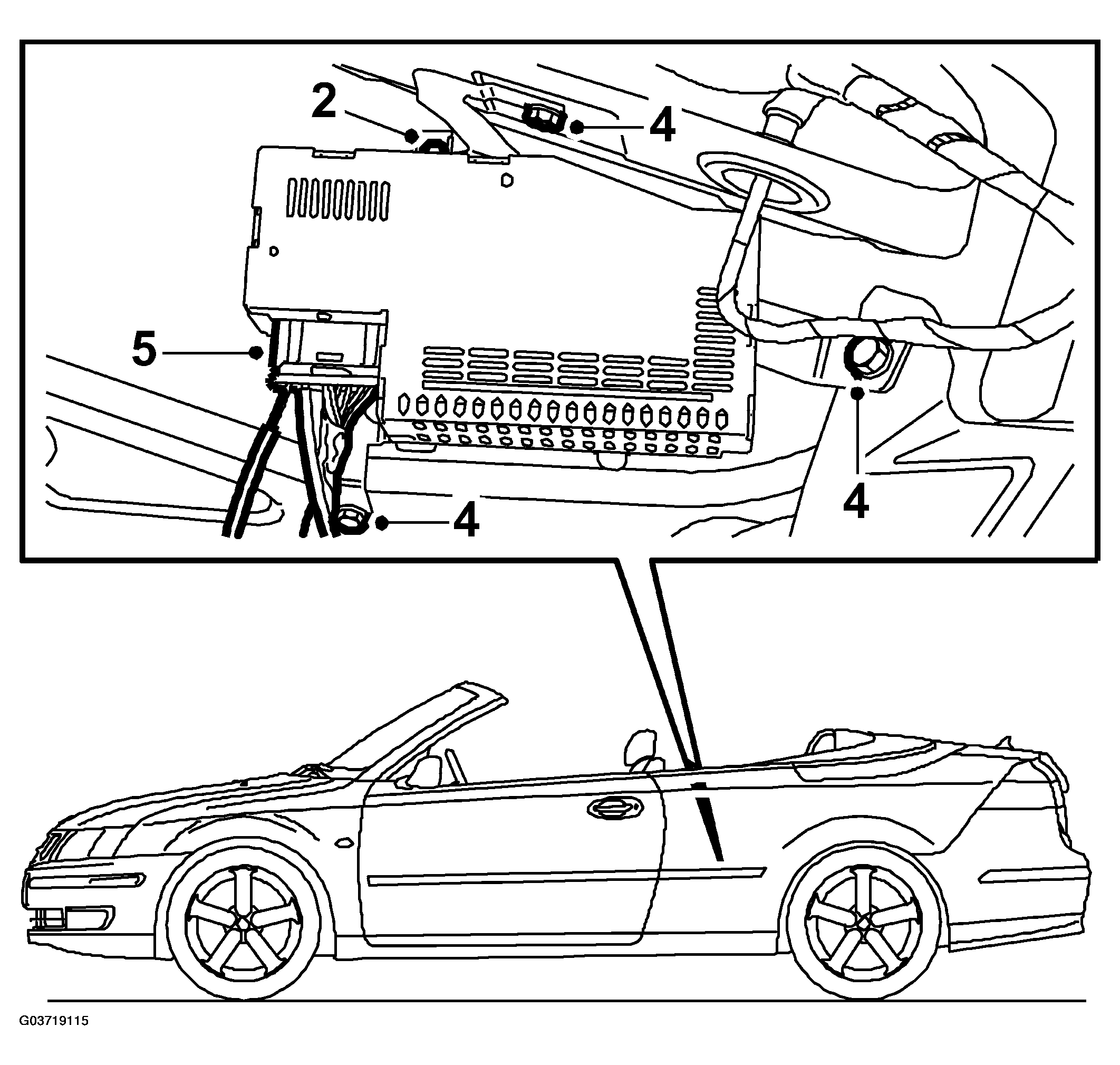

    Fig 1: Illustration For Steps 2, 4 & 5
    G03719115Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the assembled amplifier and bracket.
  4. Fit the bracket screws.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  5. Plug in the connector.
  6. Carry out actions after replacement of control module.
  7. Check the function.
  8. Fit the rear side trim on the left side.
