To remove

Carry out actions before removing control module. See PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .

1. Remove the ACC/MCC unit with 82 93 474 Removal tool.

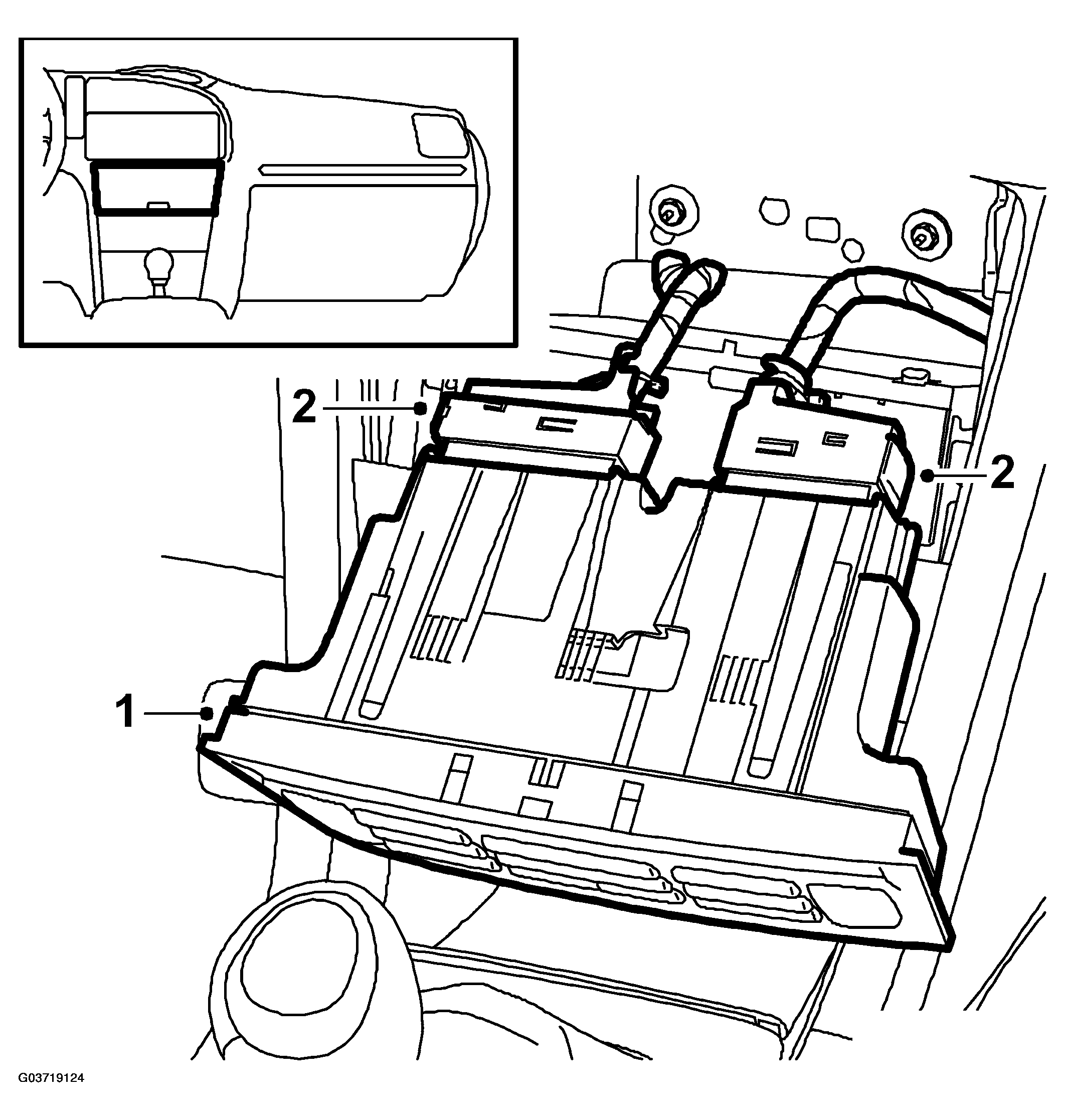

   Fig 1: Illustration For Steps 1-2

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
2. Unplug the connector to the ACC/MCC unit.
3. Remove the EHU by pressing in the two catches.

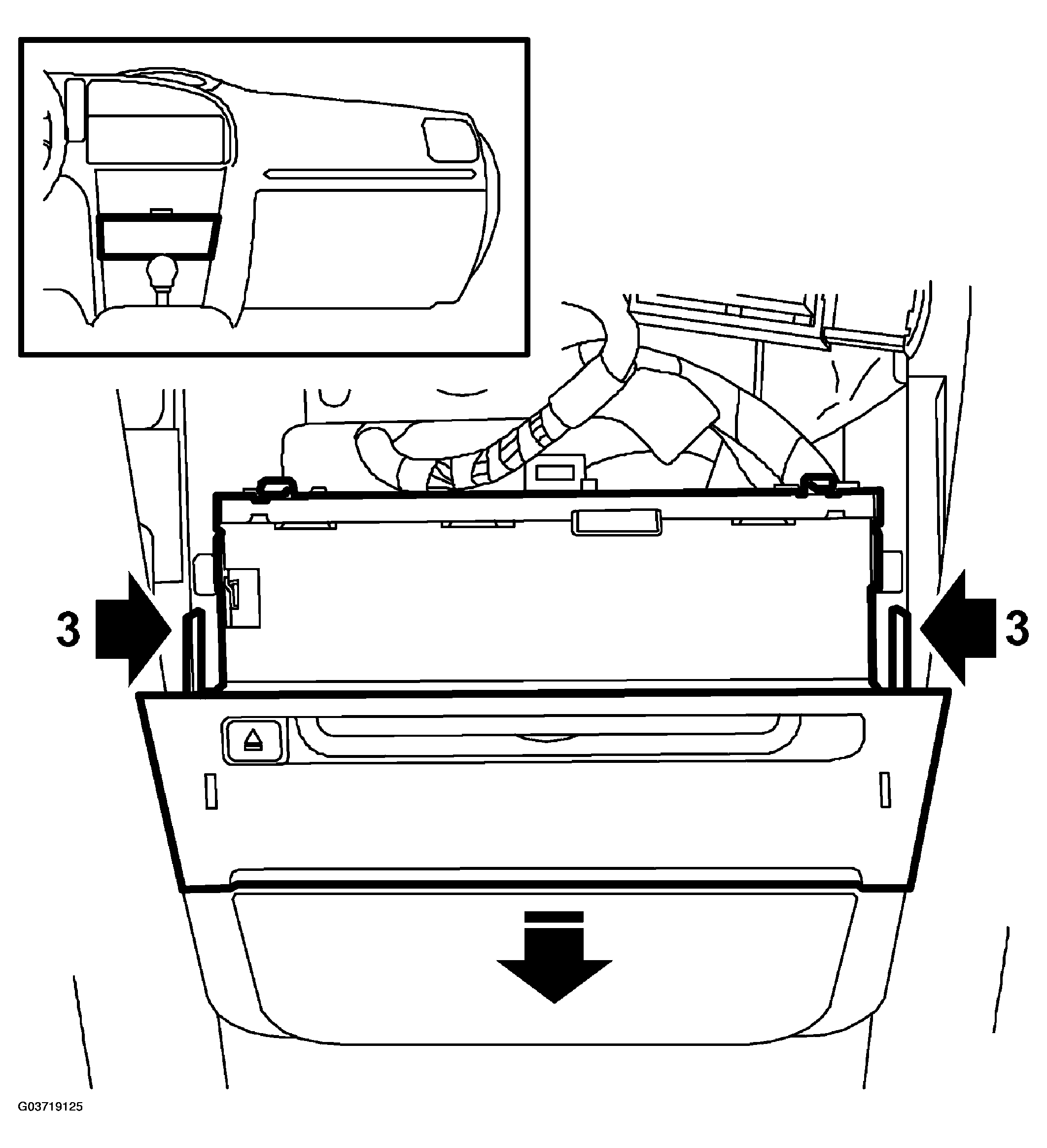

   Fig 2: Illustration For Step 3

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
4. Unplug the CD player.

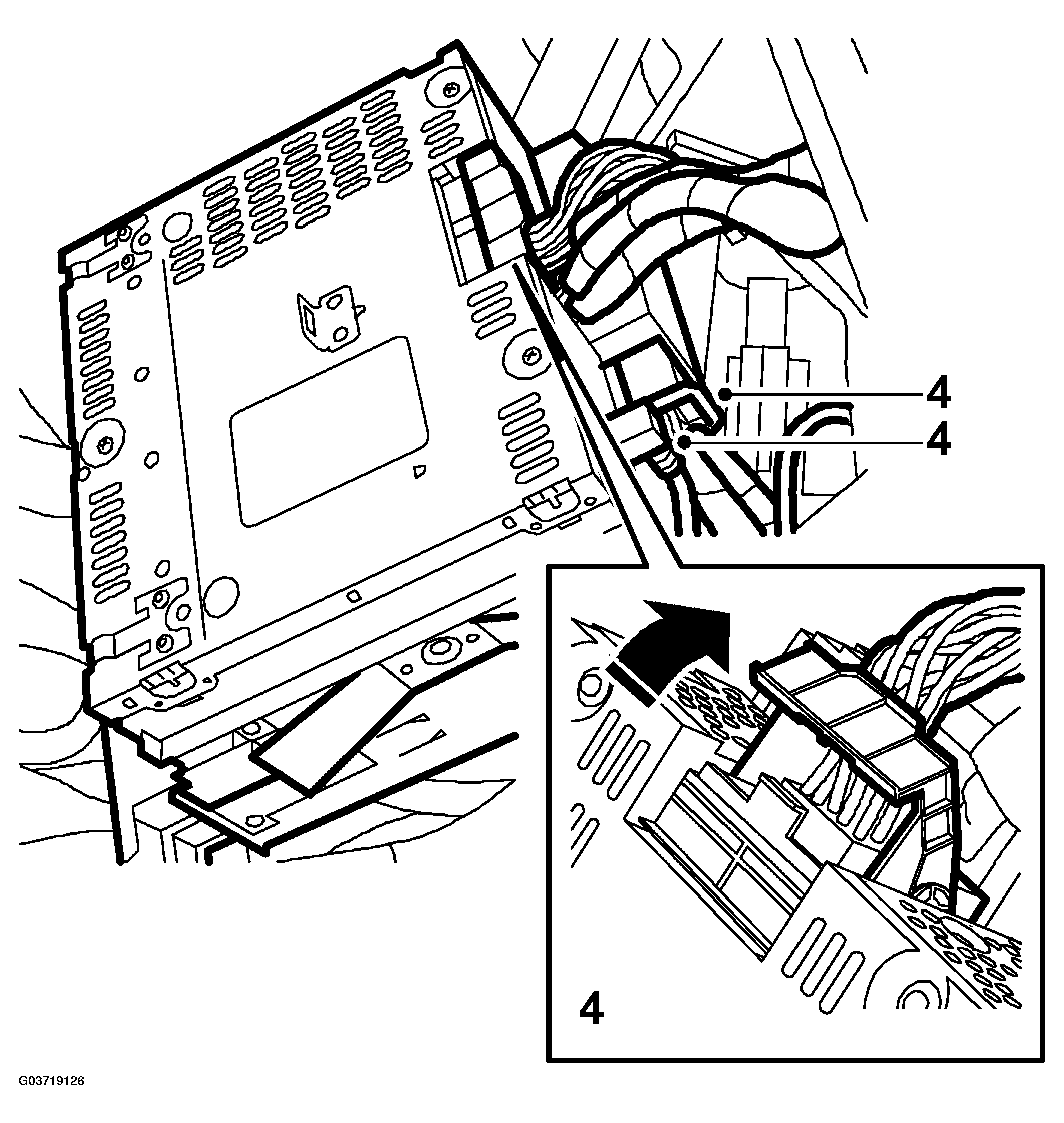

   Fig 3: Illustration For Step 4

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
5. Remove the CD player using 84 71 203 Removal tool.

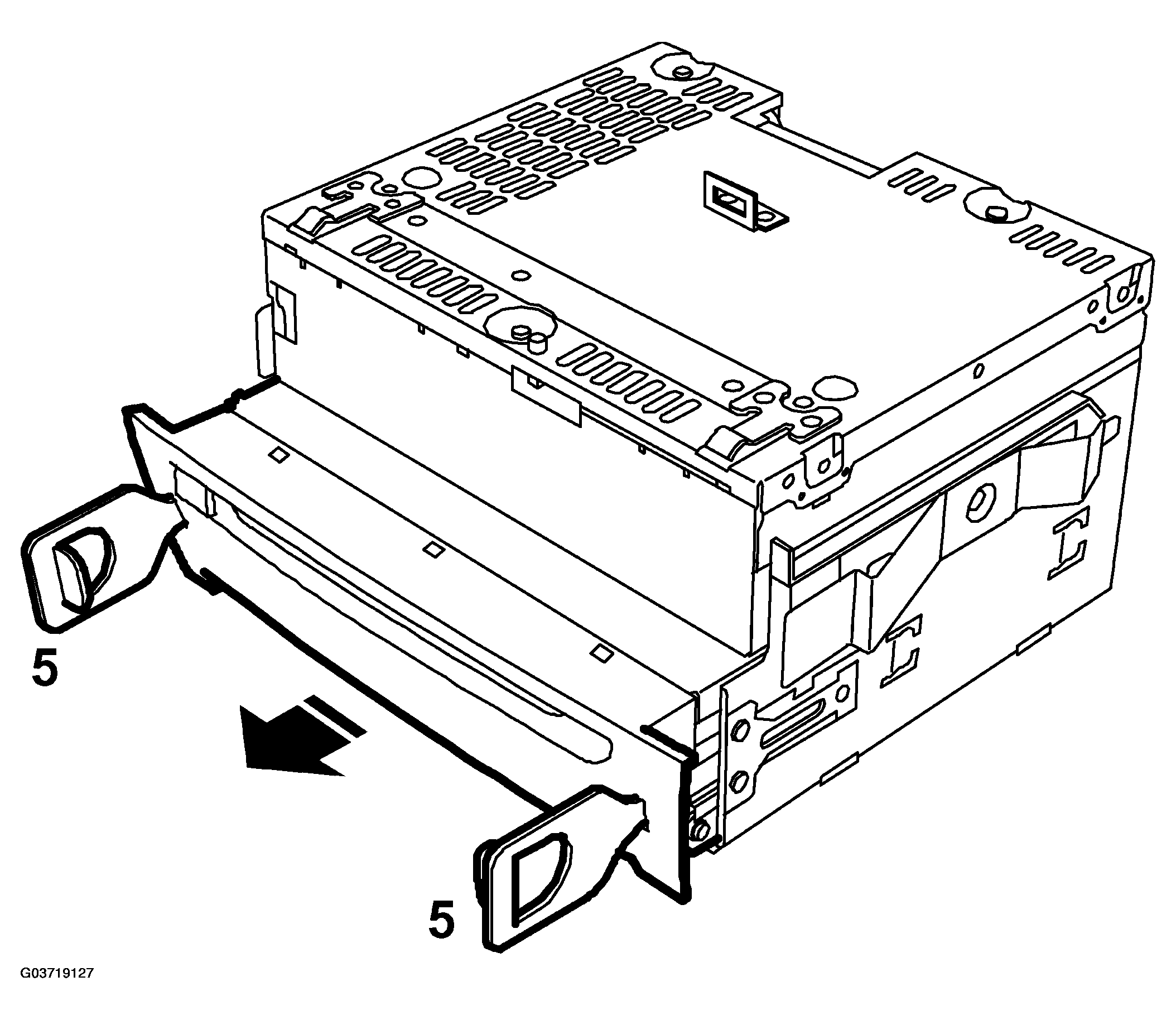

   Fig 4: Illustration For Step 5

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
