To fit

  1. Fit the DVD unit but only press it in half way.

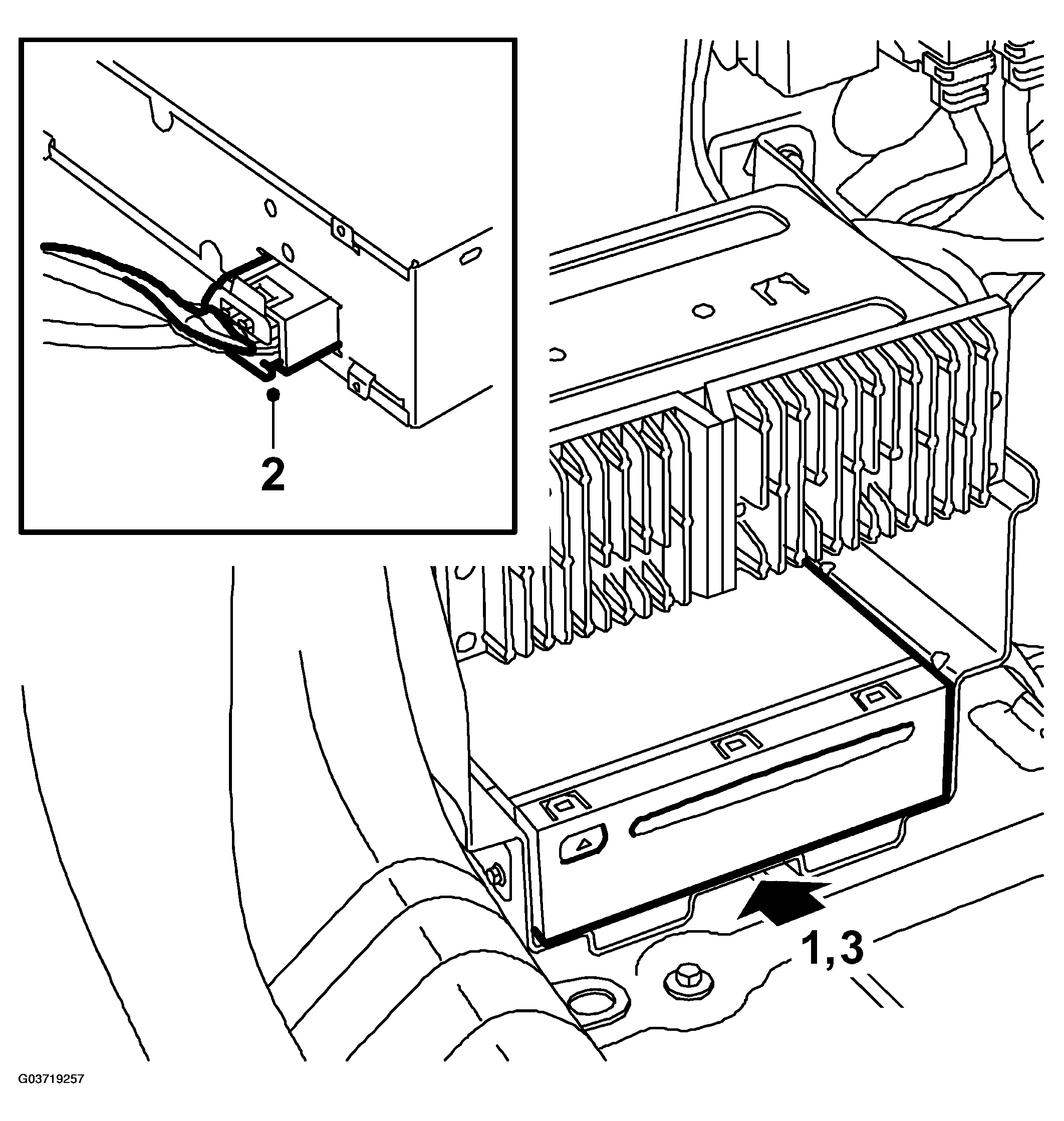

    Fig 1: Illustration For Steps 1-3
    G03719257Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  2. Plug in the connector.
  3. Press in the DVD unit.
  4. Cars with rear CD changer:  Fit the bracket.
  5. Fit the left hand inspection hatch.

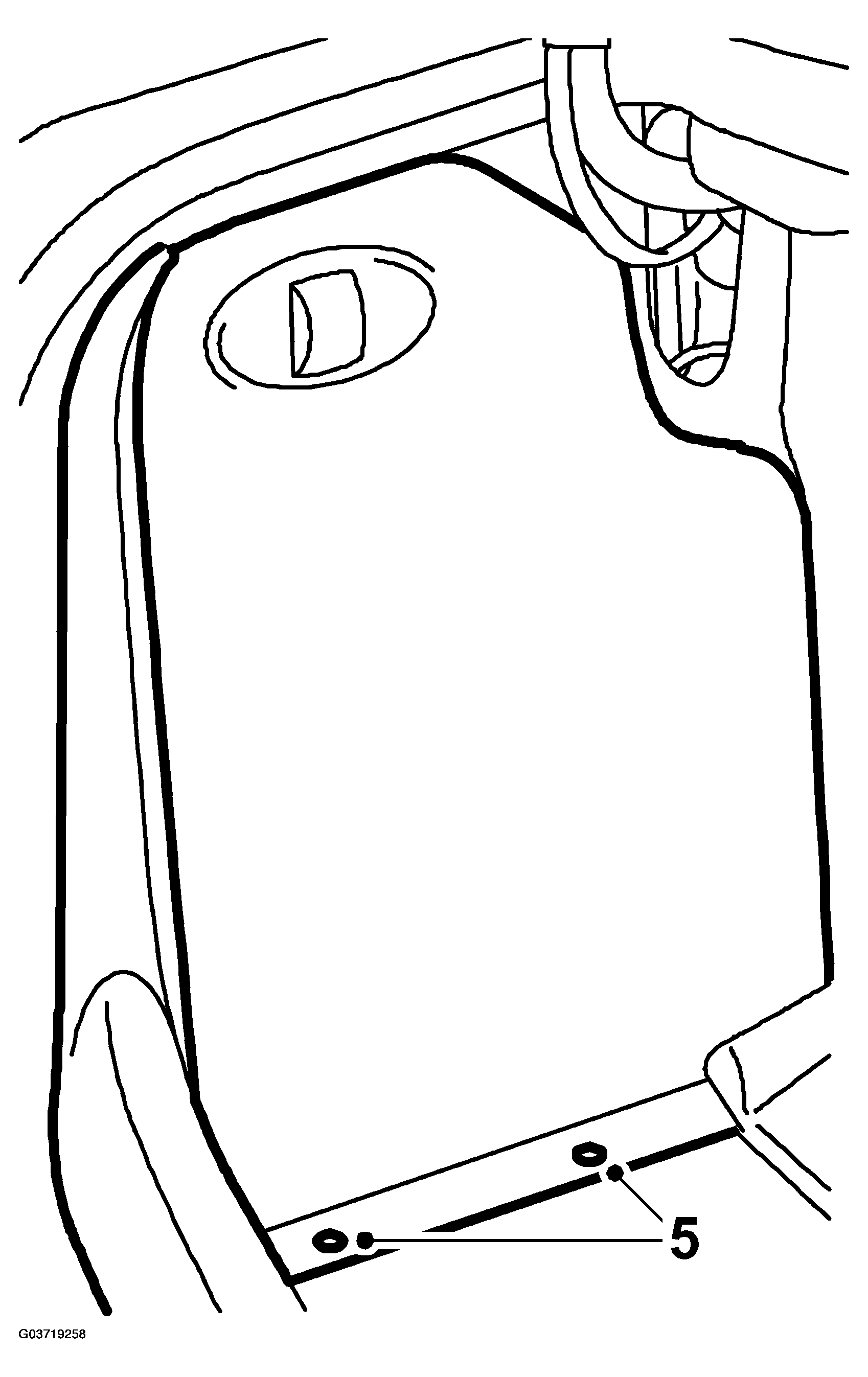

    Fig 2: Illustration For Step 5
    G03719258Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Refit the floor panel.
  7. Close the luggage compartment.
  8. Carry out procedures after changing a control module. See PROCEDURE AFTER CHANGING CONTROL MODULE  .
  9. Carry out a function check.
