To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  1. Plug in the connector.

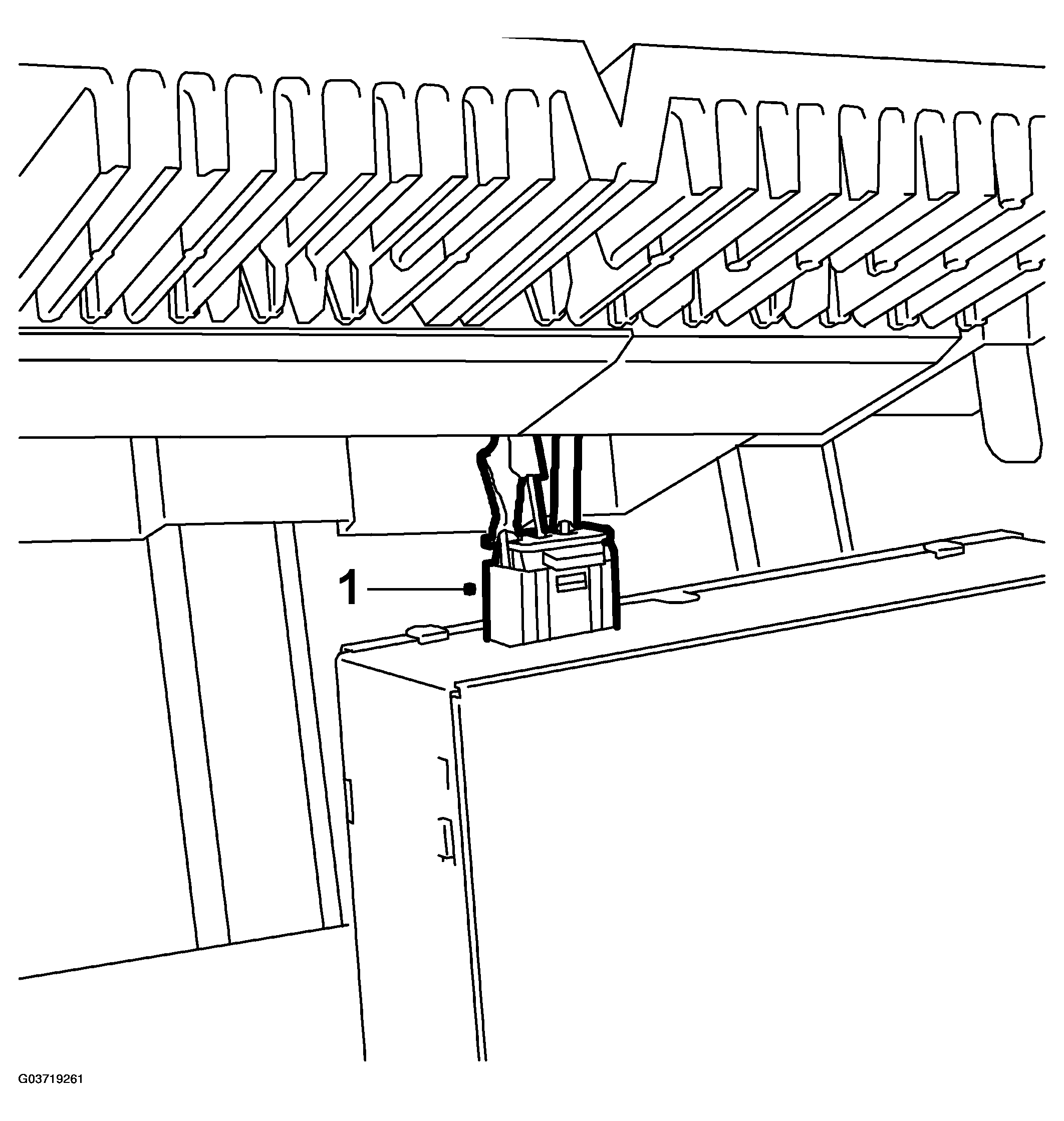

    Fig 1: Illustration For Step 1
    G03719261Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the navigation unit. A clicking sound should be heard.

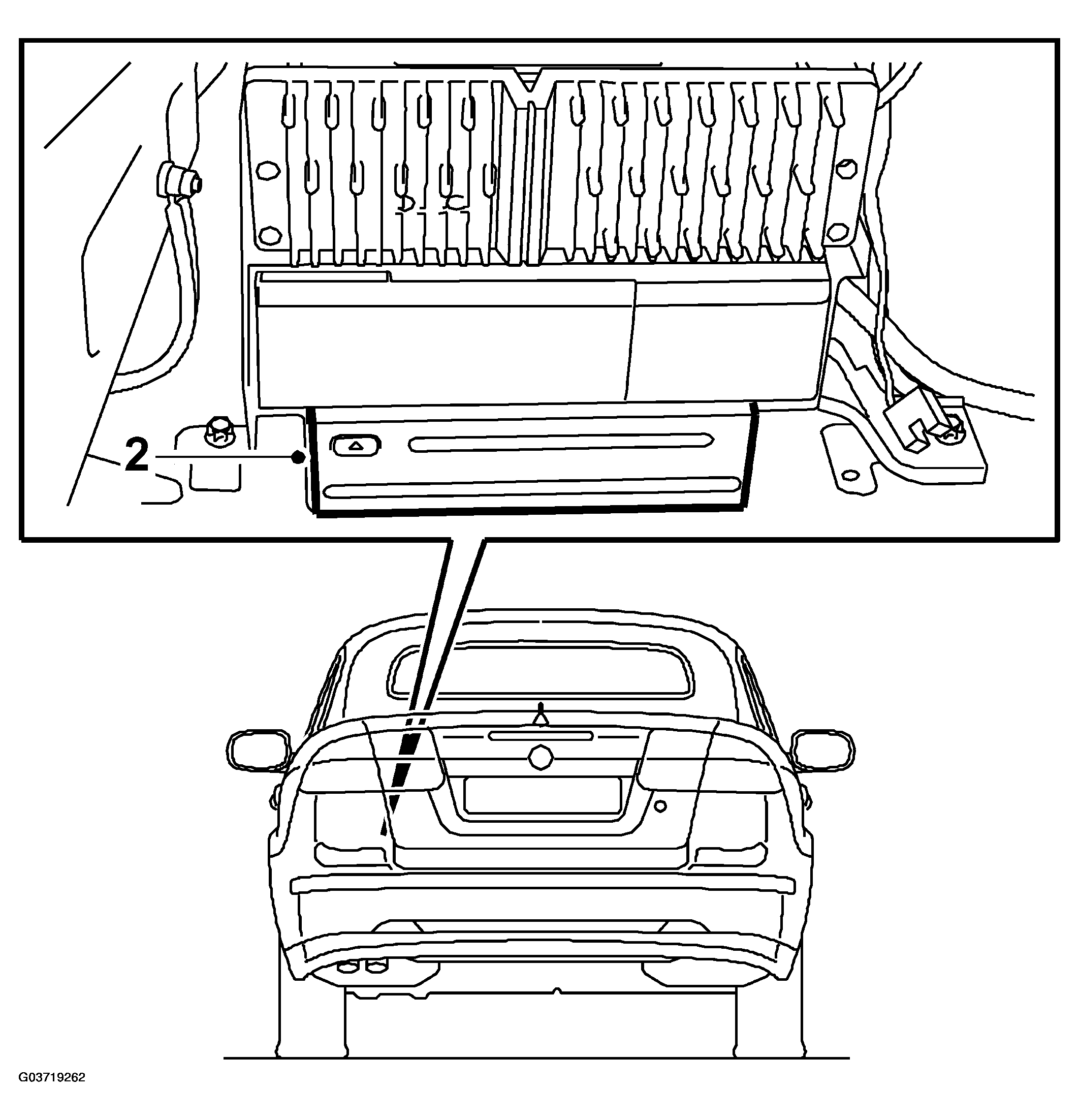

    Fig 2: Illustration For Step 2
    G03719262Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the side luggage compartment trim.
  4. Carry out procedures after changing a control module. See PROCEDURE AFTER CHANGING CONTROL MODULE  .
