To fit

  1. Fit the control module.

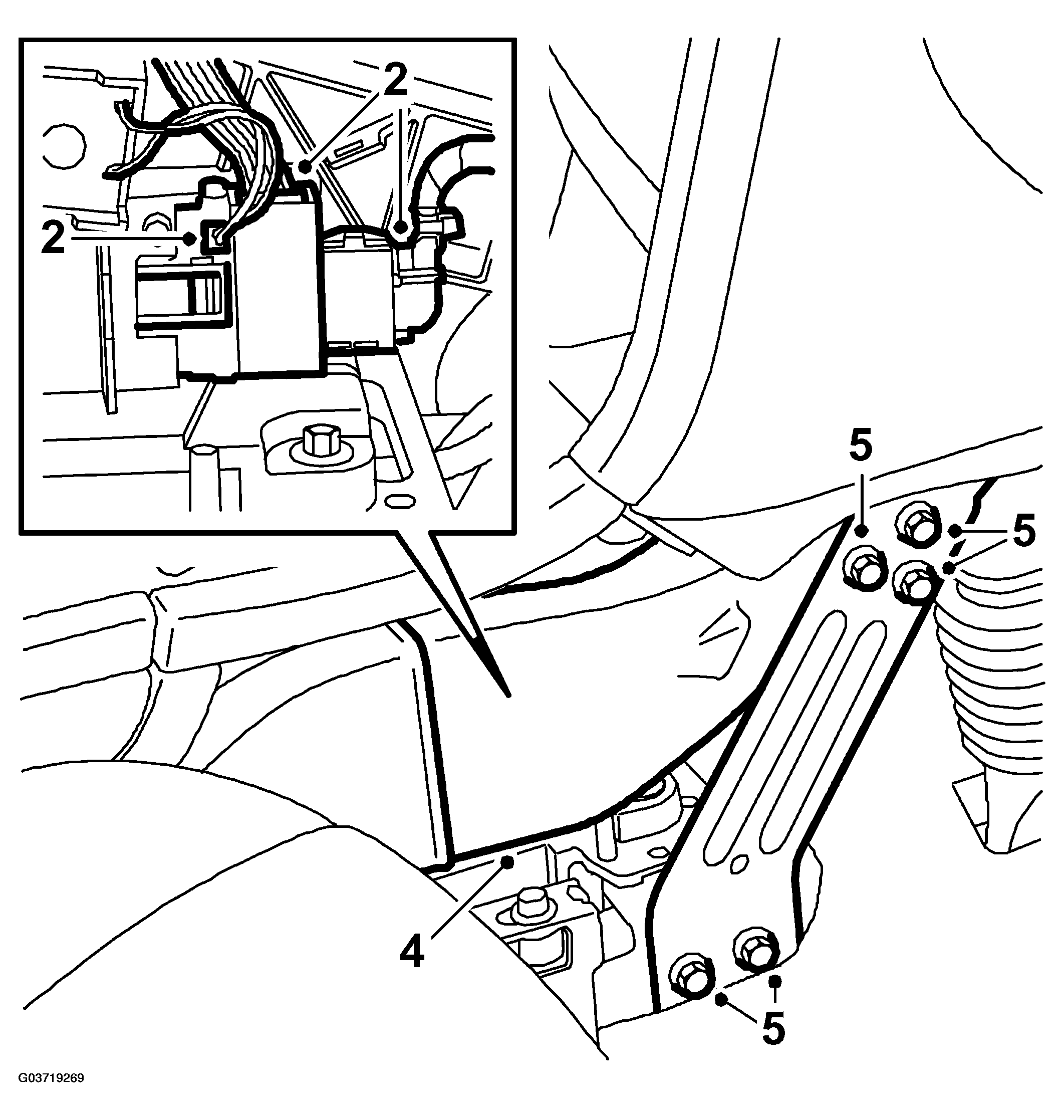

    Fig 1: Illustration For Steps 2, 4 & 5
    G03719269Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  2. Plug in the control module connector, making sure the gear segment on the side of the connector is engaged. Connect the solenoid cable and the ribbon cable.
  3. Check the operation.
  4. Fit the front part of the air duct.
  5. Fit the front stay.
  6. Fit the right side cover on the center console.

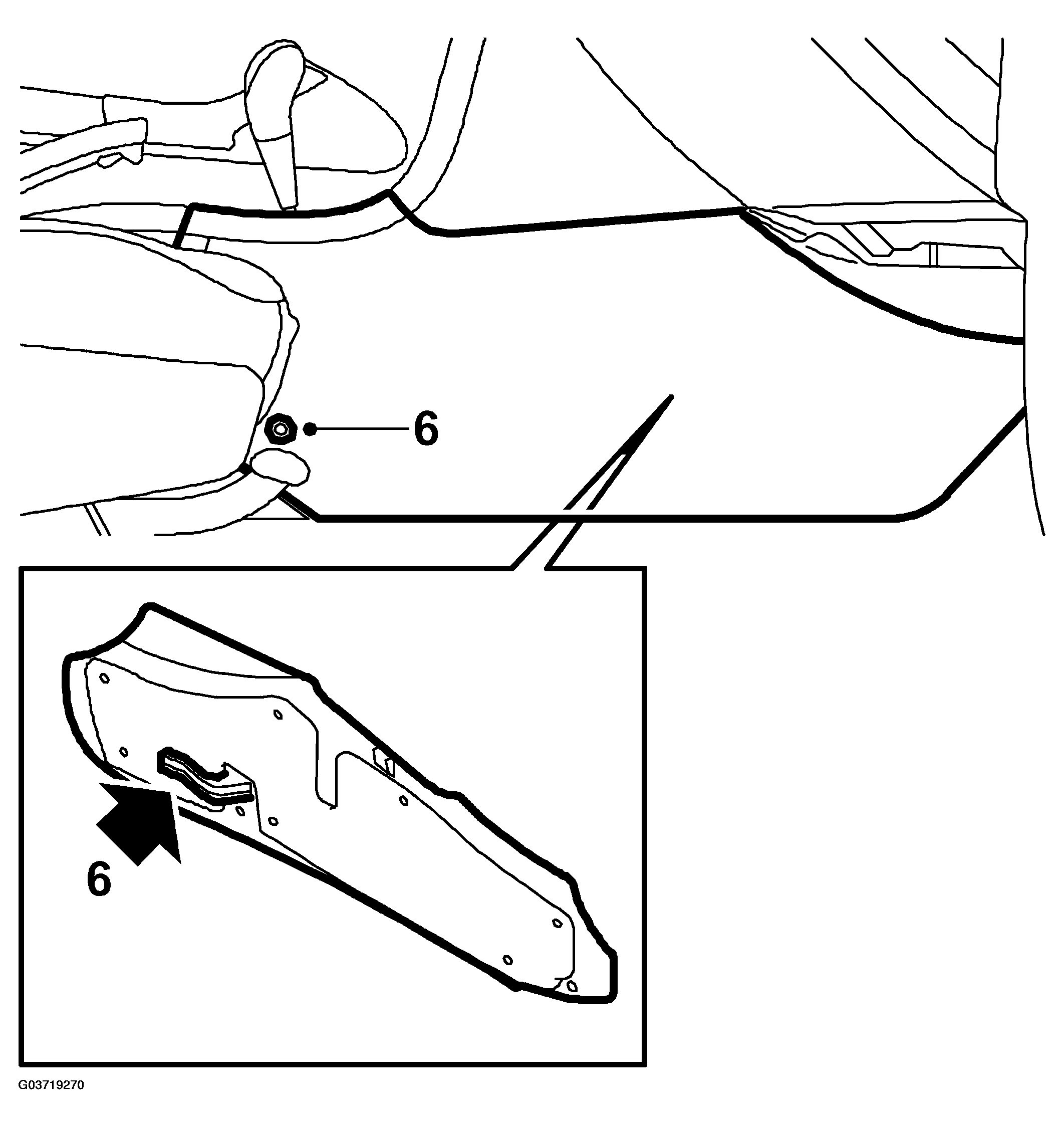

    Fig 2: Illustration For Step 6
    G03719270Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Perform After changing a control module. See PROCEDURE AFTER CHANGING CONTROL MODULE  .
