To remove

Before removal, see PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .

1. Remove the right side cover on the center console (1 screw).

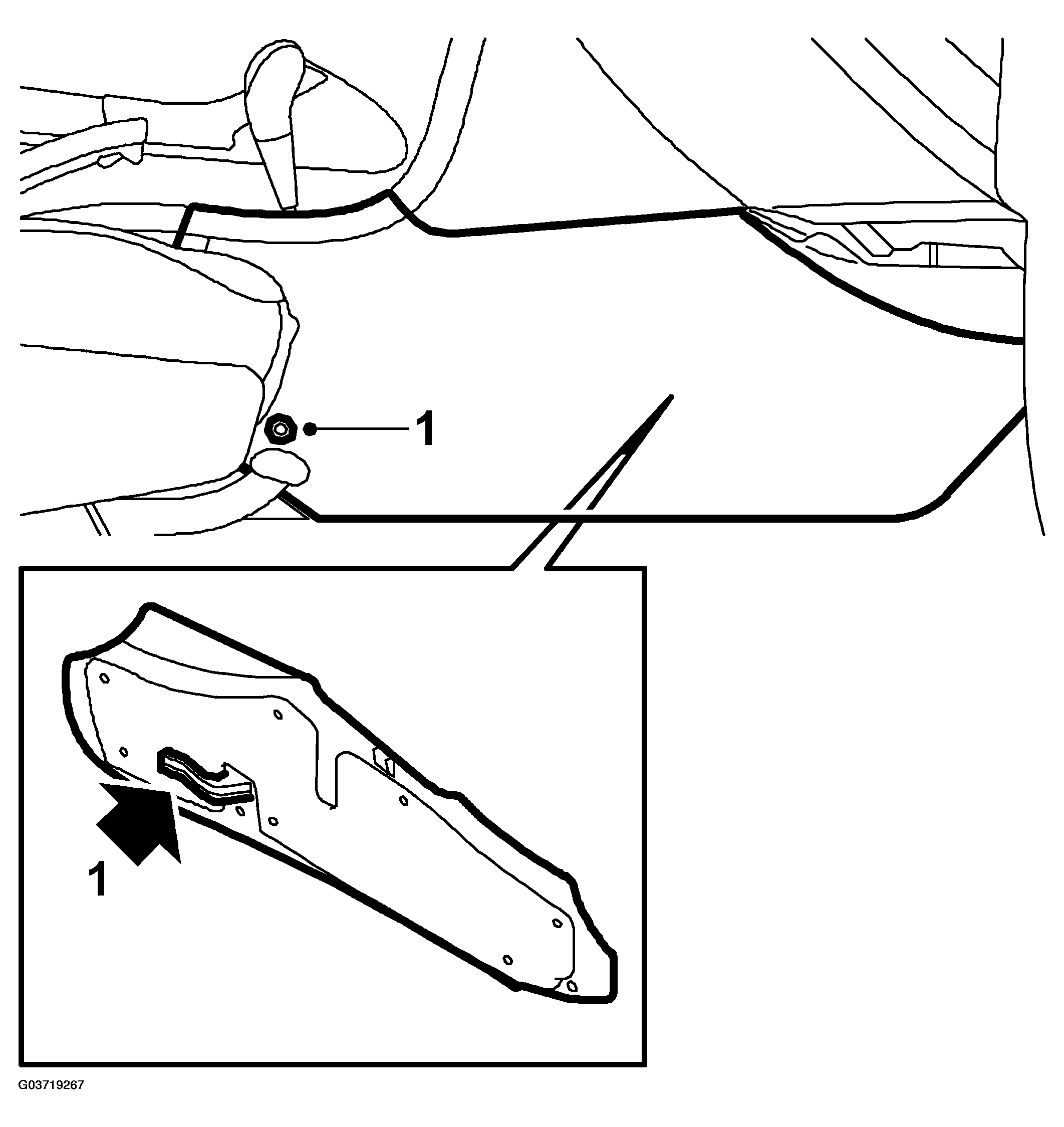

   Fig 1: Illustration For Step 1

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Remove the front stay.

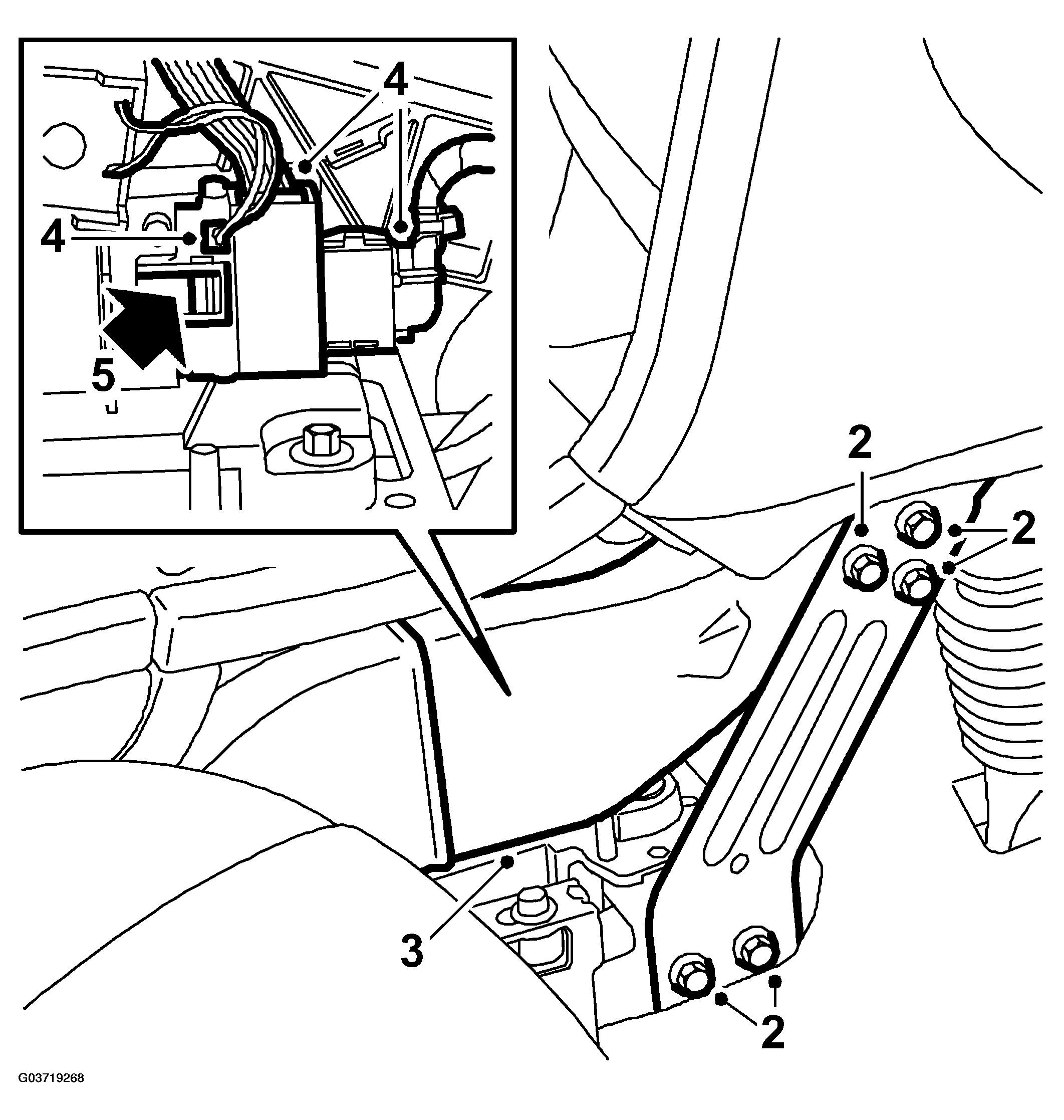

   Fig 2: Illustration For Steps 2-3

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Remove the front part of the air duct.
   IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
4. Unplug the control module connector and the upper ribbon cable and disconnect the solenoid cable.
5. Release the catch with a screwdriver and remove the control module by pulling it forward.
