To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  1. Plug in the connector.

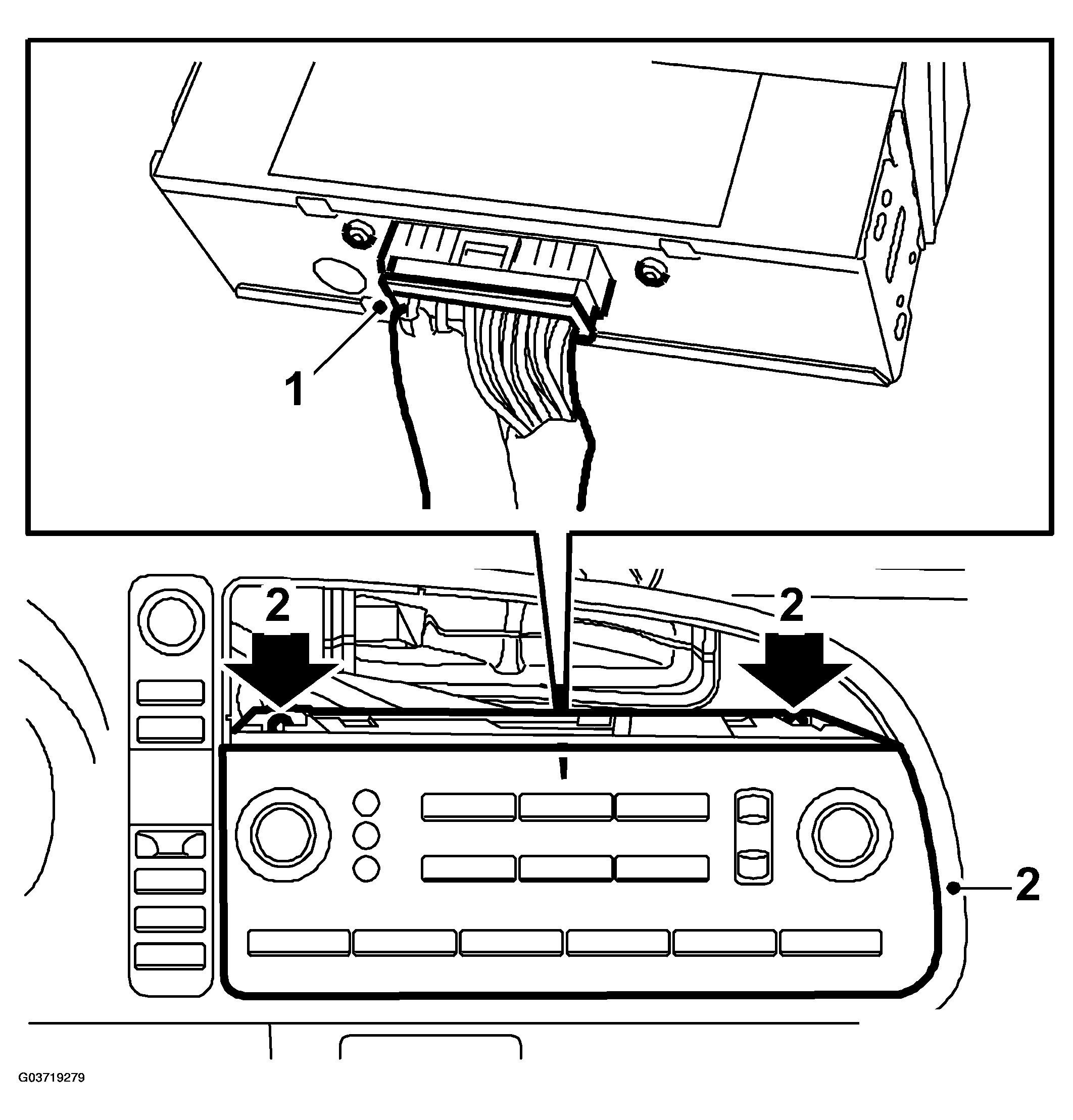

    Fig 1: Illustration For Steps 1-2
    G03719279Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the ICM unit.
  3. Position and fit the air vent.

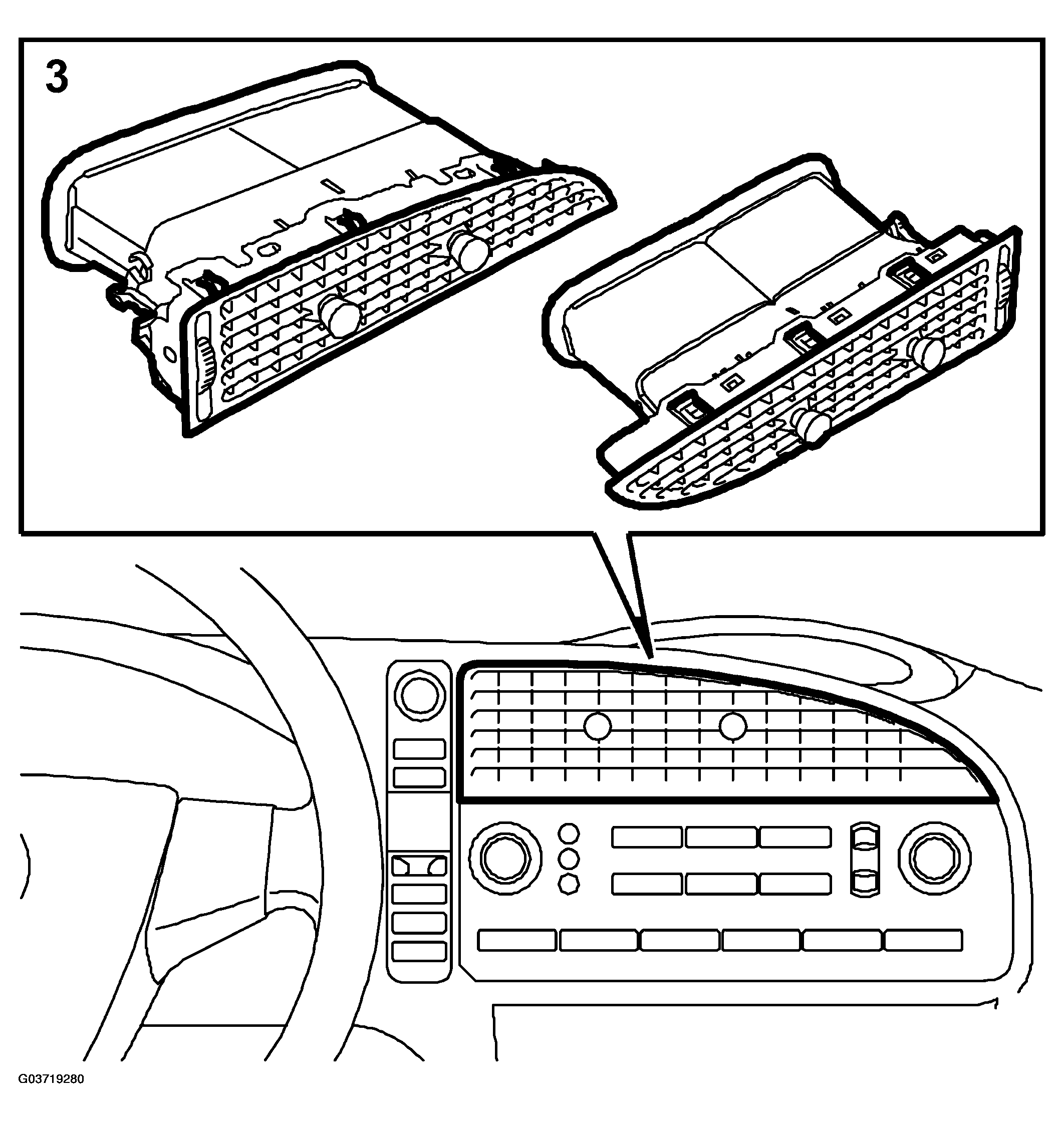

    Fig 2: Illustration For Step 3
    G03719280Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Carry out procedures after changing a control module. See PROCEDURE AFTER CHANGING CONTROL MODULE  .
