To remove

  1. Remove the upper engine cover.

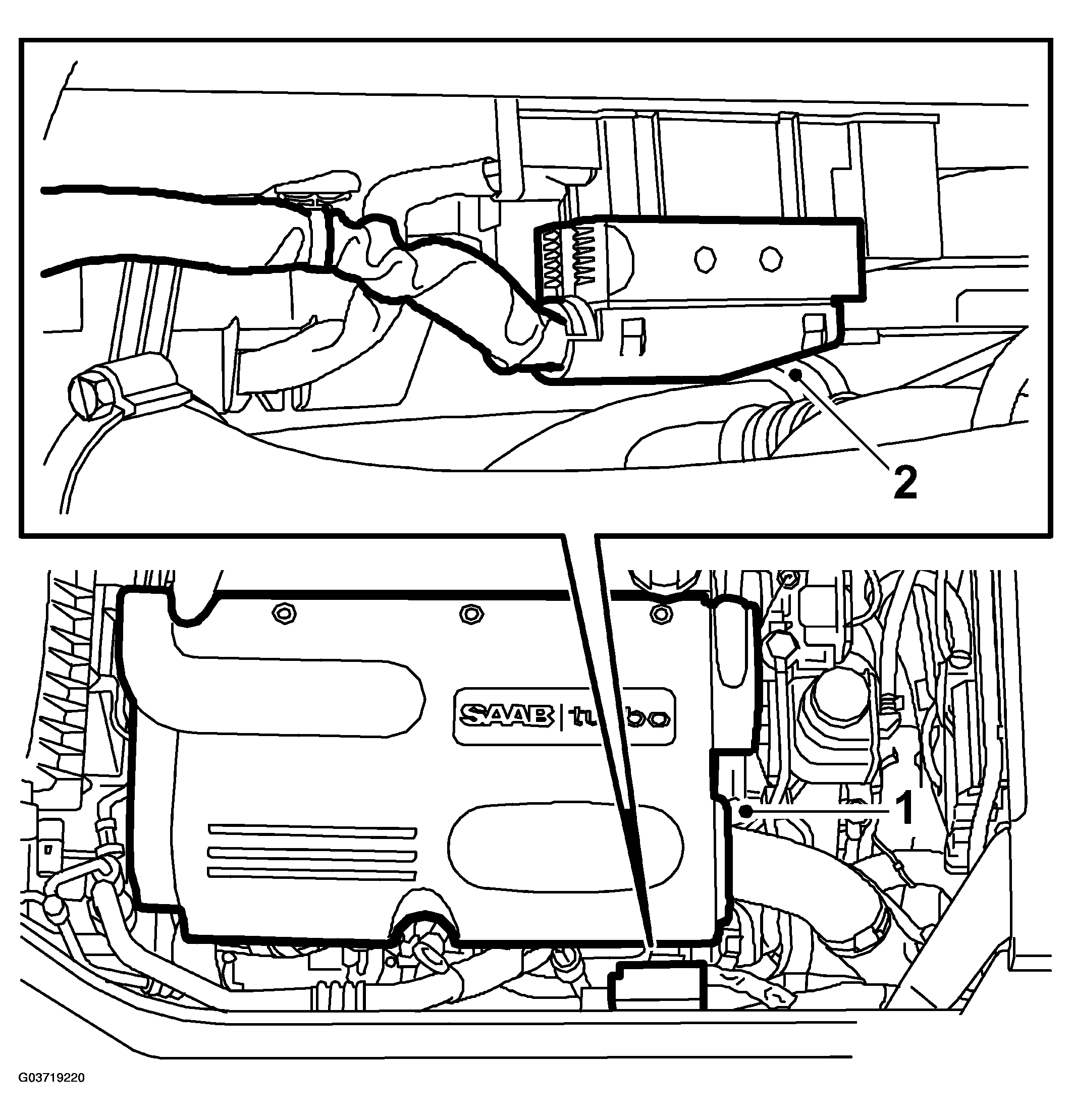

    Fig 1: Illustration For Step 2
    G03719220Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  2. Unplug the connector from the relay unit.
  3. Unplug the connector from the radiator fans.

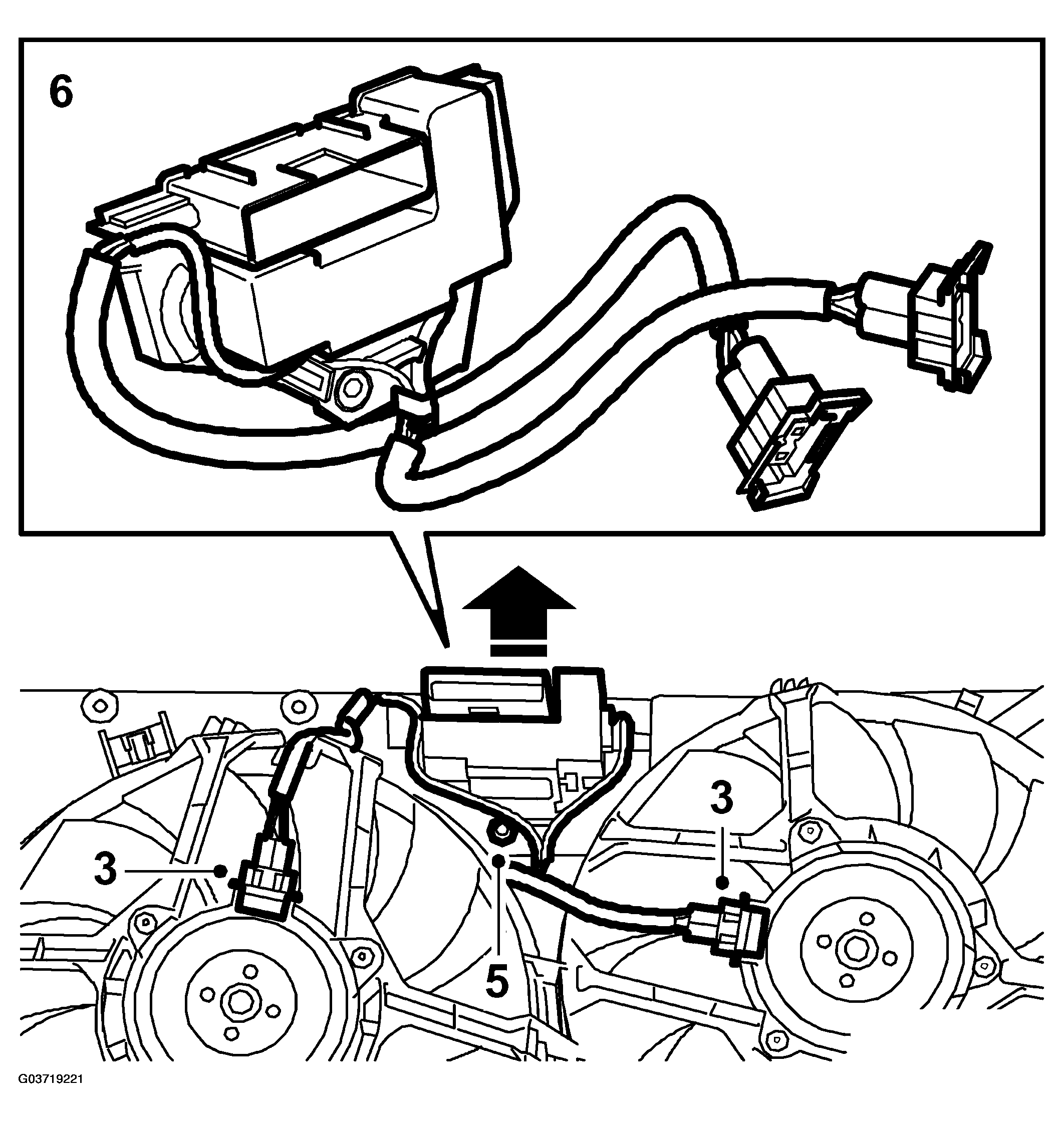

    Fig 2: Illustration For Step 3
    G03719221Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Free the fan wiring from the fastenings on the fan cowling.
  5. Remove the screw that holds the relay unit to the fan cowling.
  6. Remove the relay unit.
