To remove

Carry out procedures before removing a control module. See PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .

1. Open the left-hand hatch in the luggage compartment.
2. Remove the clips securing the luggage compartment mat. Use special tool 84 71 179 Removal tool, clips.

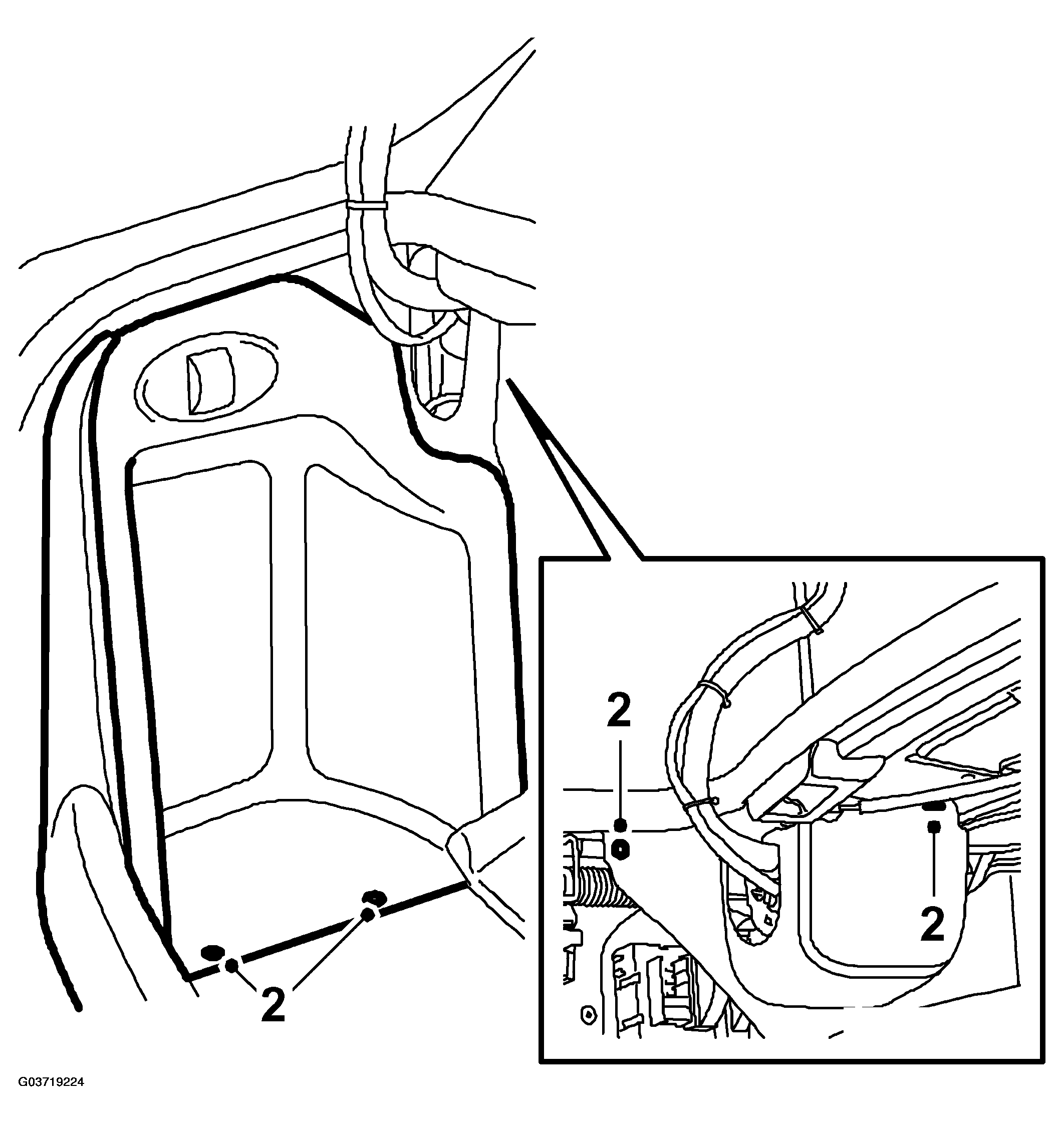

   Fig 1: Illustration For Step 2

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Fold back the carpet.
4. Remove the SPA module from the main fuse box.

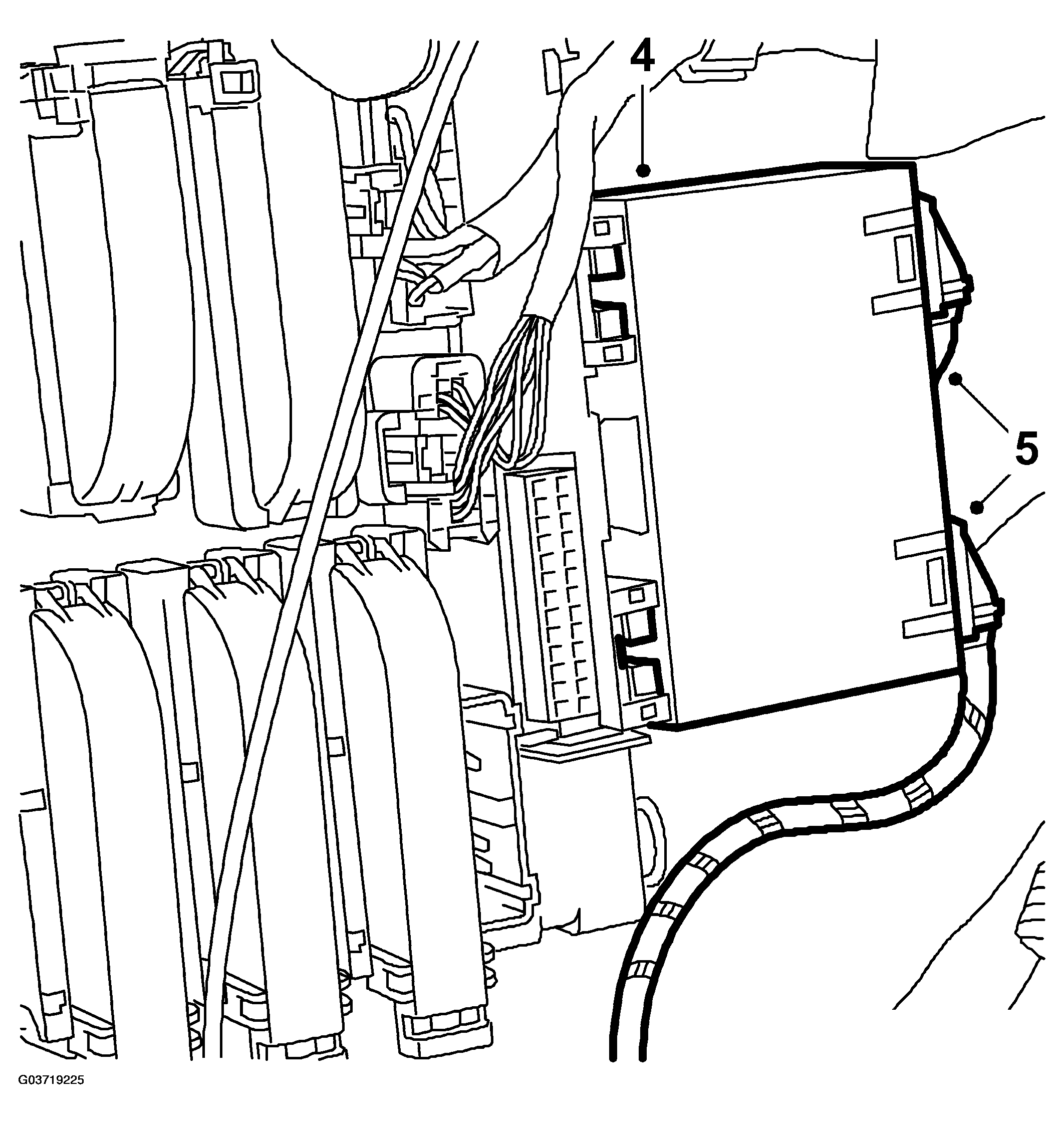

   Fig 2: Illustration For Steps 4-5

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
   IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
5. Unplug the control module connector.
