SPA control module (630), CV: Removal

  1. Carry out procedures before removing a control module. See PROCEDURES BEFORE DISMANTLING CONTROL MODULE  .

    Remove the side trim on the left-hand side of the luggage compartment.

  2. Remove the control module from the main fuse box.

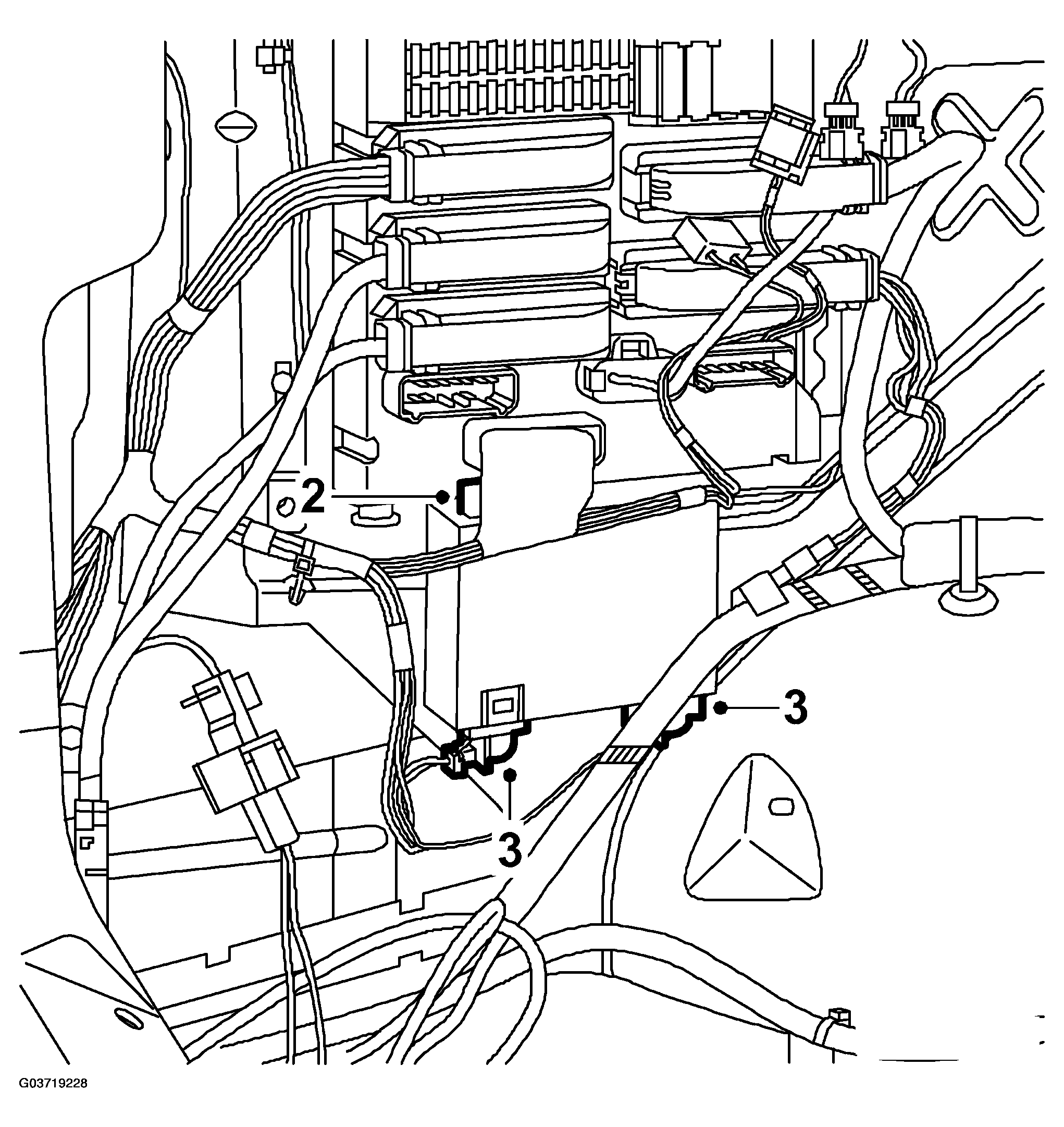

    Fig 1: Illustration For Steps 2-3
    G03719228Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  3. Unplug the control module connector.
