To fit

  1. Check that the gasket sits correctly on the new control module.

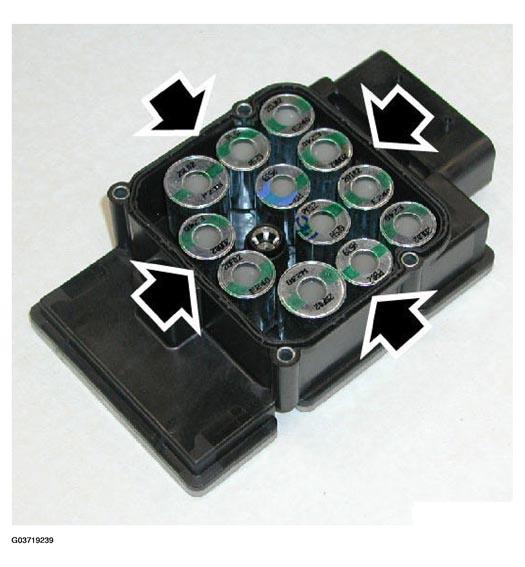

    Fig 1: Checking Gasket Sits Correctly On New Control Module
    G03719239Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the inner bottom rear screw and fit the control module to the assembly.

    Fit the bolts.

    Tightening torque 2.5 Nm (1.8 lbf ft)

    NOTE: Tighten the bolt alternately.
  3. Put the assembly in place with the guide pin in the rubber bushing. Make sure the brake pipes are secured in the clips on the MacPherson strut tower.

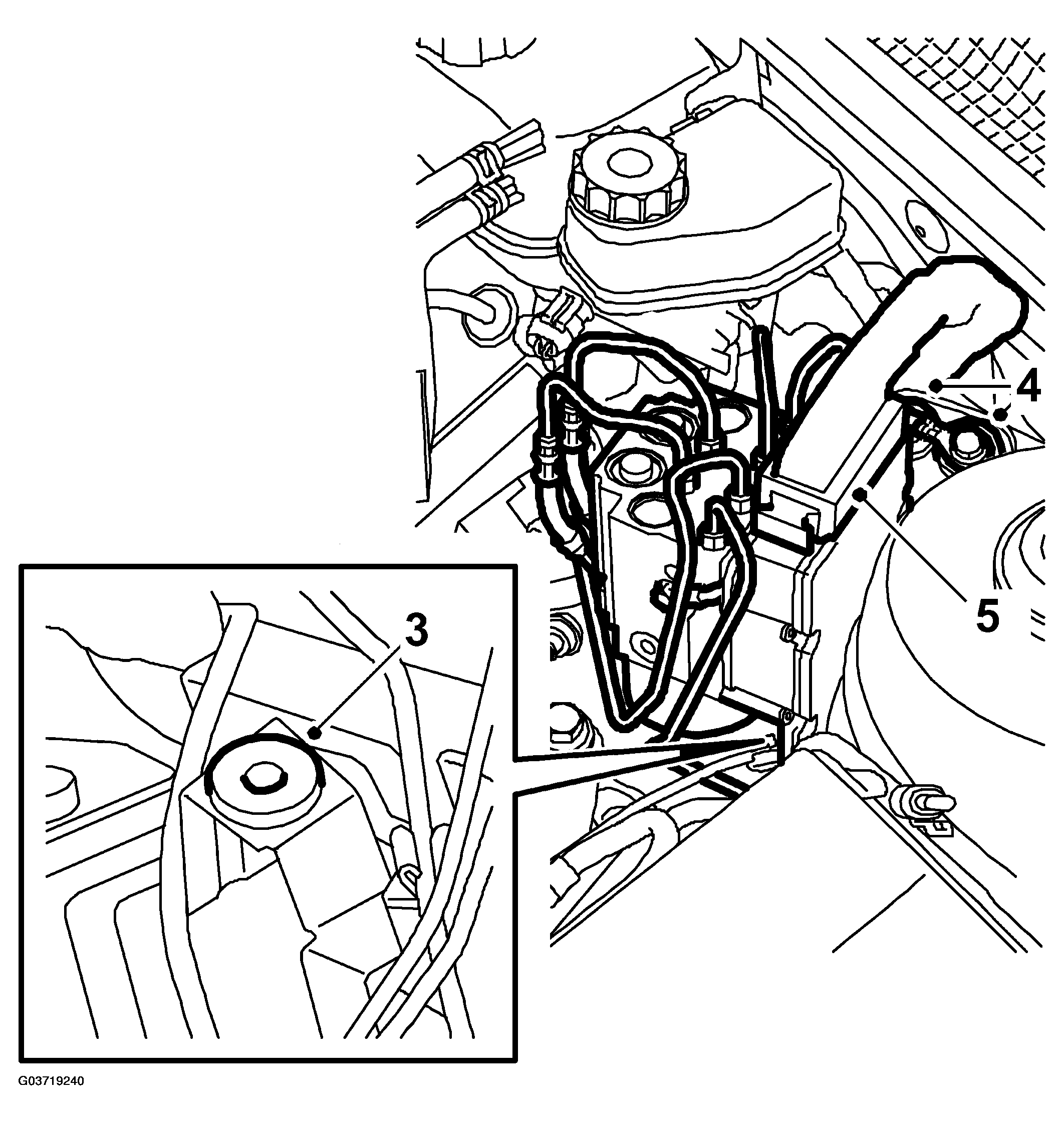

    Fig 2: Illustration For Steps 3-5
    G03719240Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the bolts and the ground line to the spring strut (on cars with ground line). Make sure the washer is in place under  the cable terminal.

    Tightening torque 25 Nm (18 lbf ft)

    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  5. Attach the connector to the control module.
  6. Refit the battery cover and battery.
  7. Carry out Procedure after disconnecting the battery. See PROCEDURES AFTER DISCONNECTING THE BATTERY .
  8. If control module is changed:  Carry out the procedure for changing the control module.
