To fit

  1. Fit the bracket to the telematics unit.
  2. Place the telematics unit in fitting position.

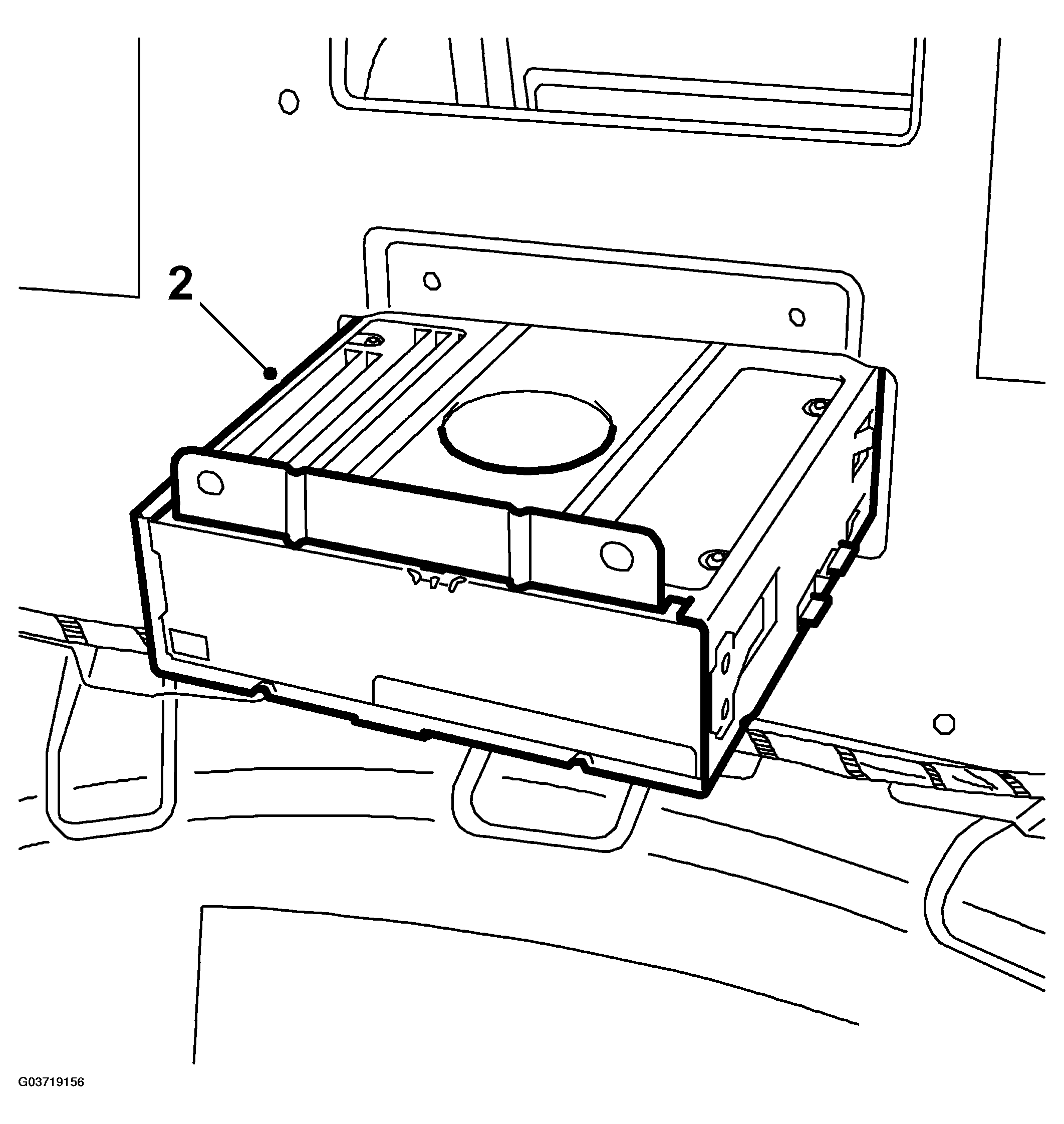

    Fig 1: Illustration For Step 2
    G03719156Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
  3. Plug in the connector.

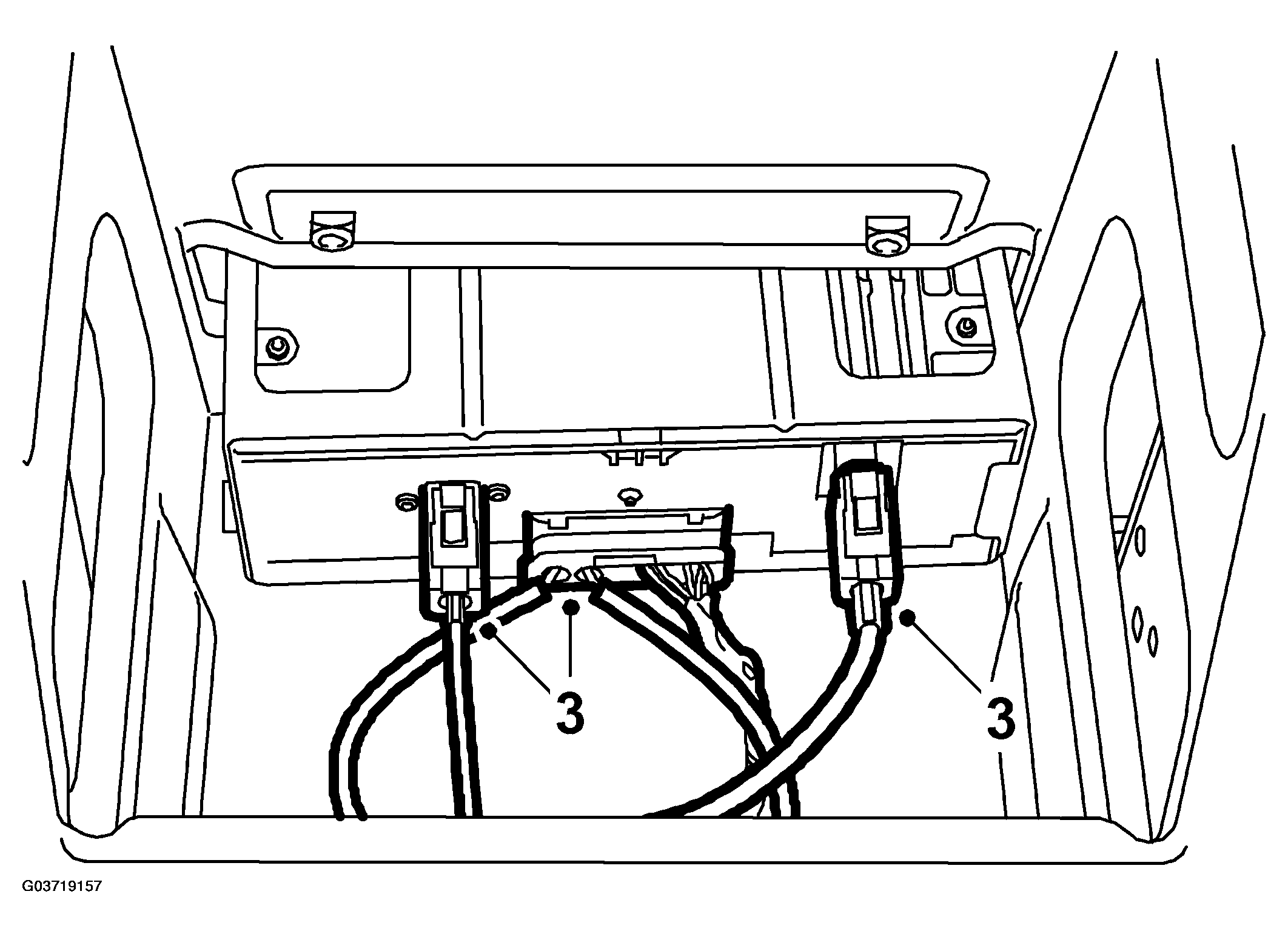

    Fig 2: Illustration For Step 3
    G03719157Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the two bracket bolts.

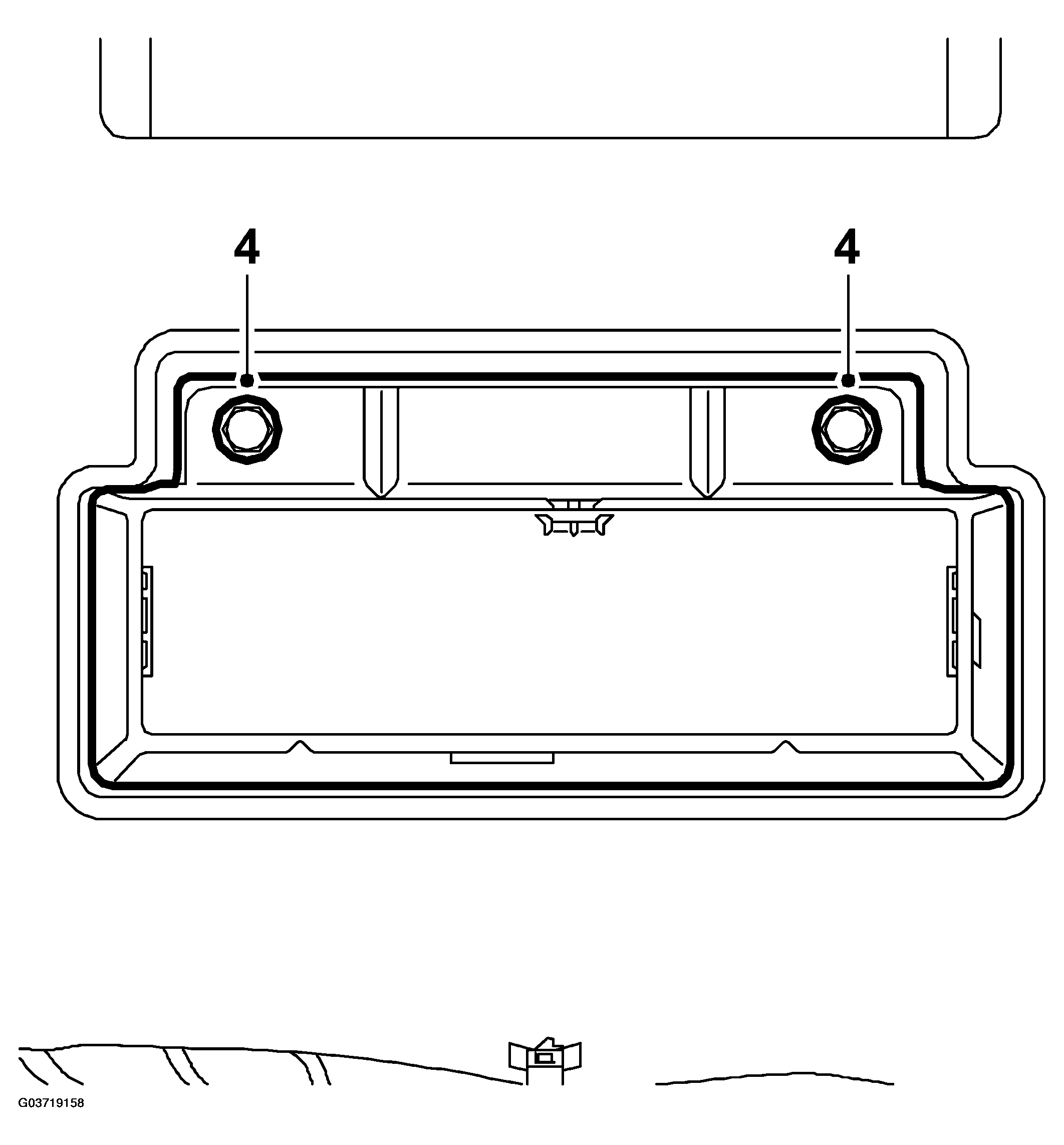

    Fig 3: Illustration For Step 4
    G03719158Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the front luggage compartment trim.

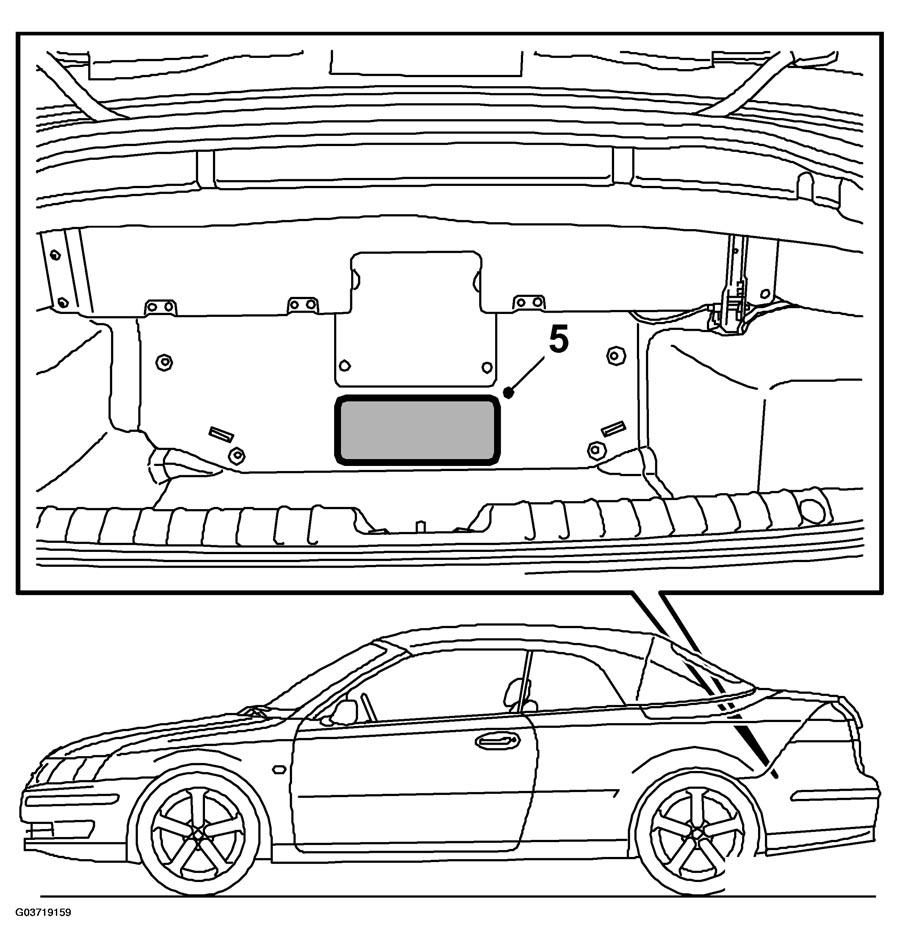

    Fig 4: Illustration For Step 5
    G03719159Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Carry out procedures after changing a control module. See PROCEDURE AFTER CHANGING CONTROL MODULE  .
