To fit

1. Fit the control module. Do not forget the ground cable.

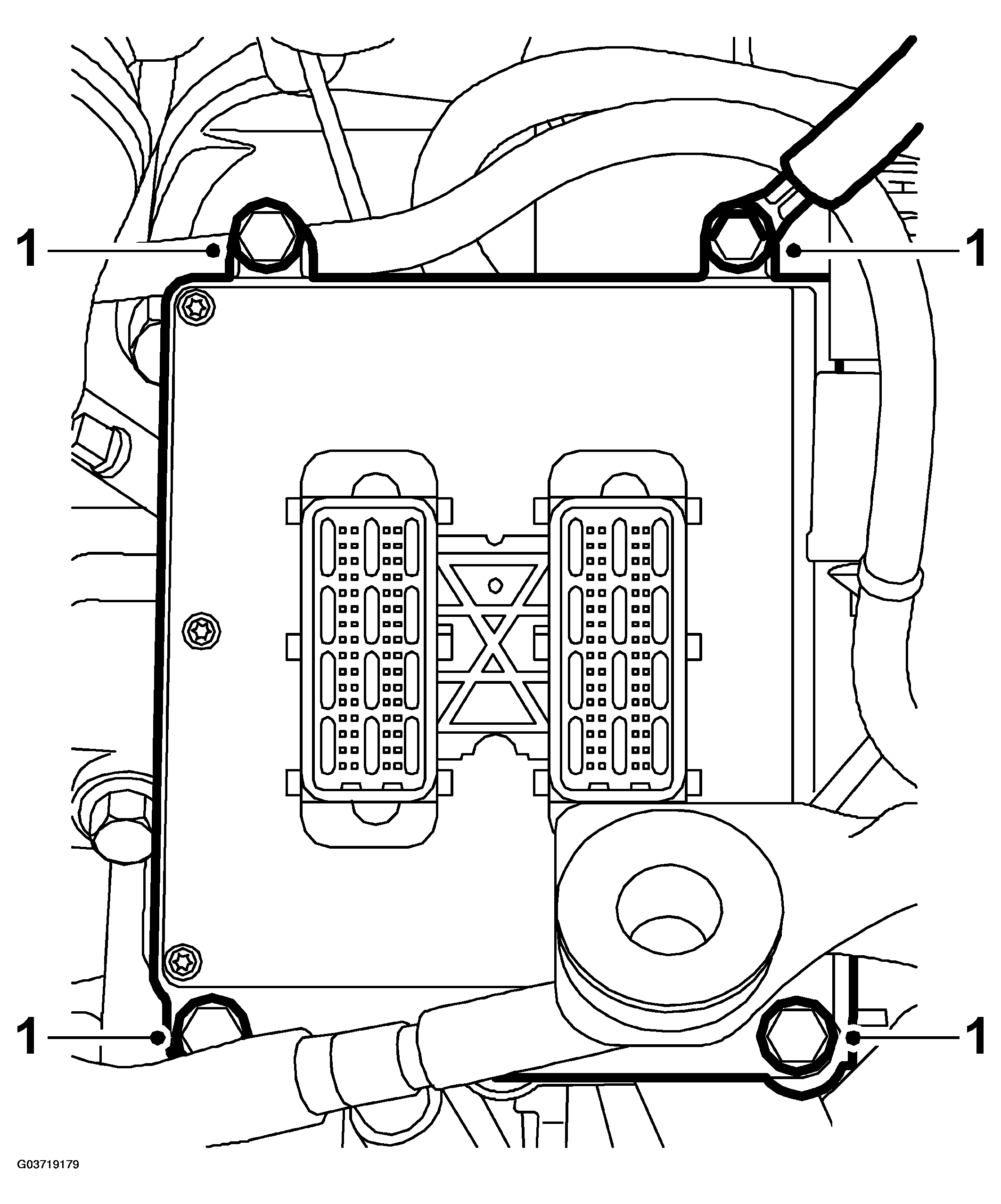

   Fig 1: Illustration For Step 1

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

   Tightening torque 10 Nm (7 lbf ft)

   IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION  .
2. Plug in the connectors and check that they are locked.

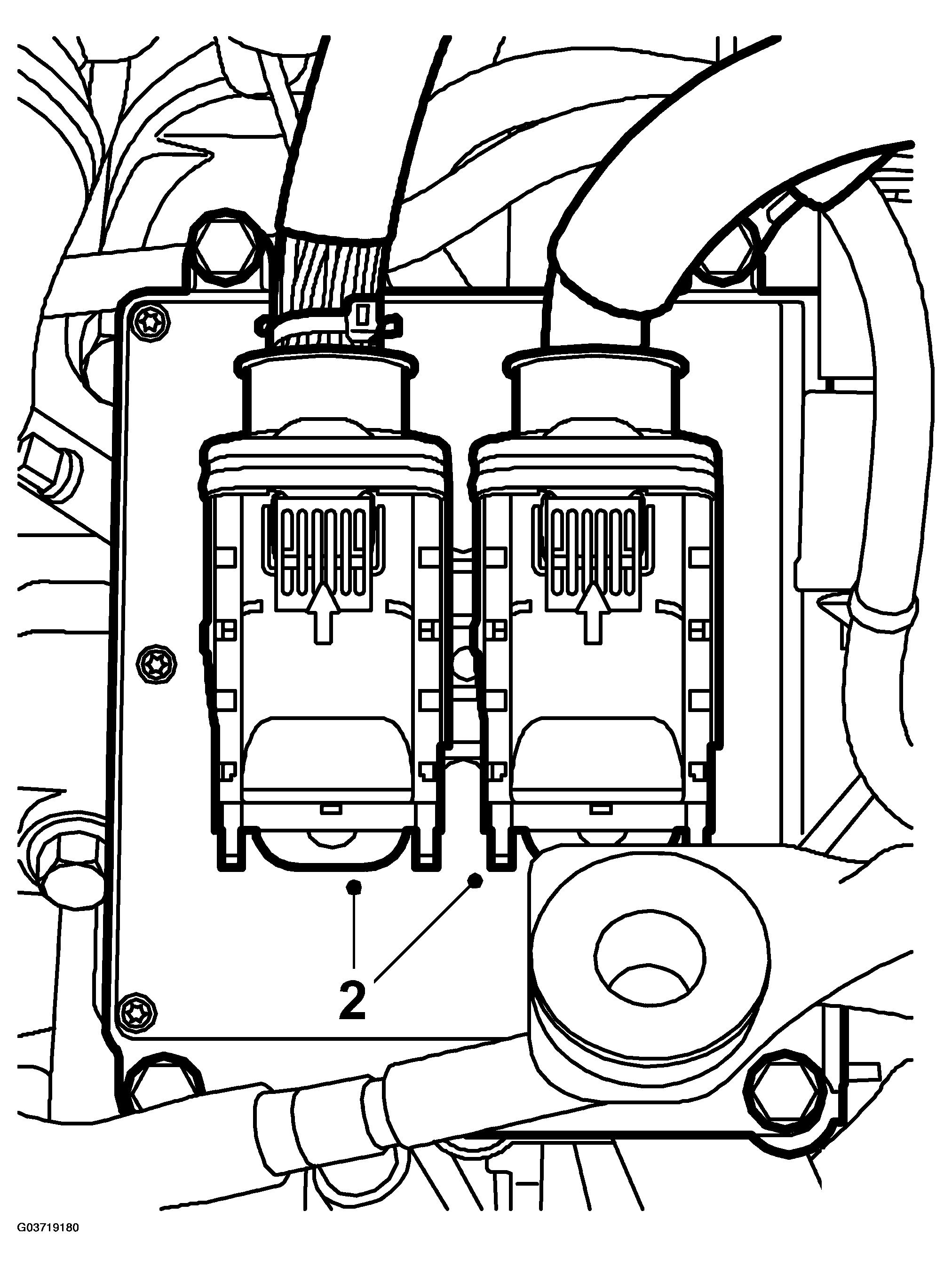

   Fig 2: Illustration For Step 2

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Fit the upper engine cover.

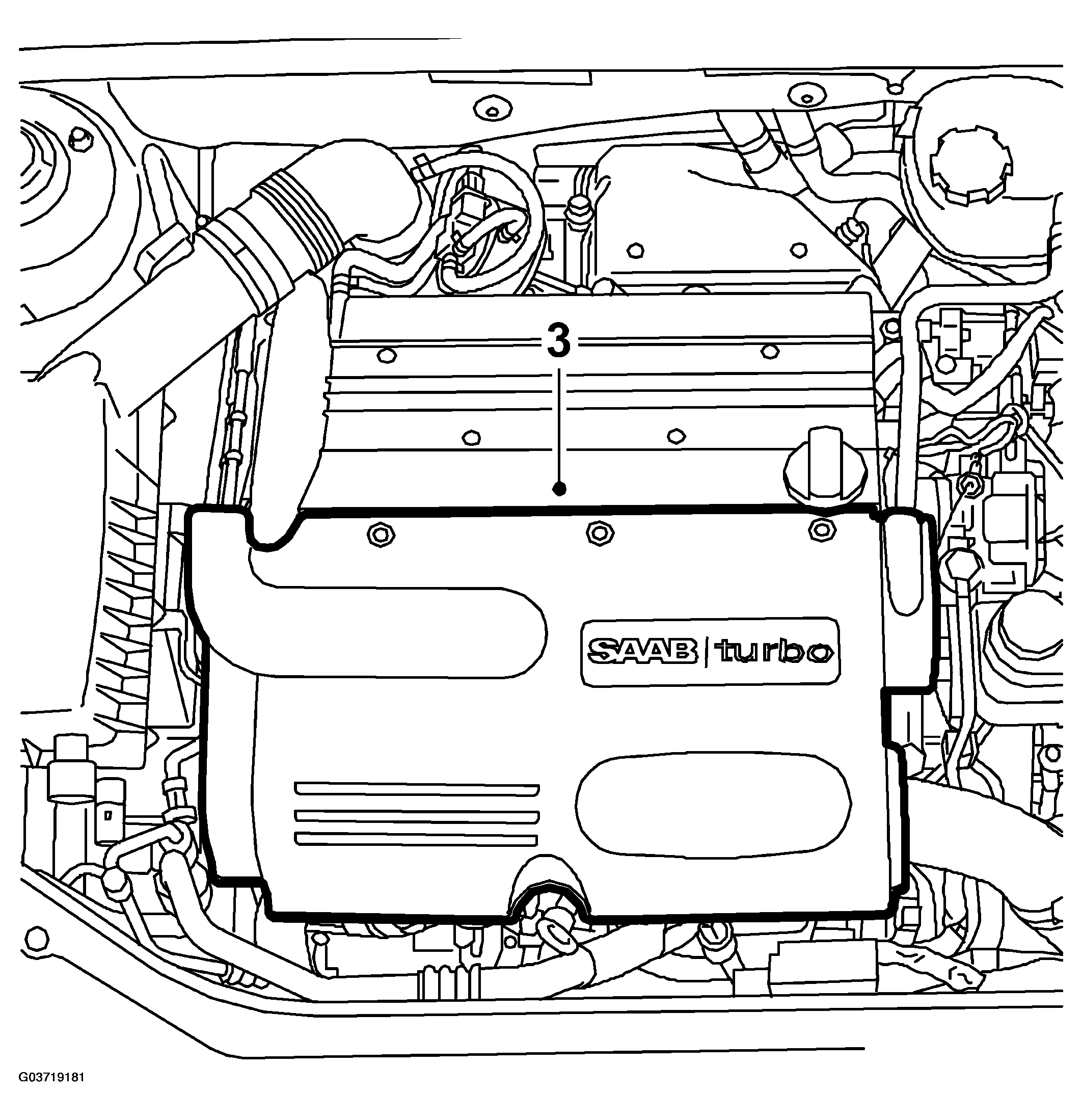

   Fig 3: Illustration For Step 3

   Courtesy of SAAB-SCANIA OF AMERICA, INC.

Carry out actions after replacement of control module. See PROCEDURE AFTER CHANGING CONTROL MODULE  .
