Control module, PSG 16, 4-cyl diesel, switch K (595K): Location

Location: engine front

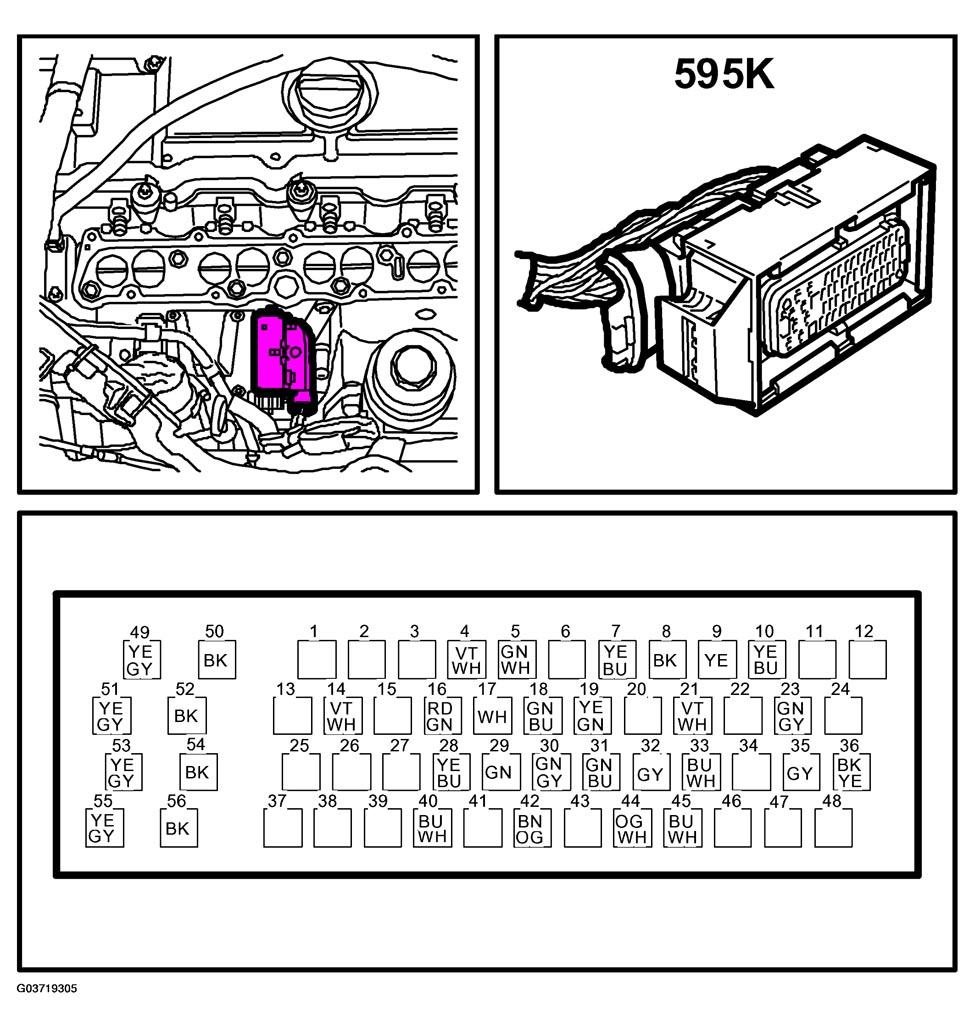

Fig 1: Identifying Control Module, PSG 16, 4-Cyl Diesel, Switch K (595K) Connector Pinouts
G03719305Courtesy of SAAB-SCANIA OF AMERICA, INC.
