Connected components
GROUNDING POINT G34S COMPONENT DESCRIPTION
| Via CRIMP J108, MAIN HARNESS | |
| 102 | Relay, fuel pump |
| 323 | Motor, fuel pump |
| 323a | Engine, fuel pump, auxiliary/parking heater |
| 575RR | Control module, window lift, rear RH (CV) |
| 702P/D | Control module, front door, RH |
| 702RR | Control module, rear door, RH (4D) |
| Via Crimp J135, inner door harness in the front right door, which is connected to crimp J108 | |
| 209/P/D | Lamp, front right door courtesy lighting |
| 388 | Switch, boot lid (RHD) |
| 514P/D | Switch, simultaneous central locking, front right door |

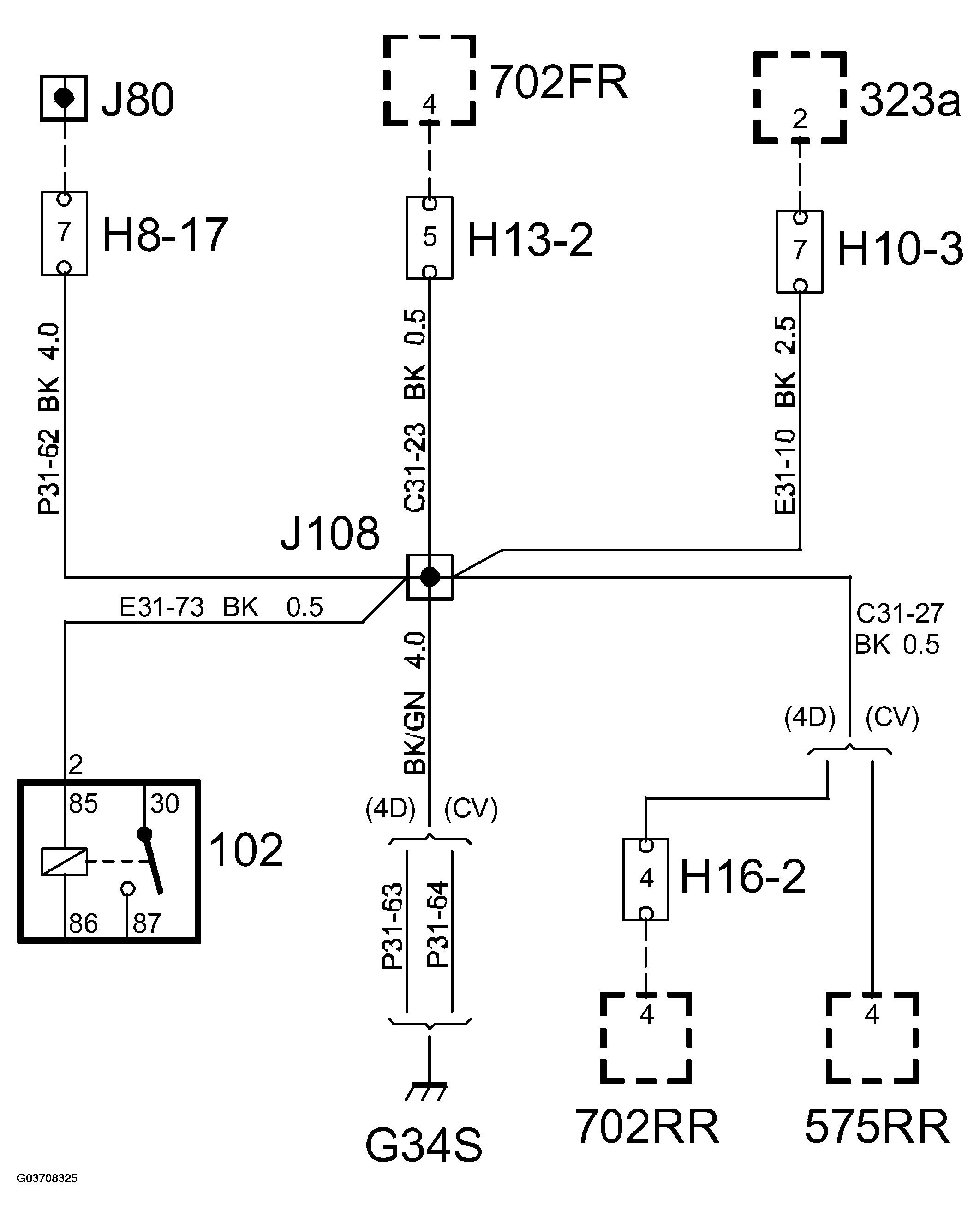

Crimp J108

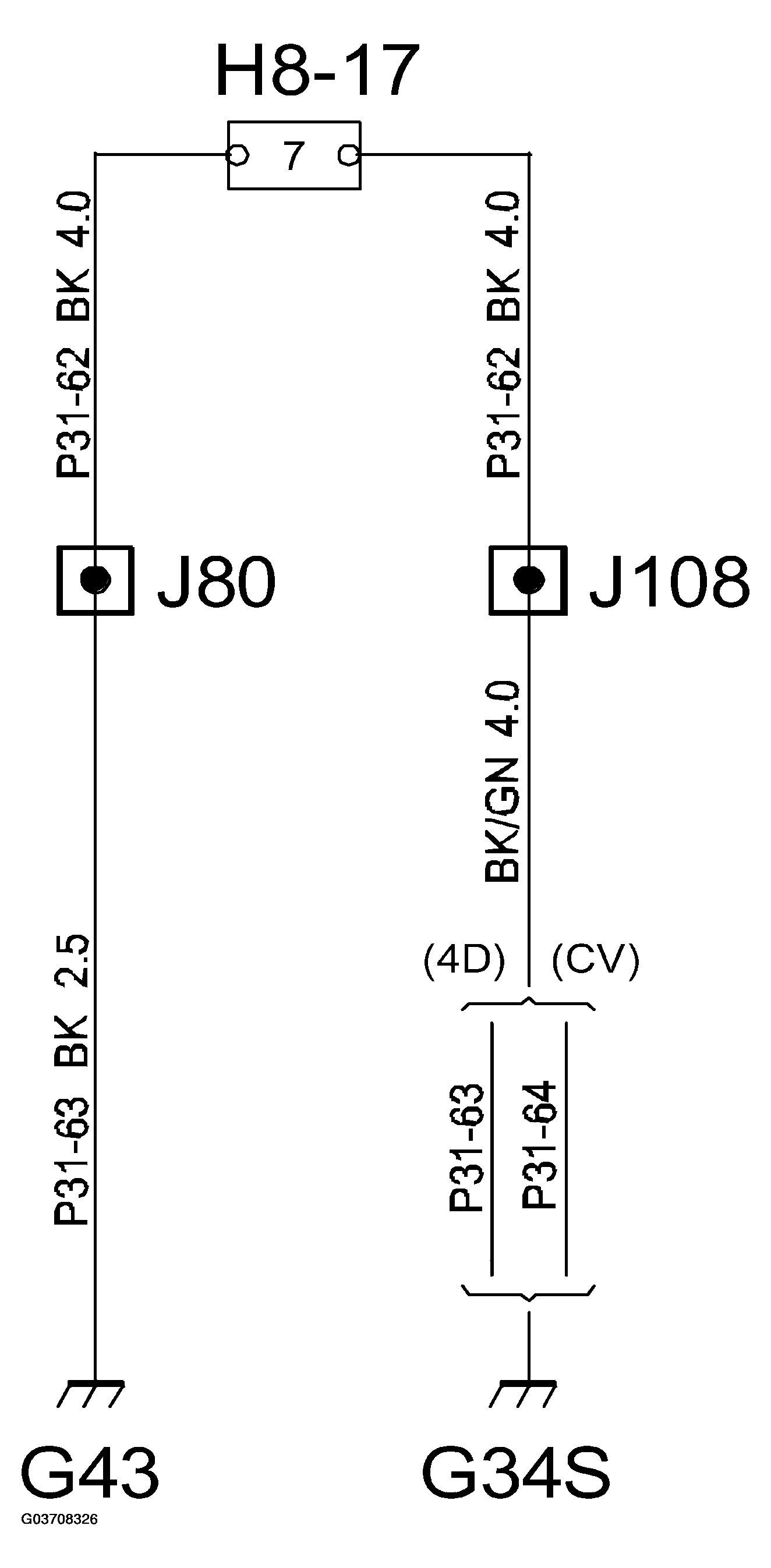

Connection to G43
