To remove

  1. Remove the upper engine cover.

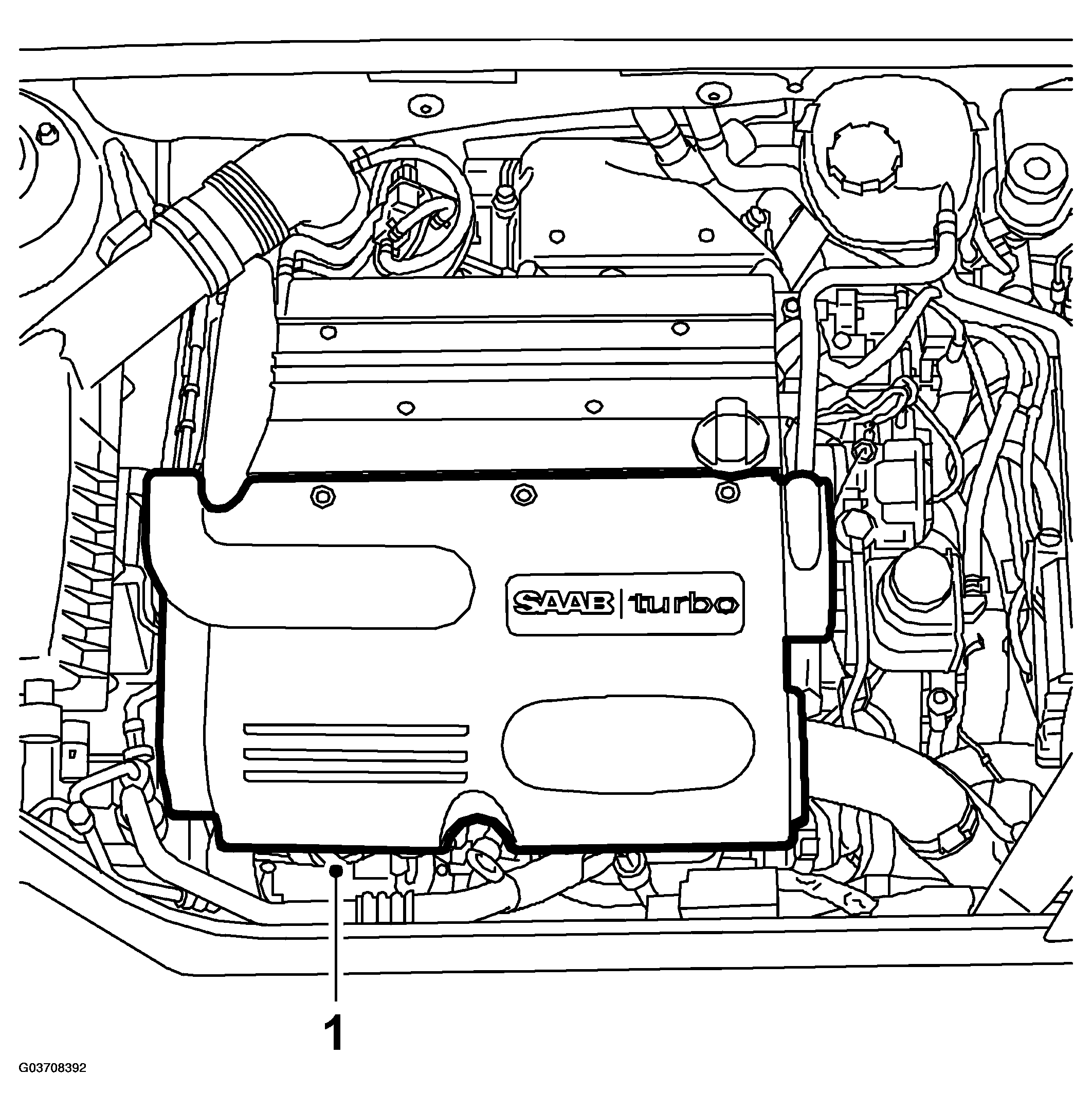

    Fig 1: Illustration For Step 1
    G03708392Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Place a receptacle to collect spilled oil.
  3. Unplug the connector.

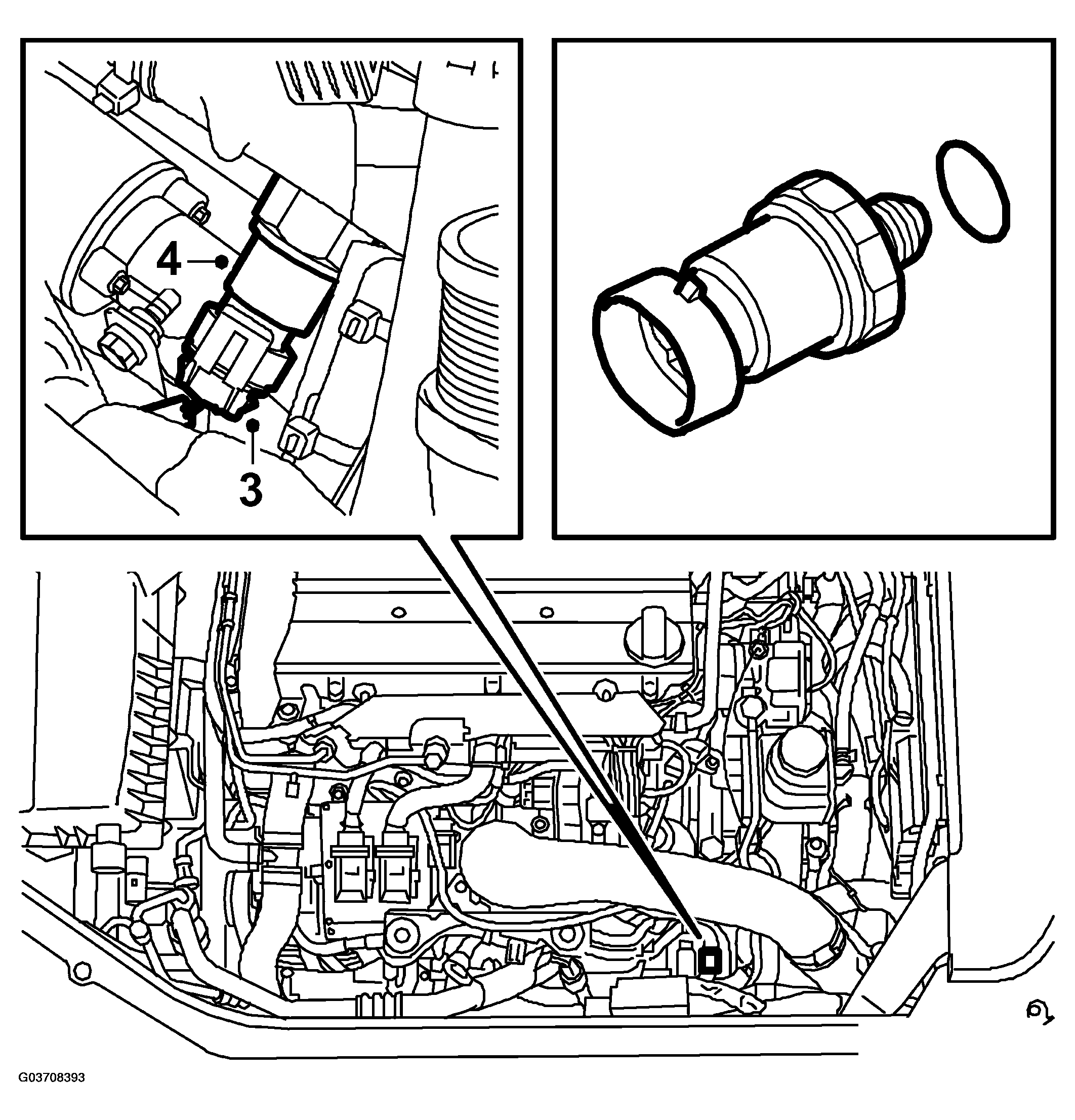

    Fig 2: Illustration For Step 3-4
    G03708393Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the oil pressure switch. Tool 83 95 187 (27 mm fitting).
