Fuse 21, dashboard electrical center 22: Notes

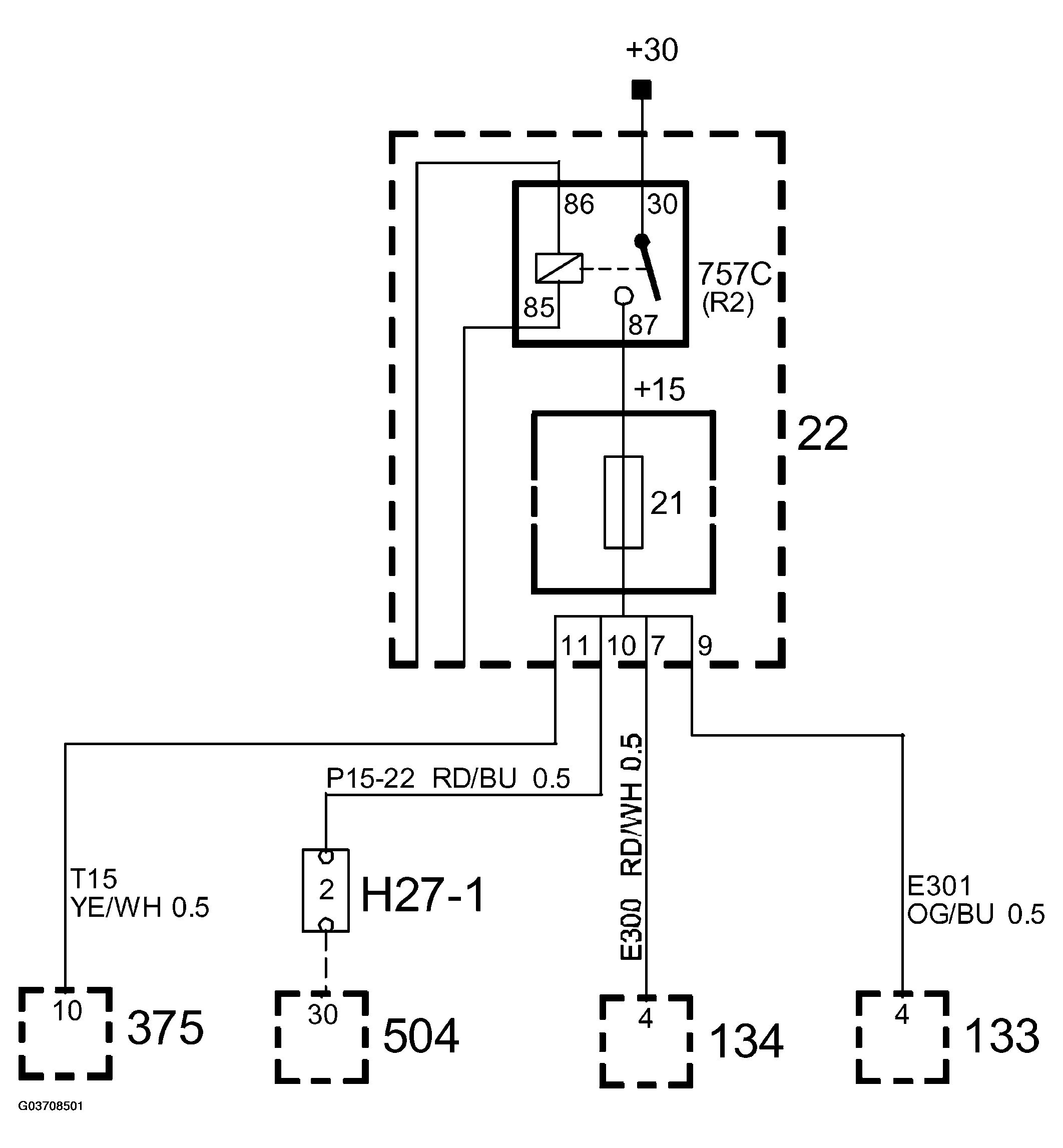

Fig 1: Identifying Fuse 21 And Dashboard Electrical Centre 22 Wiring Diagram
G03708501Courtesy of SAAB-SCANIA OF AMERICA, INC.
