Pressure sensor, EVAP (585): Location:

on fuel tank by fuel pump

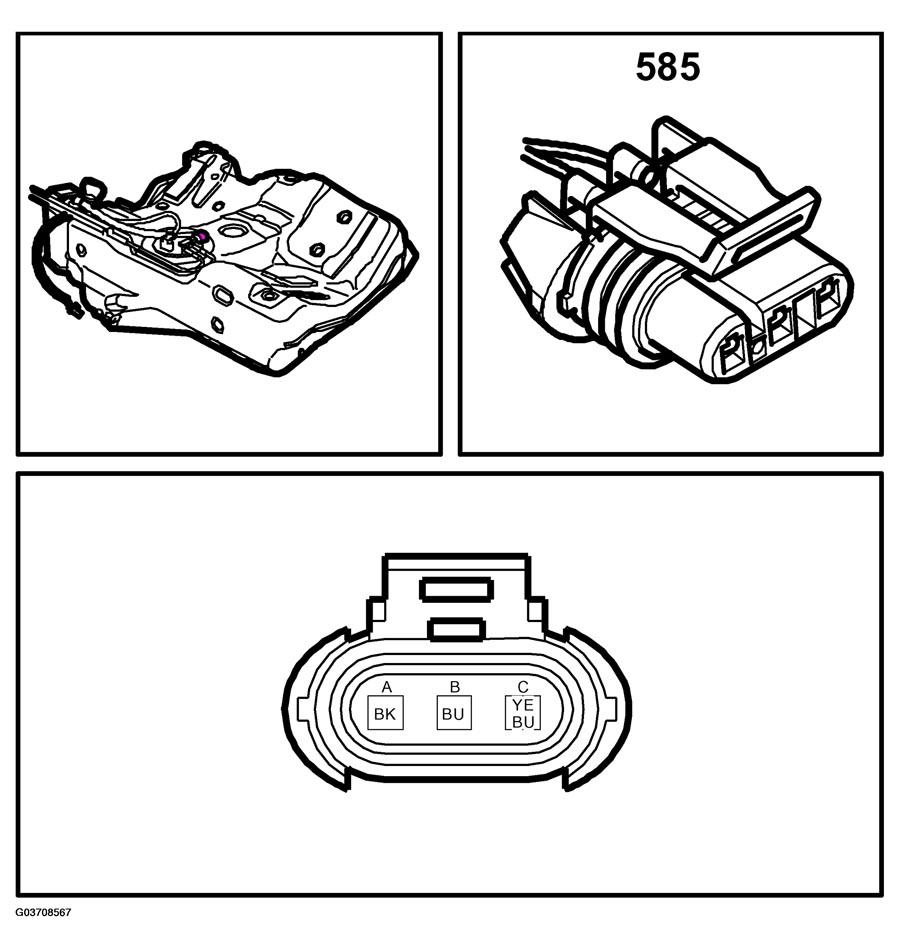

Fig 1: Identifying Pressure Sensor EVAP (585)
G03708567Courtesy of SAAB-SCANIA OF AMERICA, INC.
