Check Engine lamp, faulty function: Notes

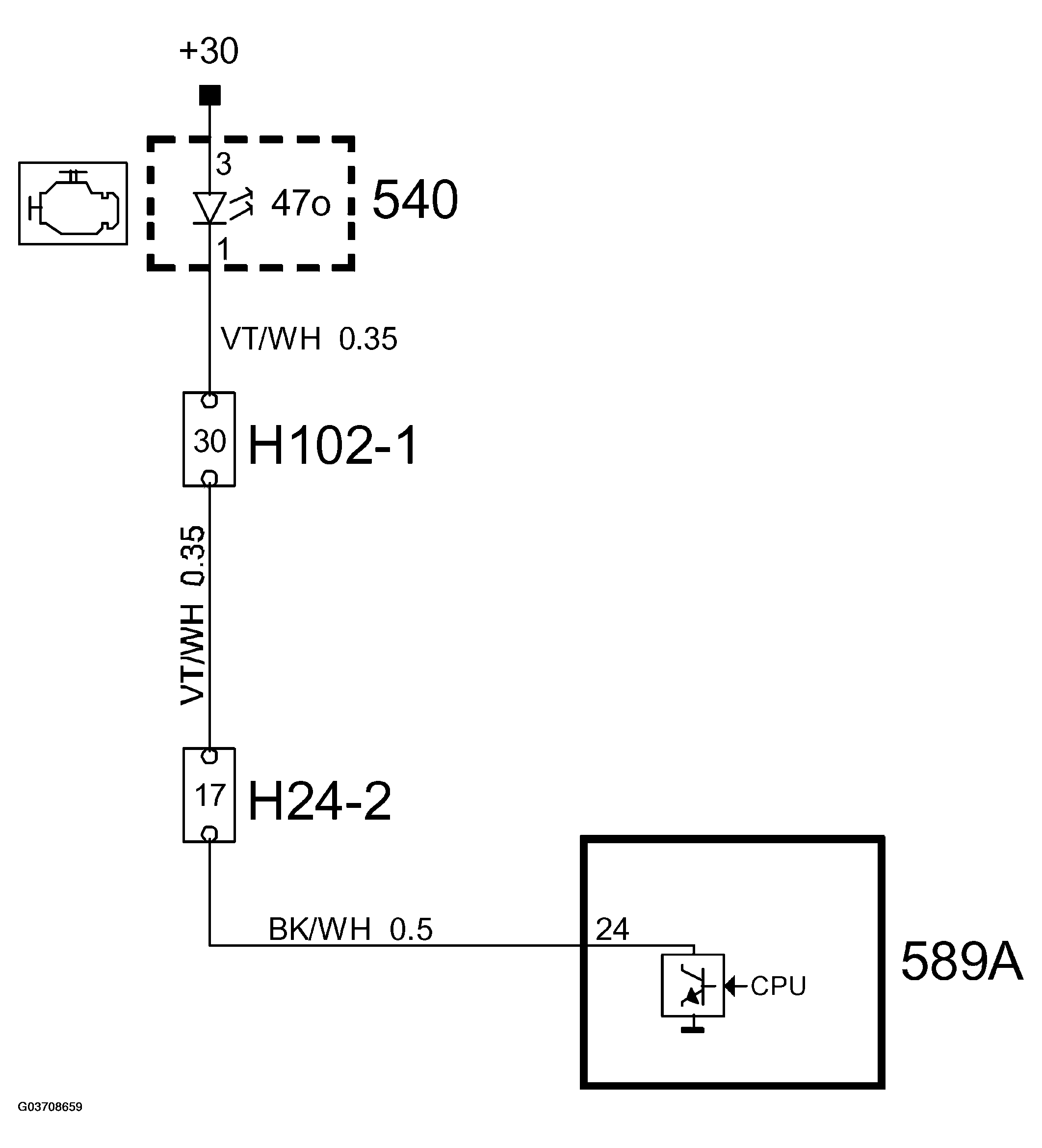

Fig 1: Identifying Engine Lamp Faulty Function Wiring Diagram
G03708659Courtesy of SAAB-SCANIA OF AMERICA, INC.
