Fuel pressure regulator

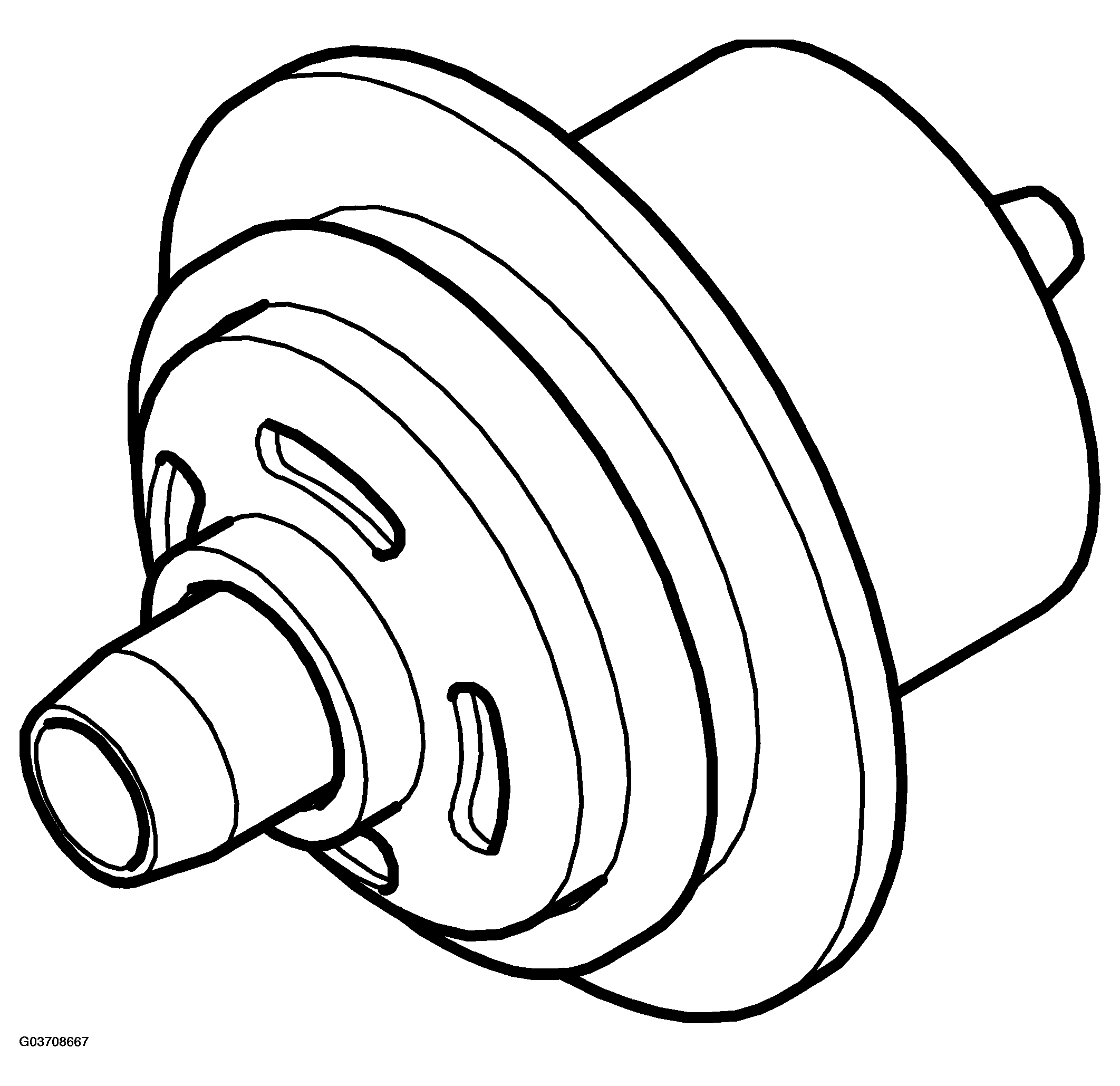

Fig 1: Identifying Fuel Pressure Regulator
G03708667Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL PRESSURE REGULATOR TECHNICAL DATA

Fuel pressure bar 3,0+/-0,1
Pressure, air side   Connected to intake manifold
