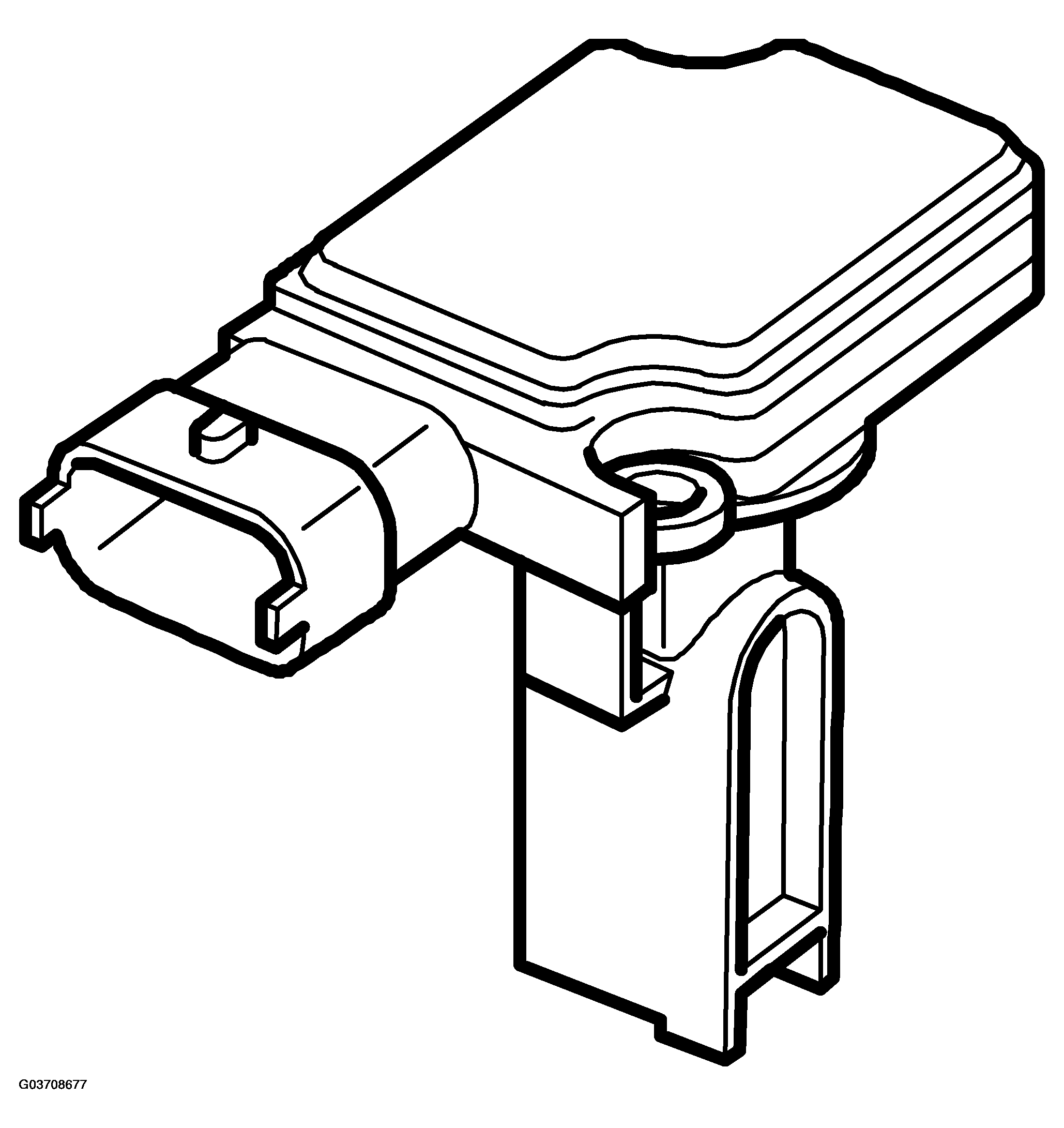

Mass air flow sensor (205), T8
MASS AIR FLOW SENSOR TECHNICAL DATA
| Type | Heat resistor, the temperature of which is kept 220°C above the ambient temperature. |
|---|---|

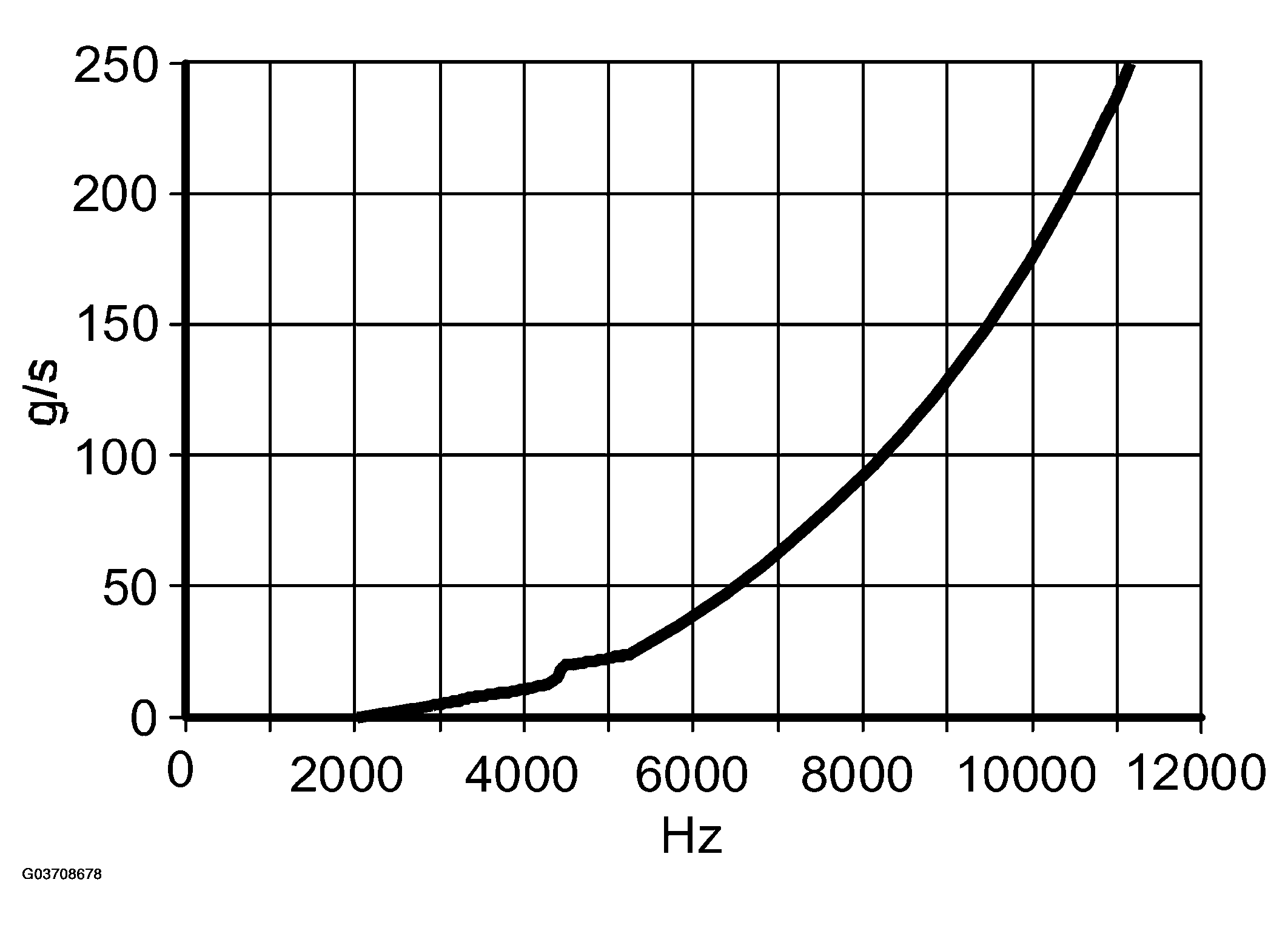

| Airflow (g/s) | Hz |
| 2 | 2003 |
| 3 | 2357 |
| 5 | 2866 |
| 6 | 3069 |
| 7 | 3259 |
| 8 | 3431 |
| 10 | 3743 |
| 12 | 4014 |
| 15 | 4361 |
| 20 | 4849 |
| 25 | 5237 |
| 30 | 5575 |
| 40 | 6128 |
| 60 | 6980 |
| 80 | 7676 |
| 100 | 8271 |
| 120 | 8797 |
| 140 | 9252 |
| 160 | 9665 |
| 180 | 10045 |
| 200 | 10390 |
| 220 | 10728 |
| 230 | 10877 |
| 240 | 11020 |
| 250 | 11159 |
