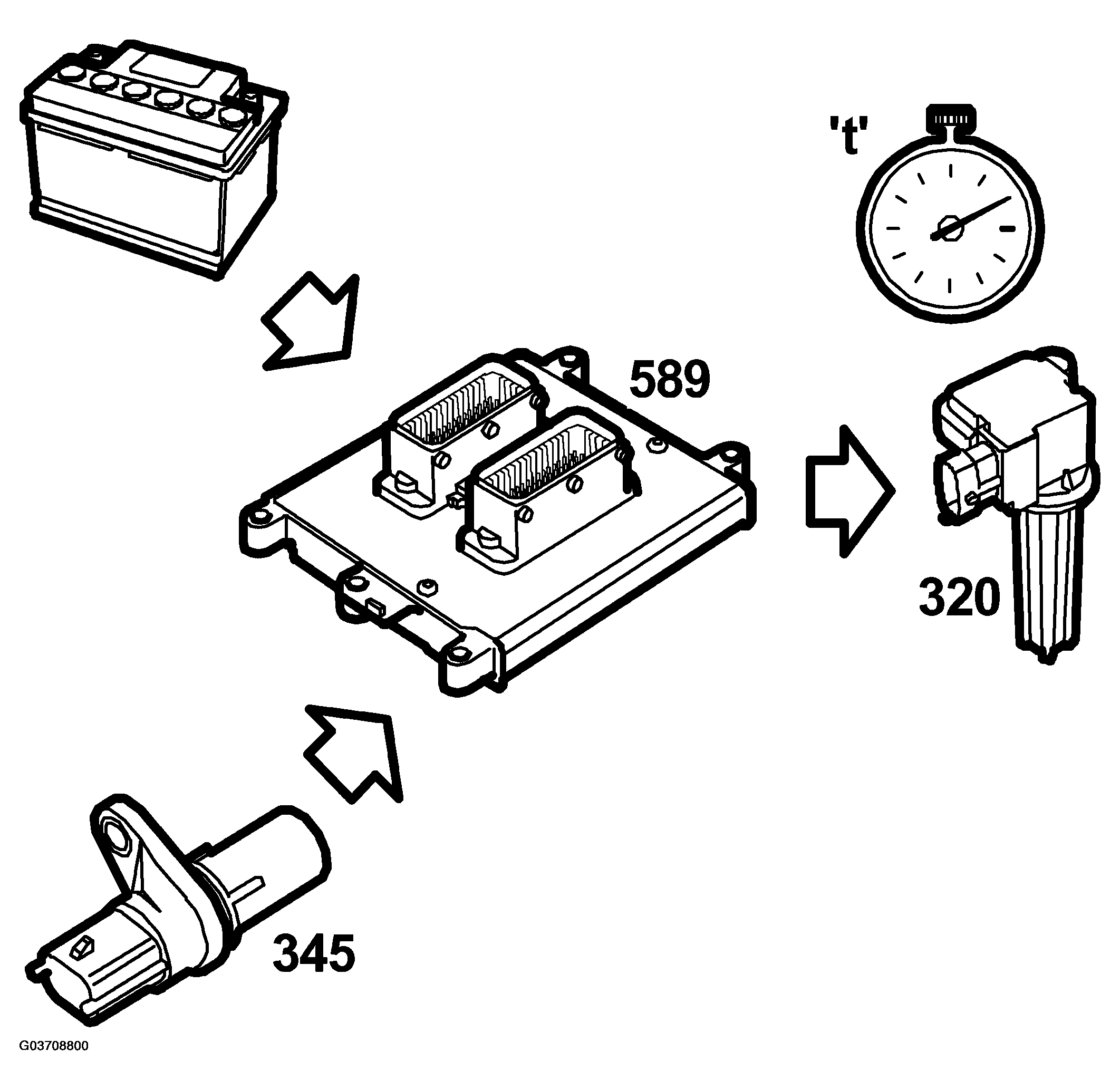

Charging time, general
The ignition coil charging time depends on the system voltage and engine speed. The objective is to obtain the correct energy/voltage in the spark irrespective of the battery voltage and engine speed.
The charging time is around 4 ms at 2000 RPM and normal system voltage.
