Pre-heated oxygen-sensor, front (592)

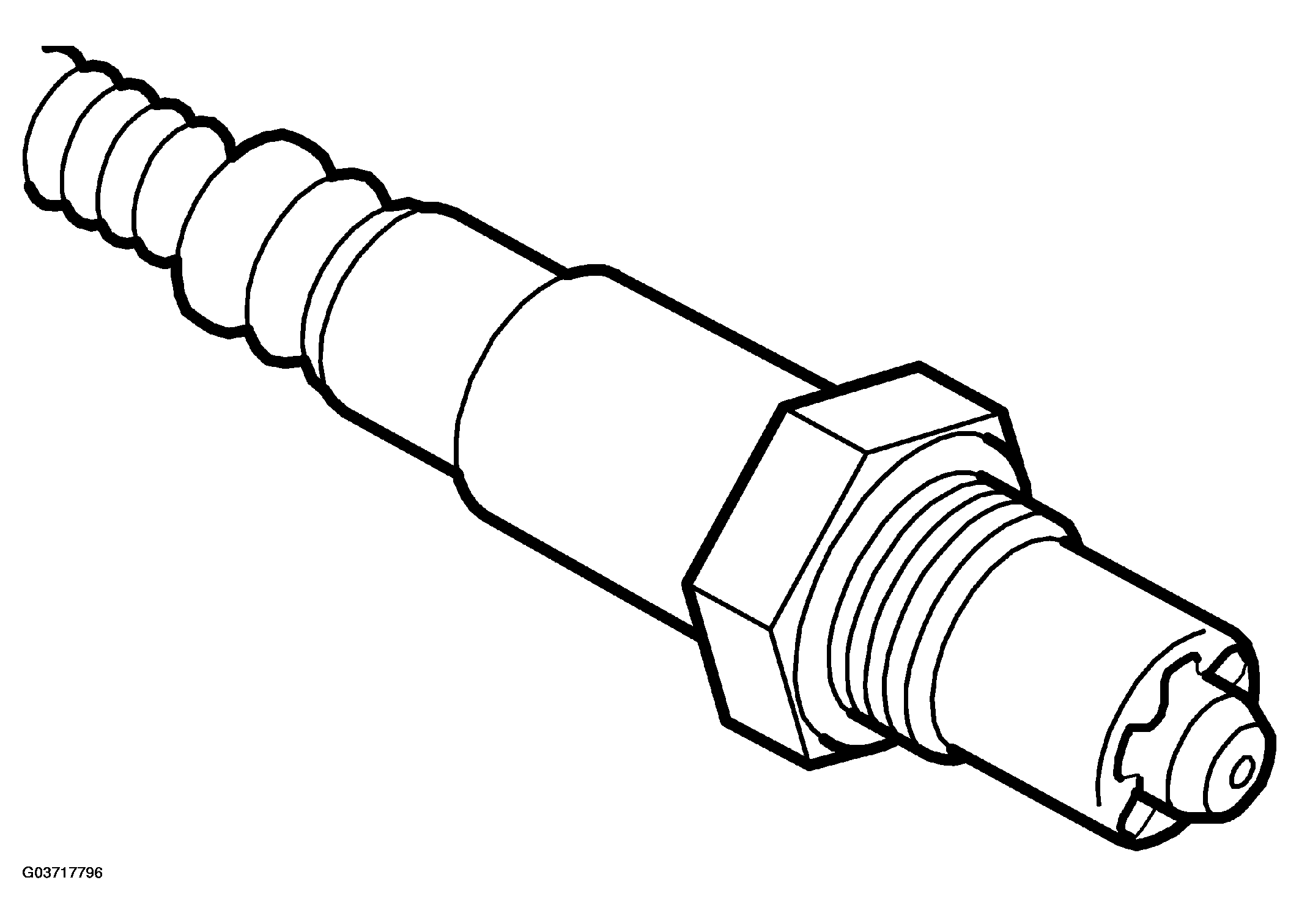

Fig 1: Identifying Pre-Heated Oxygen-Sensor (Front)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

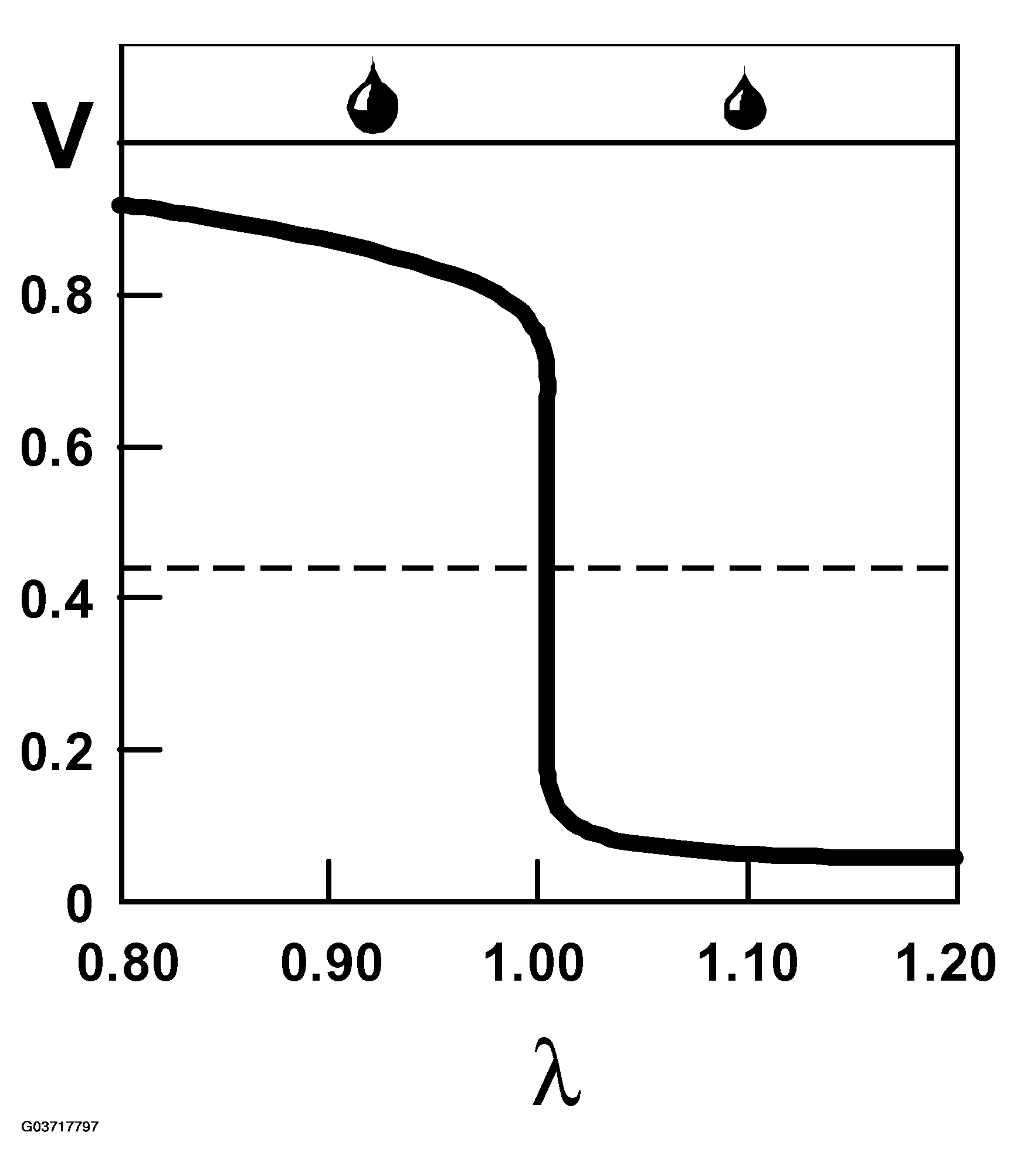

Fig 2: Identifying Graph (Pre-Heated Oxygen-Sensor)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - PRE-HEATED OXYGEN-SENSOR, FRONT (592)

Type		Bosch LSF 4.7 With electrical preheating
Power, preheating	W	approx. 7
Control range	V	0-1
Resistance at 20°C (68°F) pins 1- 2	Ohm	ca 9 (PTC)

Pins 3 and 4 are gold plated.

NOTE: The connector must not be treated with any sort of contact cleaner.
